Q.PEAK DUO ML-G10+ 395-415 Watt Solar Panel

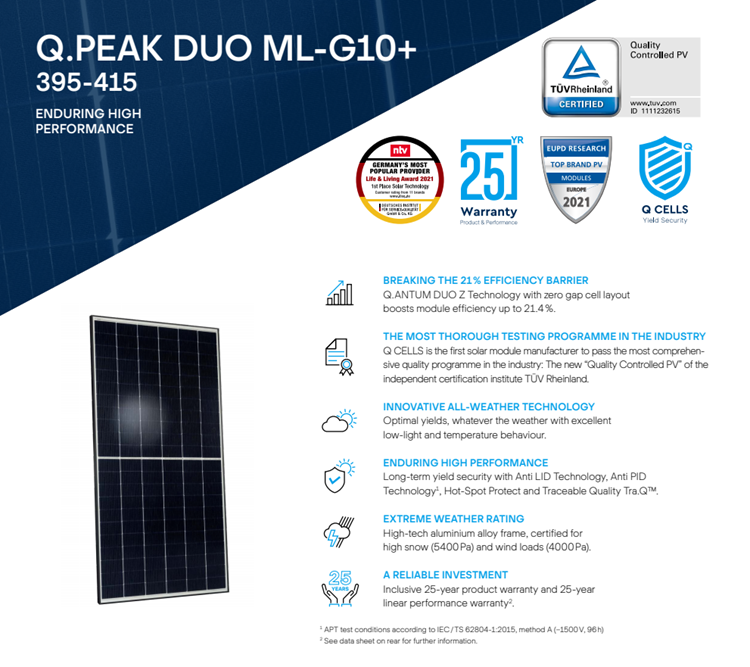

Q.PEAK DUO ML-G10+ 395-415 Watt - Enduring High Performance

Power Output: 395-415W | Q.ANTUM DUO Z Technology | TÜV Rheinland Quality Controlled PV | Top Brand PV Modules 2021

Breaking the 21% Efficiency Barrier:

• Q.ANTUM DUO Z Technology with Zero Gap Cell Layout - Boosts module efficiency up to 21.4% for maximum power output per surface area

The Most Thorough Testing Programme in the Industry:

• Q CELLS is the First Solar Module Manufacturer to Pass the Most Comprehensive Quality Programme - The new "Quality Controlled PV" of the independent certification institute TÜV Rheinland ensures superior quality and reliability

Innovative All-Weather Technology:

• Optimal Yields, Whatever the Weather - Excellent low-light and temperature behavior ensures consistent performance in all weather conditions

Enduring High Performance:

• Long-Term Yield Security - Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™ ensure reliable long-term performance

Extreme Weather Rating:

• High-Tech Aluminum Alloy Frame - Certified for high snow (5400Pa) and wind loads (4000Pa) for exceptional durability in extreme weather conditions

A Reliable Investment:

• Inclusive 25-Year Product Warranty and 25-Year Linear Performance Warranty - Industry-leading comprehensive warranty coverage for peace of mind

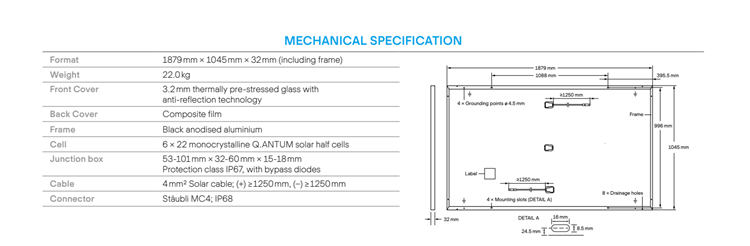

Technical Specifications:

• Power Range: 395W - 415W
• Module Efficiency: Up to 21.4%
• Cell Type: 6 × 22 monocrystalline Q.ANTUM solar half cells
• Module Format: 1879mm × 1045mm × 32mm (including frame)
• Weight: 22.0kg
• Front Cover: 3.2mm thermally pre-stressed glass with anti-reflection technology
• Back Cover: Composite film
• Frame: Black anodized aluminum
• Junction Box: 63-101mm × 32-60mm × 15-18mm, IP67, with bypass diodes
• Cable: 4mm² Solar cable, (+) ≥1250mm, (-) ≥1250mm
• Connector: Stäubli MC4, IP68
• Snow Load: 5400Pa
• Wind Load: 4000Pa

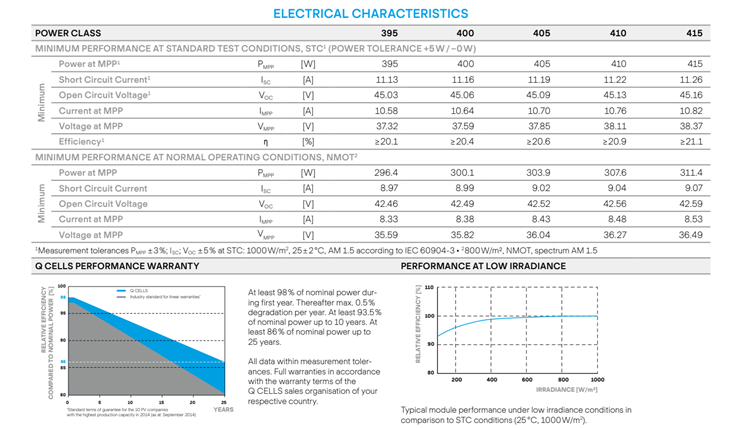

Electrical Characteristics (STC):

• Power at MPP (Pmpp): 395W - 415W
• Short-circuit Current (Isc): 11.13A - 11.28A
• Open Circuit Voltage (Voc): 45.03V - 45.16V
• Current at MPP (Impp): 10.58A - 10.82A
• Voltage at MPP (Vmpp): 37.32V - 38.37V
• Efficiency (η): ≥20.1% - ≥21.1%

Performance Warranty:

• At least 98% of nominal power during first year
• Thereafter max. 0.5% degradation per year
• At least 87.5% of nominal power up to 25 years

Certifications:

• TÜV Rheinland Quality Controlled PV
• Top Brand PV Modules 2021 (EuPD Research)
• IEC 61215, IEC 61730
• 25-year warranty certification

Ideal Applications:

• Residential rooftop installations
• Commercial solar projects
• Ground-mounted solar arrays
• High-efficiency solar installations
• All-weather environments

Benefits:

• Breaking 21% efficiency barrier (up to 21.4%)
• Most thorough testing programme (TÜV Rheinland Quality Controlled PV)
• Innovative all-weather technology
• Enduring high performance with Anti LID/PID
• Extreme weather rating (5400Pa snow / 4000Pa wind)
• 25-year product + 25-year performance warranty
• Top Brand PV Modules 2021
• Q.ANTUM DUO Z technology

The Q.PEAK DUO ML-G10+ 395-415 Watt Solar Panel delivers exceptional performance with up to 21.4% efficiency, Q.ANTUM DUO Z technology, TÜV Rheinland Quality Controlled PV certification, extreme weather rating, and comprehensive 25-year product + performance warranty, perfect for residential and commercial solar installations seeking top-tier quality and reliability.
