Q.PEAK DUO XL-G10.3/BFG 470-485 Bifacial Double Glass Module

Q.PEAK DUO XL-G10.3/BFG 470-485 Bifacial Double Glass Module

Power Output: 470-485W | Bifacial Double Glass | Q CELLS Top Brand PV Modules Europe 2020

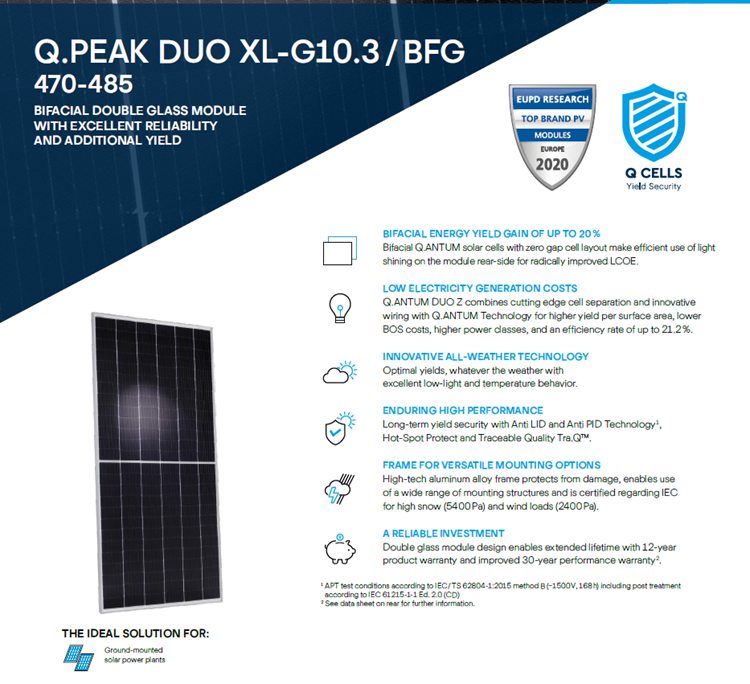

Bifacial Energy Yield Gain of Up to 20%:

• Bifacial Q.ANTUM DUO Z Solar Cells - With zero gap cell layout make efficient use of light shining on the module rear-side for radically improved LCOE (Levelized Cost of Energy)

Low Electricity Generation Costs:

• Q.ANTUM DUO Z Technology - Combines cutting-edge cell separation and innovative wiring with Q.ANTUM Technology for higher power per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 21.2%

Innovative All-Weather Technology:

• Optimal Yields, Whatever the Weather - Excellent low-light and temperature behavior ensures consistent performance in all conditions

Enduring High Performance:

• Long-Term Yield Security - Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™ ensure reliable long-term performance

Frame for Versatile Mounting Options:

• High-Tech Aluminum Alloy Frame - Protects from damage, enables use of a wide range of mounting structures and is certified regarding IEC for high snow (5400Pa) and wind loads (2400Pa)

A Reliable Investment:

• Double Glass Module Design - Enables extended lifetime with 12-year product warranty and improved 30-year performance warranty

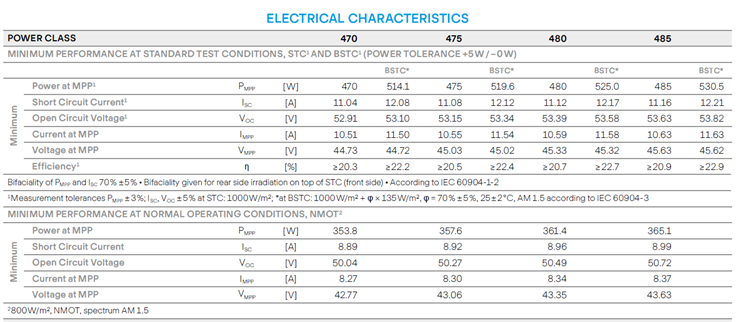

Technical Specifications:

• Power Range: 470W - 485W
• Module Efficiency: Up to 21.2%
• Cell Type: Bifacial Q.ANTUM DUO Z monocrystalline

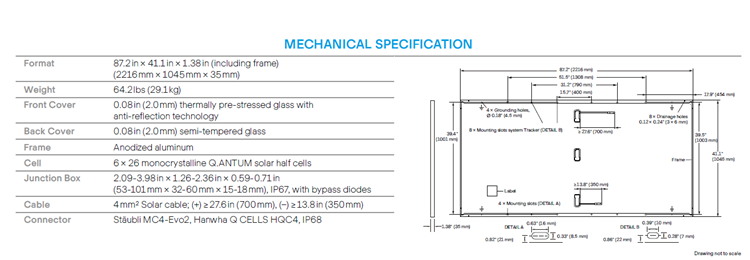

• Module Format: 87.2in × 41.1in × 1.38in (2216mm × 1045mm × 35mm)
• Weight: 64.2lbs (29.1kg)
• Front Cover: 0.08in (2.0mm) thermally pre-stressed glass with anti-reflection technology
• Back Cover: 0.08in (2.0mm) semi-tempered glass
• Frame: Anodized aluminum
• Cell: 6 × 26 monocrystalline Q.ANTUM solar half cells
• Junction Box: 2.09-3.38in × 1.26-2.36in × 0.59-0.71in (53-101mm × 32-60mm × 15-18mm), IP67 with bypass diodes
• Cable: 4mm² Solar cable, (+) ≥27.6in (700mm), (-) ≥13.8in (350mm)
• Connector: Stäubli MC4-Evo2, Huawei STHQII-H4, IP68
• Snow Load: 5400Pa
• Wind Load: 2400Pa
• Bifacial Gain: Up to 20%

Certifications:

• UL 61730, CE-compliant
• IEC 61215-1-1, IEC 61730-1/2
• IEC 60904-1-2
• Q CELLS Top Brand PV Modules Europe 2020

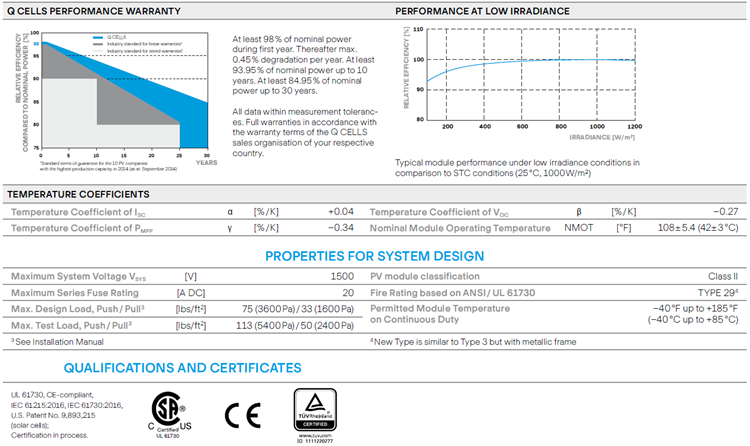

Warranty:

• Product Warranty: 12 years
• Performance Warranty: 30 years improved
• APT test conditions according to IEC 61215 (±5W/±3%)
• BSTC* and BSTC† given for rear irradiation of 0%
• At least 98% of nominal power during first year
• Thereafter max. 0.46% degradation per year
• At least 85.3% of nominal power up to 30 years

Ideal Applications:

• Ground-mounted solar power plants
• Utility-scale solar farms
• Large commercial & industrial installations
• Bifacial mounting systems
• High-efficiency solar projects

Benefits:

• Bifacial energy yield gain up to 20%
• High efficiency up to 21.2%
• Q.ANTUM DUO Z technology for lower LCOE
• Excellent all-weather performance
• Anti LID and Anti PID technology
• Hot-Spot Protect and Traceable Quality Tra.Q™
• High snow (5400Pa) and wind (2400Pa) load certified
• 12-year product + 30-year performance warranty
• Q CELLS Top Brand PV Modules Europe 2020

The Q.PEAK DUO XL-G10.3/BFG 470-485 Bifacial Double Glass Module delivers exceptional performance with up to 20% bifacial energy yield gain, 21.2% efficiency, Q.ANTUM DUO Z technology, and comprehensive 12-year product + 30-year performance warranty, perfect for utility-scale and large commercial solar installations.
