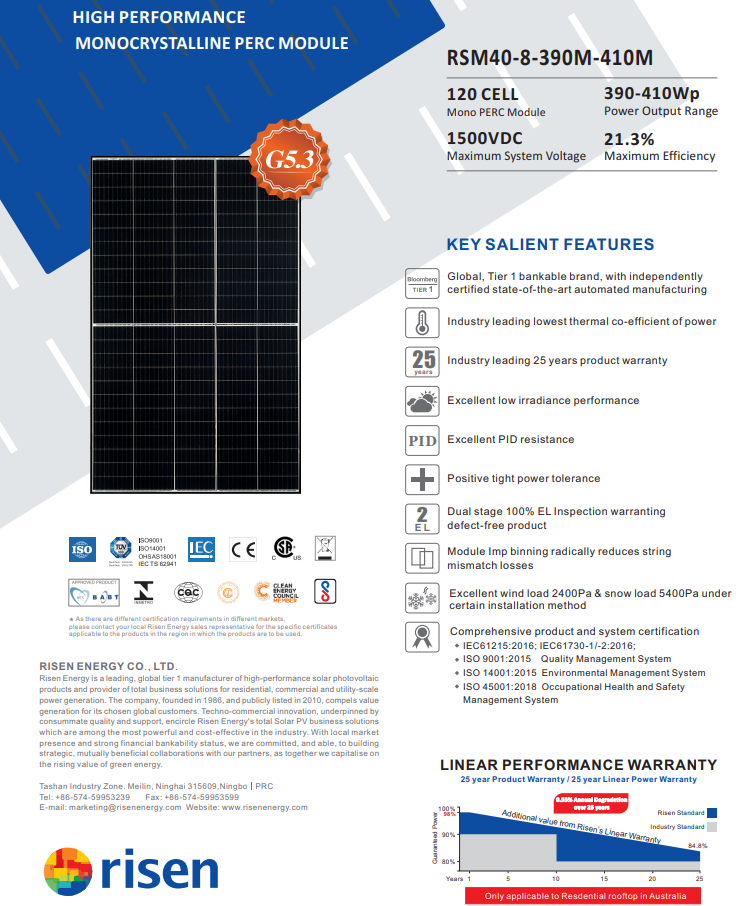

Risen Energy RSM40-8-390M-410M High Performance Monocrystalline PERC Module 390-410W

Risen Energy RSM40-8-390M-410M High Performance Monocrystalline PERC Module

Power Output: 390-410W | 120 Cells | Mono PERC | 1500VDC | 21.3% Maximum Efficiency

Key Salient Features:

• Global, Tier 1 Bankable Brand - With independently certified state-of-the-art automated manufacturing for superior quality and reliability
• Industry Leading Lowest Thermal Co-efficient of Power - Ensures optimal performance even in high-temperature conditions
• Industry Leading 25 Years Product Warranty - Comprehensive warranty coverage for peace of mind and long-term reliability
• Excellent Low Irradiance Performance - Superior energy generation even in low-light conditions such as cloudy days, early morning, or late evening
• Excellent PID Resistance - Potential Induced Degradation resistance ensures long-term performance stability
• Positive Tight Power Tolerance - Guaranteed minimum power output ensures you get at least the rated power
• Dual Stage 100% EL Inspection Warranting Defect-Free Product - Rigorous quality control with electroluminescence inspection ensures zero defects
• Module Imp Binning Radically Reduces String Mismatch Losses - Advanced current matching minimizes system losses for maximum efficiency
• Comprehensive Product and System Certification - IEC61215:2016, IEC61730-1/-2:2016, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018

Certified Environmental Durability:

• Wind Load 2400Pa & Snow Load 5400Pa - Certified for extreme weather conditions
• Excellent Wind Load 2400Pa & Snow Load 5400Pa Under Certain Installation Method - Superior mechanical resistance

Technical Specifications:

• Power Range: 390W - 410W
• Maximum Efficiency: 21.3%
• Cell Type: 120 Cell Mono PERC Module (5×12+5×12)
• Maximum System Voltage: 1500VDC
• Module Dimensions: 1754×1096×30mm
• Weight: 21kg
• Superstrate: High Transmission, Low Iron, Tempered ARC Glass
• Substrate: White Back-sheet
• Frame: Anodized Aluminium Alloy type 6005-2T6, Black
• J-Box: Potted, IP68, 1500VDC, 3 Schottky bypass diodes
• Cables: 4.0mm² (12AWG), Positive(+)350mm, Negative(-)350mm (Connector Included) or customized length
• Connector: Risen Twinsel PV-SY02 or MC4 EVO2, IP68
• Wind Load: 2400Pa
• Snow Load: 5400Pa
• PID resistant
• Product Warranty: 25 years
• Linear Performance Warranty: 25 years

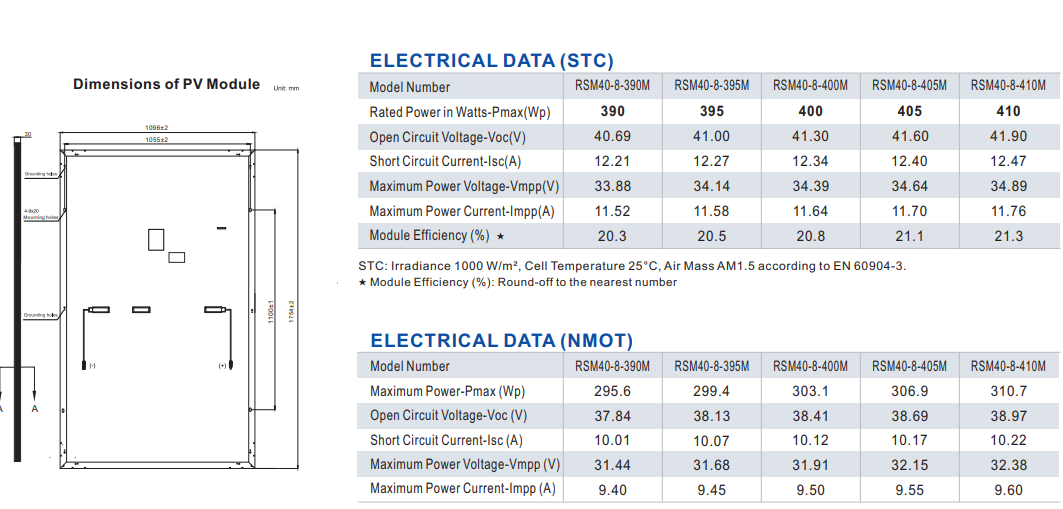

Electrical Data (STC):

• Rated Power: 390W - 410W
• Open Circuit Voltage (Voc): 40.69V - 41.90V
• Short Circuit Current (Isc): 12.21A - 12.47A
• Maximum Power Voltage (Vmpp): 33.88V - 34.89V
• Maximum Power Current (Impp): 11.52A - 11.76A
• Module Efficiency: 20.3% - 21.3%

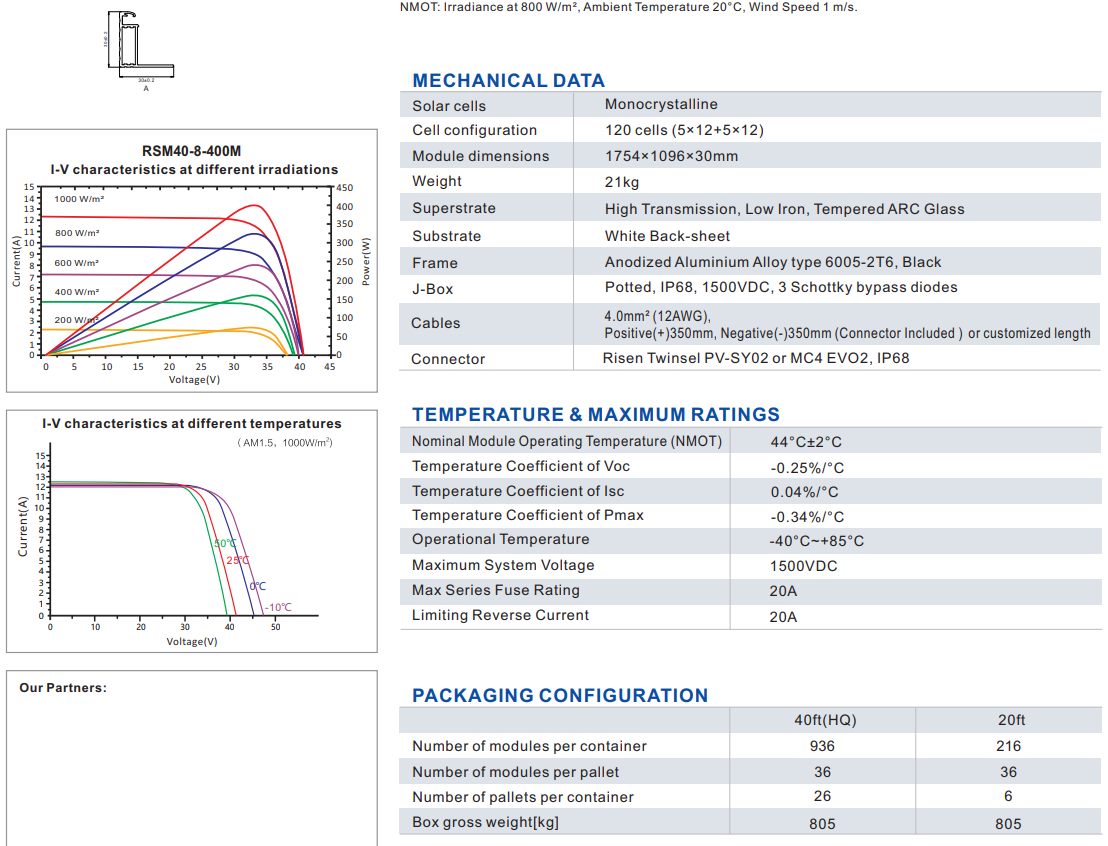

Temperature & Maximum Ratings:

• Nominal Module Operating Temperature (NMOT): 44°C±2°C
• Temperature Coefficient of Voc: -0.25%/°C
• Temperature Coefficient of Isc: 0.04%/°C
• Temperature Coefficient of Pmax: -0.34%/°C
• Operational Temperature: -40°C~+85°C
• Maximum System Voltage: 1500VDC
• Max Series Fuse Rating: 20A
• Limiting Reverse Current: 20A

Linear Performance Warranty:

• Additional value from Risen's Linear Warranty
• Industry Standard warranty
• Risen Standard Linear Warranty
• 25 years product warranty / 25 years linear power warranty

Certifications:

• ISO 9001:2015 - Quality Management System
• ISO 14001:2015 - Environmental Management System
• ISO 45001:2018 - Occupational Health and Safety
• IEC 61215:2016, IEC 61730-1/-2:2016
• IEC, CE, CSL certifications
• TÜV Rheinland certified
• Global Tier 1 Bankable Brand

Ideal Applications:

• Residential rooftop installations
• Commercial solar projects
• Ground-mounted solar arrays
• High-efficiency solar installations
• Extreme weather locations

Benefits:

• Global Tier 1 bankable brand
• Industry leading lowest thermal co-efficient
• 25 years product warranty
• Excellent low irradiance performance
• Excellent PID resistance
• Positive tight power tolerance
• 100% EL inspection for defect-free product
• Reduced string mismatch losses
• Certified environmental durability
• 2400Pa wind / 5400Pa snow load
• High efficiency (21.3%)
• Comprehensive certifications

The Risen Energy RSM40-8-390M-410M High Performance Monocrystalline PERC Module delivers exceptional performance with 21.3% efficiency, 1500VDC system voltage, industry-leading thermal co-efficient, 25-year product warranty, and comprehensive environmental certifications, perfect for residential and commercial solar installations seeking top-tier quality and reliability.
