Titan S RSM40-8-390M-415M High Performance Monocrystalline PERC Module 390-415W

Titan S RSM40-8-390M-415M High Performance Monocrystalline PERC Module

Power Output: 390-415W | 120 Cells | Mono PERC | 1500VDC | 21.6% Maximum Efficiency

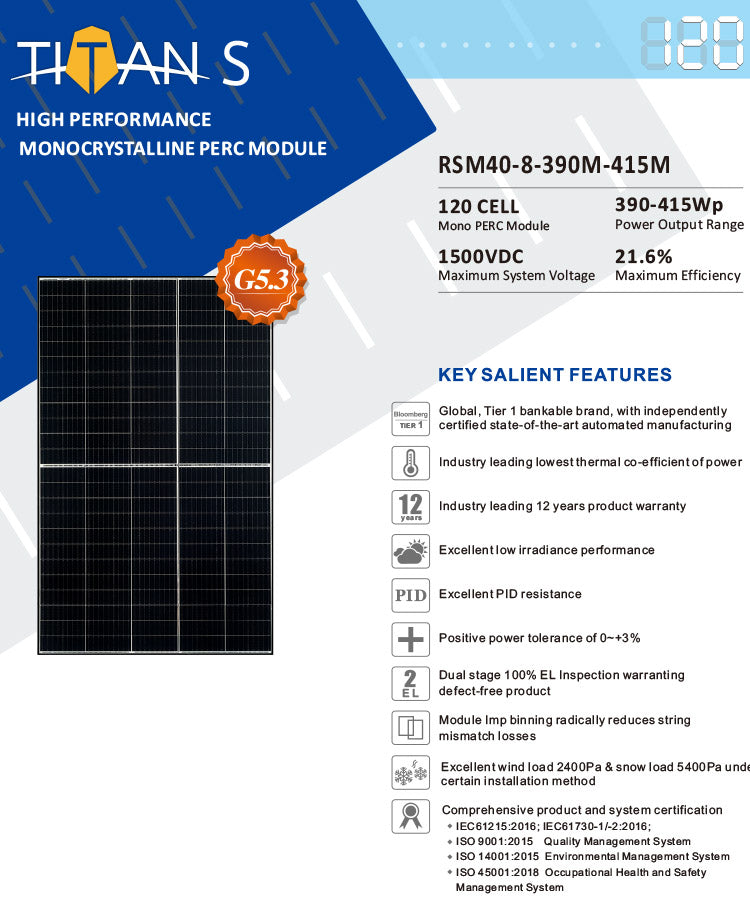

Key Salient Features:

• Global, Tier 1 Bankable Brand - With independently certified state-of-the-art automated manufacturing for superior quality and reliability
• Industry Leading Lowest Thermal Co-efficient of Power - Ensures optimal performance even in high-temperature conditions
• Industry Leading 12 Years Product Warranty - Comprehensive warranty coverage for peace of mind and long-term reliability
• Excellent Low Irradiance Performance - Superior energy generation even in low-light conditions such as cloudy days, early morning, or late evening
• Excellent PID Resistance - Potential Induced Degradation resistance ensures long-term performance stability
• Positive Power Tolerance of 0~+3% - Guaranteed minimum power output ensures you get at least the rated power, often more
• Dual Stage 100% EL Inspection Warranting Defect-Free Product - Rigorous quality control with electroluminescence inspection ensures zero defects
• Module Imp Binning Radically Reduces String Mismatch Losses - Advanced current matching minimizes system losses for maximum efficiency
• Excellent Wind Load 2400Pa & Snow Load 5400Pa Under Certain Installation Method - Superior mechanical resistance for extreme weather conditions

Technical Specifications:

• Power Range: 390W - 415W
• Maximum Efficiency: 21.6%
• Cell Type: 120 Cell Mono PERC Module (5×12+5×12)
• Maximum System Voltage: 1500VDC

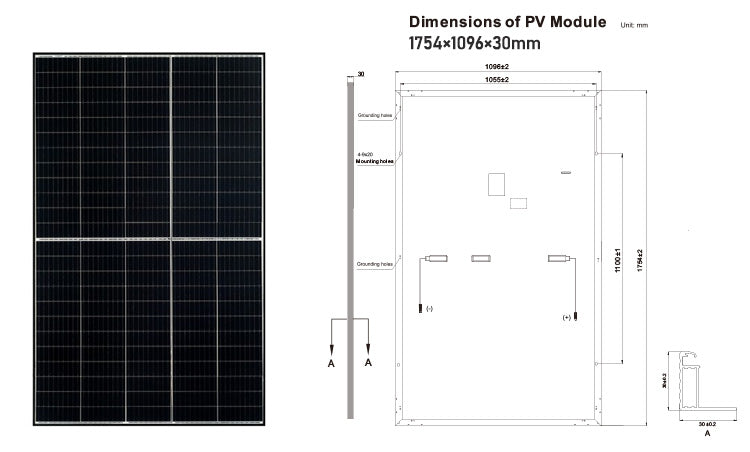

• Module Dimensions: 1754×1096×30mm
• Wind Load: 2400Pa
• Snow Load: 5400Pa
• PID resistant
• Product Warranty: 12 years
• Linear Performance Warranty: 12 years / 25 years

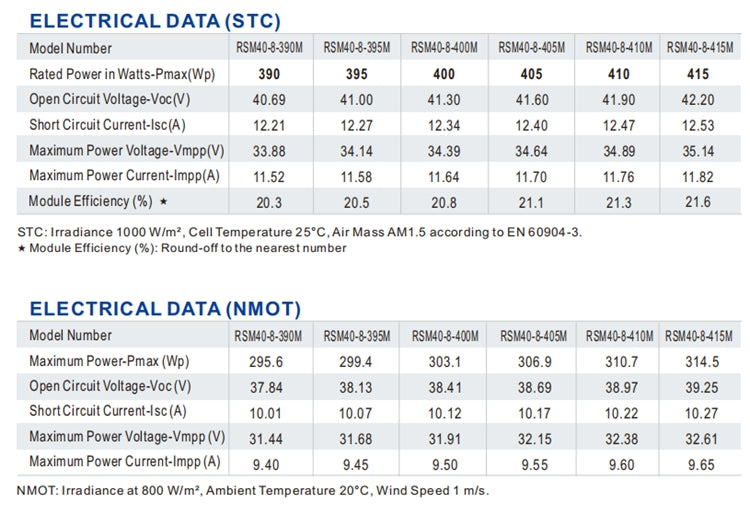

Electrical Data (STC):

• Rated Power: 390W - 415W
• Open Circuit Voltage (Voc): 40.69V - 42.20V
• Short Circuit Current (Isc): 12.21A - 12.53A
• Maximum Power Voltage (Vmpp): 33.88V - 35.14V
• Maximum Power Current (Impp): 11.52A - 11.82A
• Module Efficiency: 20.3% - 21.6%

Certifications:

• ISO 9001:2015 - Quality Management System
• ISO 14001:2015 - Environmental Management System
• ISO 45001:2018 - Occupational Health and Safety
• IEC 61215:2016, IEC 61730-1/-2:2016
• Global Tier 1 Bankable Brand

Ideal Applications:

• Residential rooftop installations
• Commercial solar projects
• Ground-mounted solar arrays
• High wind and snow load areas
• Extreme weather locations

Benefits:

• Global Tier 1 bankable brand
• Industry leading lowest thermal co-efficient
• 12 years product warranty
• Excellent low irradiance performance
• Excellent PID resistance
• Positive power tolerance (0~+3%)
• 100% EL inspection for defect-free product
• Reduced string mismatch losses
• 2400Pa wind / 5400Pa snow load
• High power output (390-415W)
• 21.6% maximum efficiency

The Titan S RSM40-8-390M-415M High Performance Monocrystalline PERC Module delivers exceptional performance with 21.6% efficiency, 1500VDC system voltage, industry-leading thermal co-efficient, 12-year product warranty, and comprehensive certifications, perfect for residential and commercial solar installations.
