Solar Flood Light 3000lm – PIR, Split Panel
Regular price
$134.99
per
Serious security light with zero running cost. This 3000-lumen solar flood light runs 50 SMD3030 LEDs from a 48Wh LiFePO4 battery, charged by a detachable 20W glass-laminated panel on a 5-metre lead so you can mount the lamp on...
- 100% Green Energy
- Built to Last
- Easy Installation
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Solar Flood Light 3000lm – PIR, Split Panel
Overview
Serious security light with zero running cost. This 3000-lumen solar flood light runs 50 SMD3030 LEDs from a 48Wh LiFePO4 battery, charged by a detachable 20W glass-laminated panel on a 5-metre lead so you can mount the lamp on a shed, wall or pole and park the panel in full sun. Four push-button modes cover everything from motion-only security to steady dusk-to-dawn lighting.
Key features
- Up to 3000 lumens from 50 SMD3030 LEDs.
- Split design: 20W monocrystalline glass panel (460 × 230mm) detaches and connects via 5m cable.
- 3.2V 15Ah / 48Wh LiFePO4 battery — about 2 nights on a full charge, ~10 hours to recharge.
- 4 modes: 10% + PIR boost, off + PIR boost, 6h at 40% then 10% + PIR, or steady 6h at 40% then 10% dim. PIR range 6–8m, 30-second hold.
- 4-level charge indicator and automatic dusk-to-dawn control (20 lux threshold).
- PC + ABS + aluminium body, IP65, -20°C to +65°C; 3-year factory warranty (battery 2 years).
Installation and operation

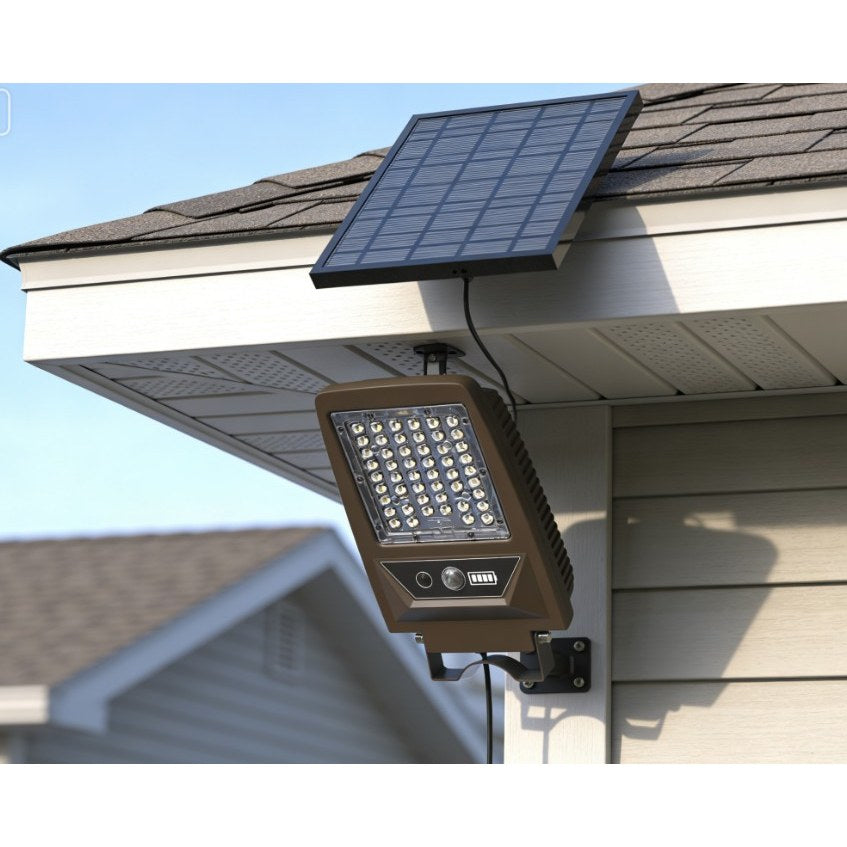

Fix the lamp to a wall, shed or pole with the supplied bracket, run the 5-metre cable to the glass-laminated panel in the sunniest spot available and press the single button to choose a mode. The panel's own light reading handles dusk-to-dawn switching, and the 4-level indicator flashes while charging and settles when full. LiFePO4 chemistry gives far more charge cycles than standard lithium cells and stays stable in summer heat.
Specifications
| Solar panel | 5V 20W monocrystalline, glass laminated, 460 × 230mm |
|---|---|
| Battery | LiFePO4 3.2V 15Ah / 48Wh |
| LED | 50 × SMD3030, max 3000lm, single colour |
| Charging time | About 10 hours |
| Lighting time | About 2 nights (fully charged) |
| Lighting modes | M1 10% + PIR; M2 off + PIR; M3 6h 40% + 10% dim + PIR; M4 steady 6h 40% + 10% dim |
| Sensor | PIR 6–8m, 30s delay; dusk-to-dawn 20 lux |
| Mounting | Split design, panel detachable, 5m wire |
| Lamp size | 266 × 180 × 66mm |
| Material | PC + ABS + aluminium |
| IP rating | IP65 |
| Working temperature | -20°C to +65°C |
| Warranty | 3 years (battery 2 years) |
Ideal for
Sheds, barns, driveways, workshop yards, boat sheds and rural gateways — anywhere you want bright, motion-triggered security light without running mains cable.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
