Solar Power System for Sign Lights – 40W Panel, 1 Head
Request a quote
A compact aluminium-profile solar power system that feeds one or two 288 mm LED lamp heads for signs and billboards. The rotatable glass-laminated panel, lithium battery pack and controller sit in one anodised profile; the lamp...
- 100% Green Energy
- Built to Last
- Easy Installation
Project & commercial product – pricing on application. Tell us the quantity, site and pole height; we reply within 1 business day with a delivered price to your address.
Request a Quoteor email info@evieko.com · +61 404 312 969
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Solar Power System for Sign Lights – 40W Panel, 1 Head
Overview

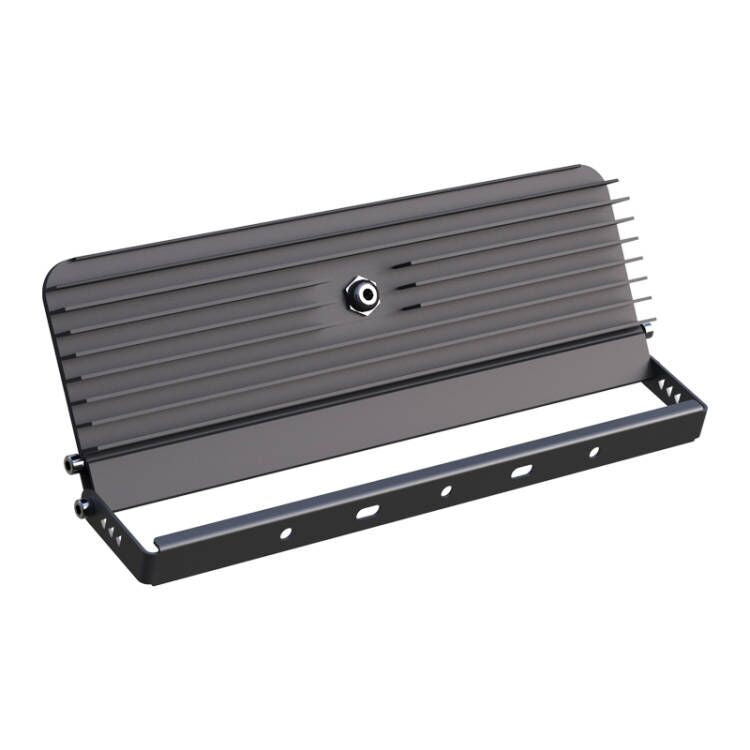

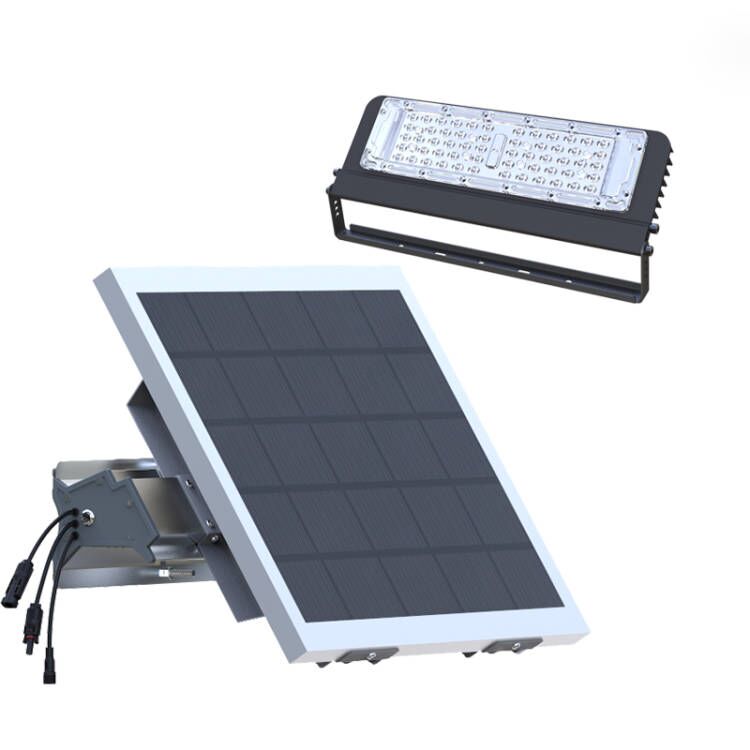

A compact aluminium-profile solar power system that feeds one or two 288 mm LED lamp heads for signs and billboards. The rotatable glass-laminated panel, lithium battery pack and controller sit in one anodised profile; the lamp heads connect with a 5 m cable. Runs 5 hours at full brightness, then 25% until dawn, for 3–5 nights per charge.
Key features
- Aluminium alloy housing, never fades
- Battery display screen
- Rotatable solar panel
- Easy installation
Options
EV-SG-103 – 40W panel, 1 lamp head
| Solar panel | 40W, 350 × 540 × 25 mm, rotatable, aluminium-framed glass laminate |
|---|---|
| LED | 30W, 1 lamp head, 70° × 150° beam, 3000lm, 6000K |
| Battery | Lithium 153.92Wh |
| Power system size | 144 × 140 × 455 mm aluminium profile |
Specifications
| Charging time | 5–6 hours in full sun |
|---|---|
| Lamp head | 288 mm profile, 5 m standard cable (longer cables on request) |
| Material | Aluminium alloy, ABS + PC |
| IP rating | IP65 |
| Working temperature | -25°C to 65°C |
| Working mode | 5 h full brightness, then 25% dim until dawn |
| Light-control threshold | 20 lux |
| Lighting time | 3–5 nights after full charge |
| Mounting | Fixed with screws |
| Battery display | Full charge-level display |
| Certificates | CE, RoHS, FCC; factory ISO 9001:2015 |
| Warranty | 3 years |
In the box
Lamp body 1 pc, screws 1 set, wall anchors 1 set.
Ideal for
Large billboard lighting (suggested sizes: 18 × 6 m, 12 × 4 m, 12 × 3 m), home solar lighting, farm lighting.
Specifications taken from the manufacturer's technical datasheet; EVIEKO model EV-SG-103.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
