Solar Road Stud Heavy-Duty – 30t Load
Regular price
$48.99
per
Pack:
Single
Built for live traffic. This die-cast aluminium road stud withstands more than 30 tonnes of static load and keeps flashing for up to 15 days on a charge, with LEDs visible from over a kilometre. The anti-UV, anti-yellowing PC l...
- 100% Green Energy
- Built to Last
- Easy Installation
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Solar Road Stud Heavy-Duty – 30t Load
Overview

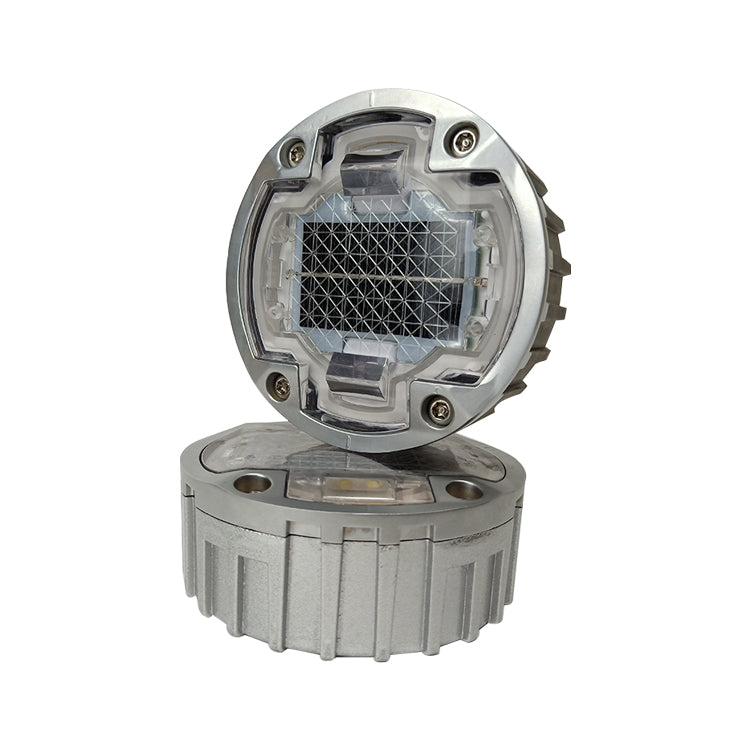

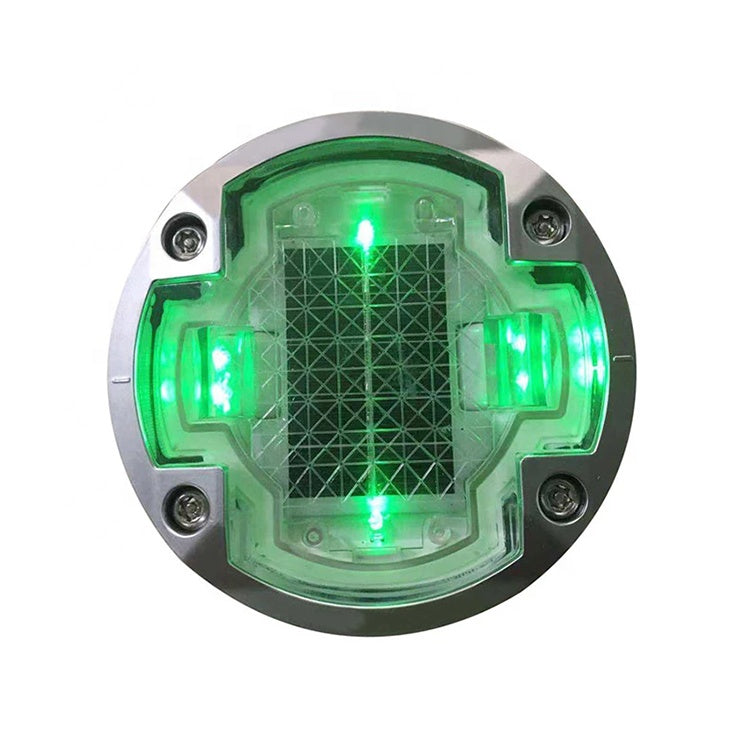

Built for live traffic. This die-cast aluminium road stud withstands more than 30 tonnes of static load and keeps flashing for up to 15 days on a charge, with LEDs visible from over a kilometre. The anti-UV, anti-yellowing PC lens stays clear for years, and the whole unit is rated IP68 and -20°C to +75°C for highways in any climate.

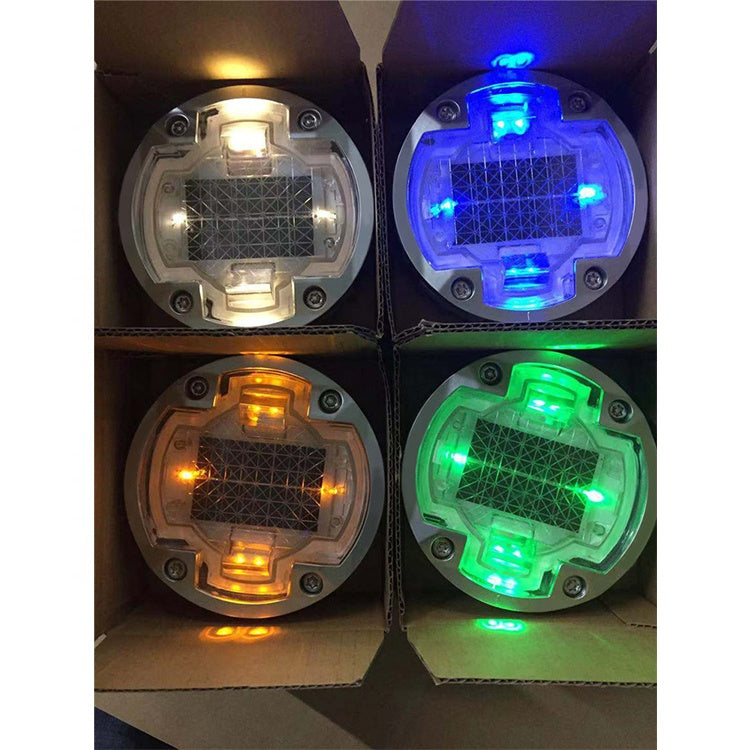

Available in 1, 4 and 8 packs — multi-packs cut the per-unit shipping cost.
Key features
- Static compression resistance greater than 30 tonnes; IP68 sealed.

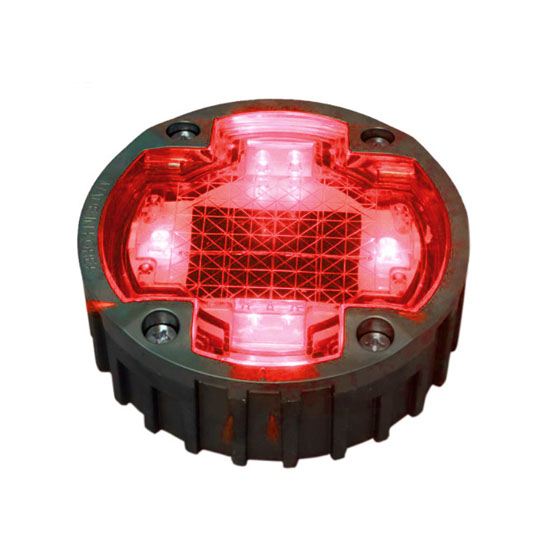

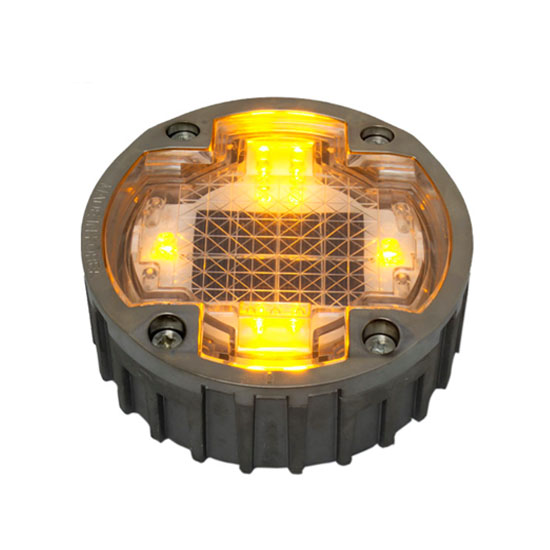

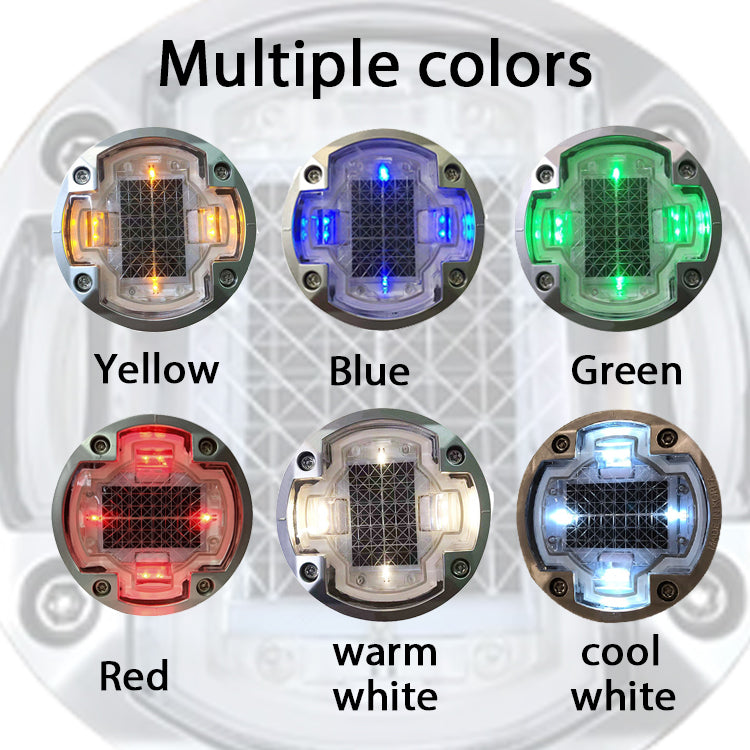

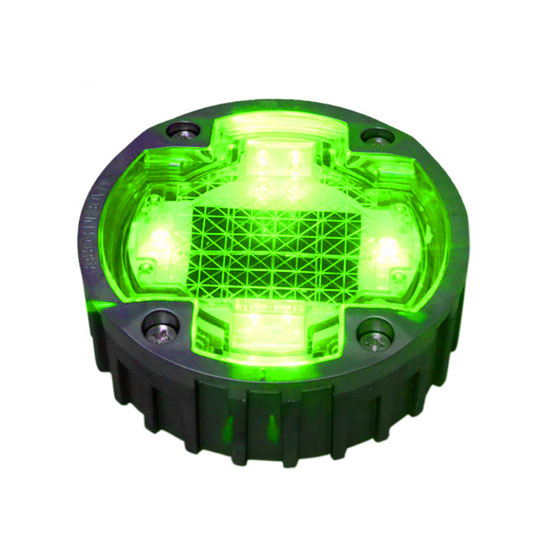

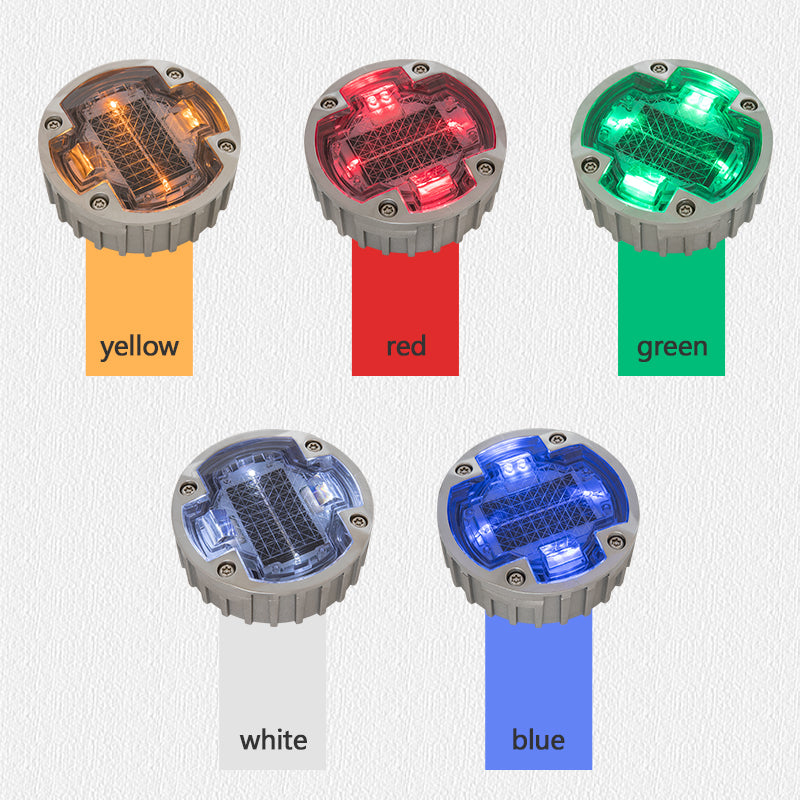

- 6, 8 or 10 super-bright 5mm LEDs in white, yellow, red, green or blue; visible >1000m.
- Flash (2Hz) or constant mode; 15 days flashing or 3–5 nights constant per charge.
- 0.44W monocrystalline panel with 1.2V 1200mAh Ni-MH battery; light control at 400–500 lux.

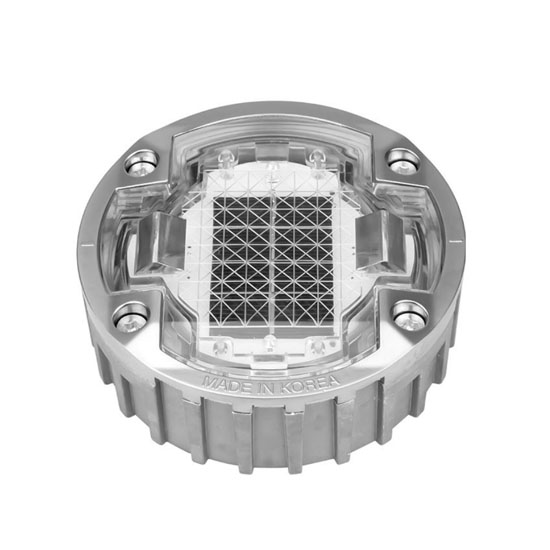

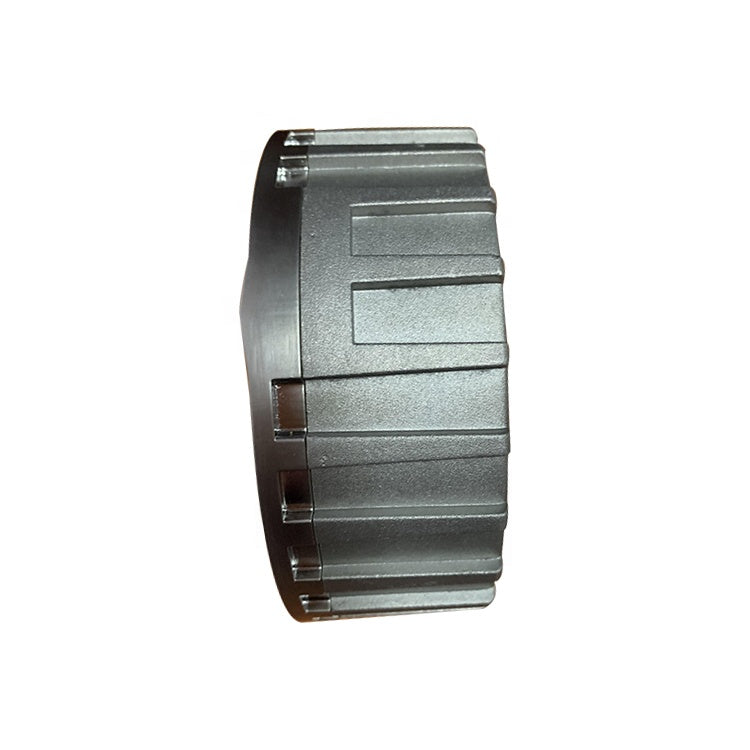

- Die-cast aluminium shell with imported anti-UV PC lens.
- 3-year service life; -20°C to +75°C.
Installation and operation

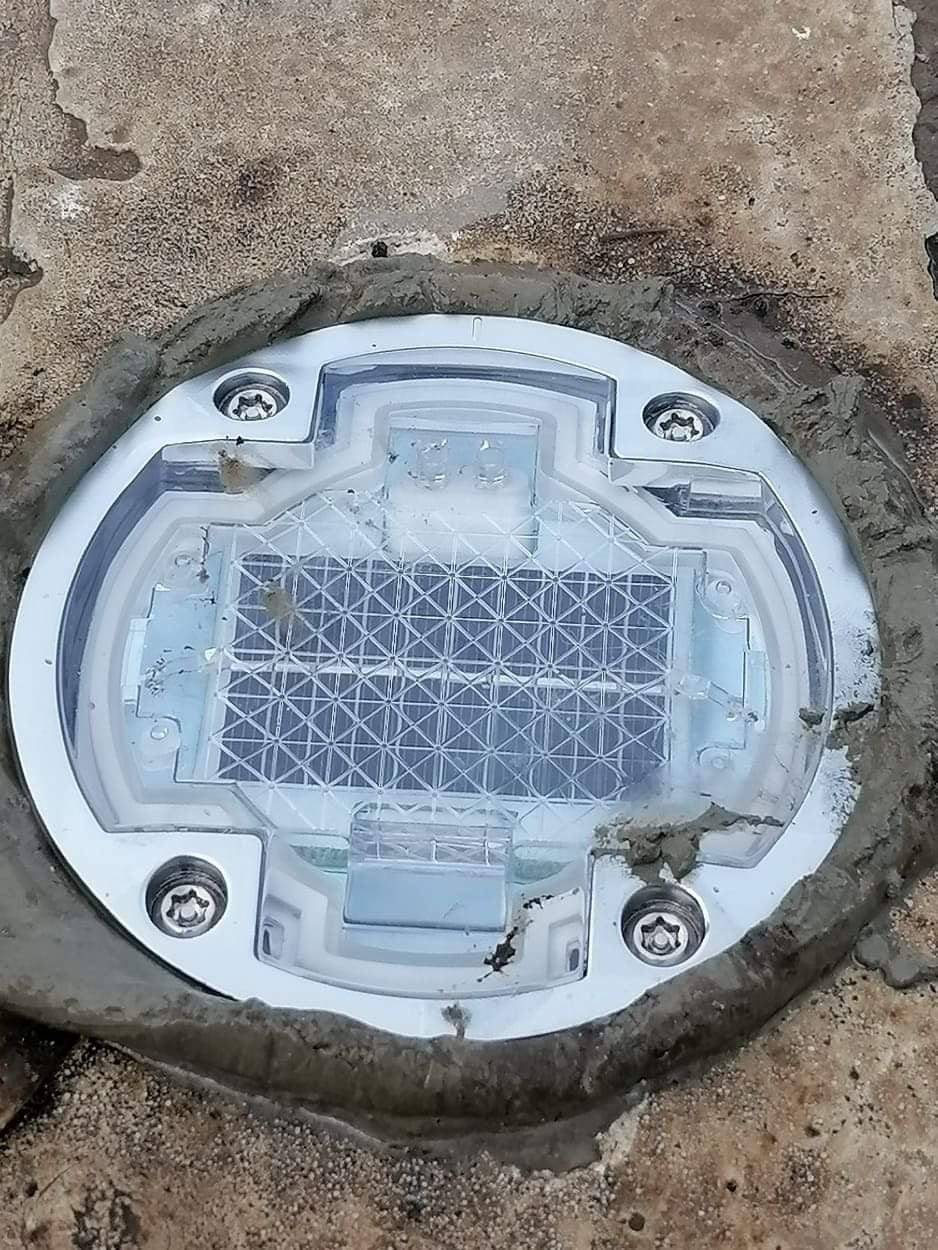

Bond or bolt the stud to the carriageway following standard road-marking practice; the low die-cast body is engineered to take repeated heavy-vehicle loads without damage. The panel charges the battery by day and the light control switches the LEDs on when ambient light falls to 400–500 lux. Flash mode gives fifteen days of operation per charge and is visible from more than a kilometre, while constant mode suits pedestrian areas and junctions.
Specifications
| Solar panel | 0.44W monocrystalline silicon |
|---|---|
| Battery | 1.2V 1200mAh Ni-MH |
| LED | 6 / 8 / 10 × 5mm super-bright; white, yellow, red, green or blue |
| Visual distance | >1000m |
| Lighting time | Constant 3–5 nights; flash mode 15 days |
| Flash frequency | 2Hz (0.25s on / 0.25s off) |
| Light control | 400–500 lux |
| Material | Die-cast aluminium shell + anti-UV PC lens |
| Load rating | Static compression >30 tonnes |
| IP rating | IP68 |
| Working temperature | -20°C to +75°C |
| Service life | 3 years |
Variants & SKUs
- Single
EV-RS-101 - 4-pack
EV-RS-101-4 - 8-pack
EV-RS-101-8
Ideal for
Highways, tunnels, roundabouts, pedestrian crossings, port and airport roads, and any carriageway carrying heavy vehicles.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
