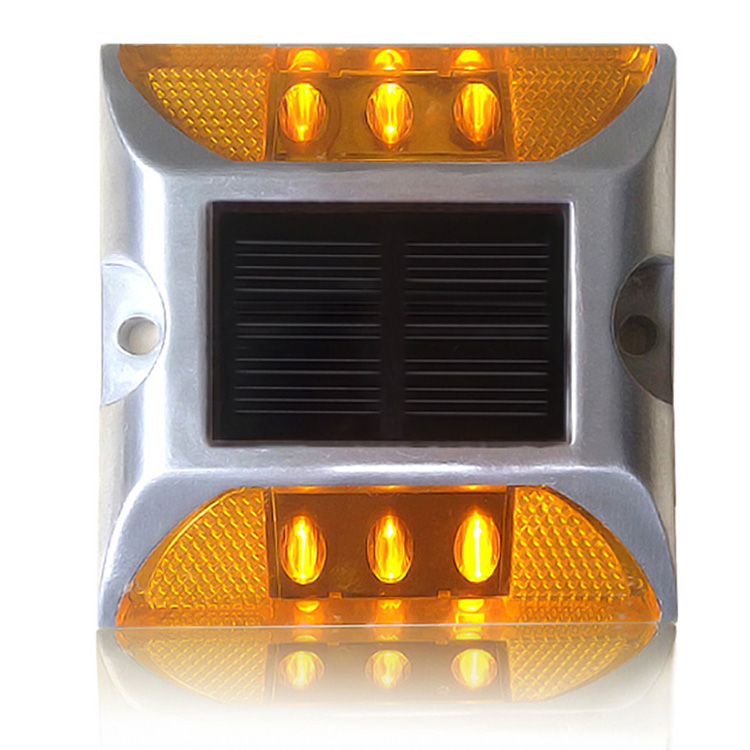

Solar Road Stud Square – Aluminium
Regular price
$25.99
per
Pack:
Single

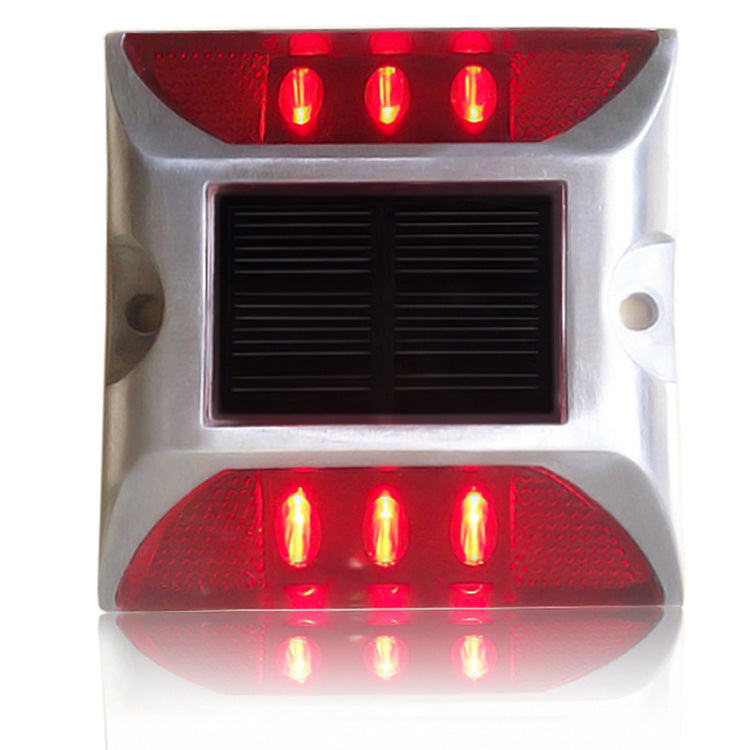

A square-profile aluminium road stud that marks lanes, edges and driveways with six bright LEDs visible from 500 metres. It charges from a 0.2W panel, runs 7–10 days per charge in steady or flashing mode, and is sealed to IP68 ...
- 100% Green Energy
- Built to Last
- Easy Installation
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Solar Road Stud Square – Aluminium
Overview
A square-profile aluminium road stud that marks lanes, edges and driveways with six bright LEDs visible from 500 metres. It charges from a 0.2W panel, runs 7–10 days per charge in steady or flashing mode, and is sealed to IP68 so it shrugs off rain, pressure washing and traffic.
Available in 1, 4 and 8 packs — multi-packs cut the per-unit shipping cost.
Key features

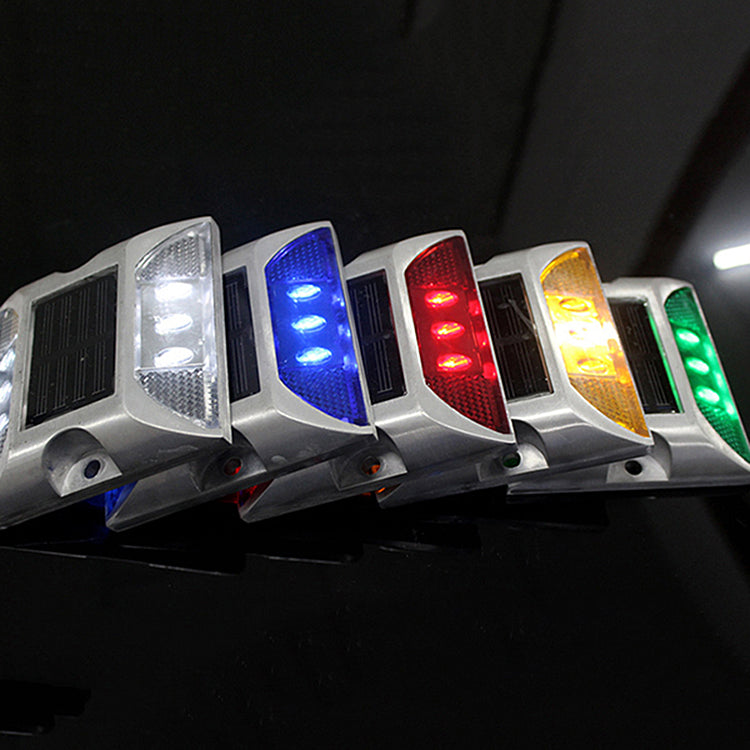

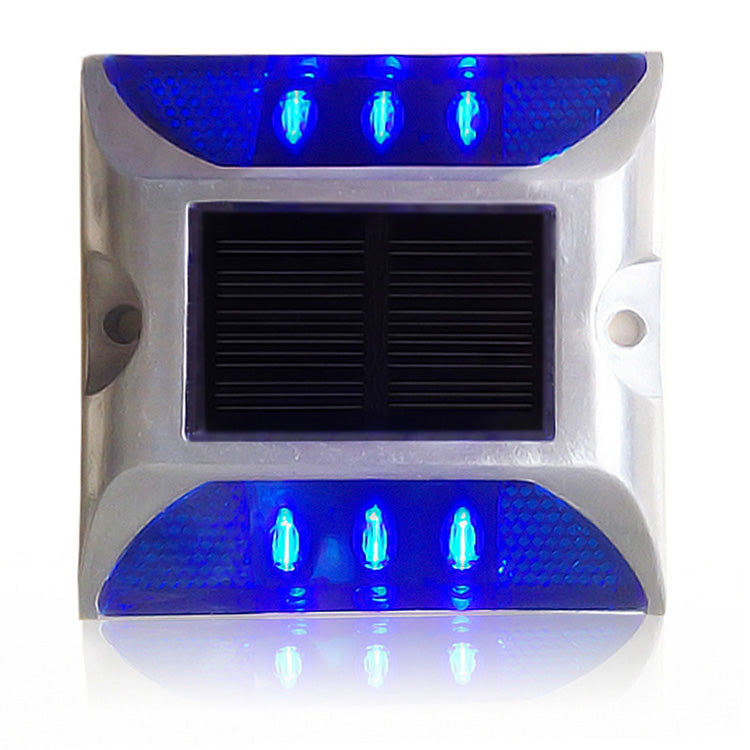

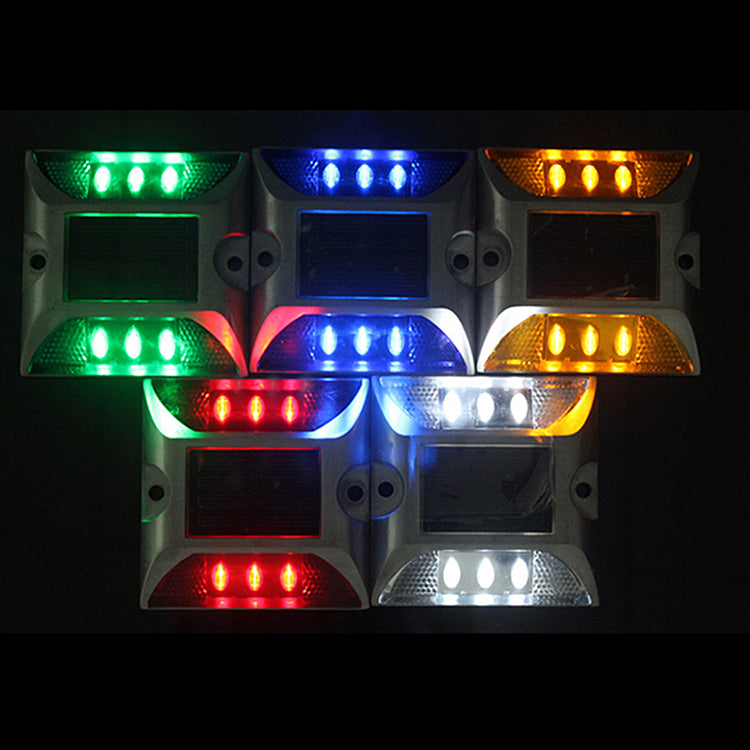

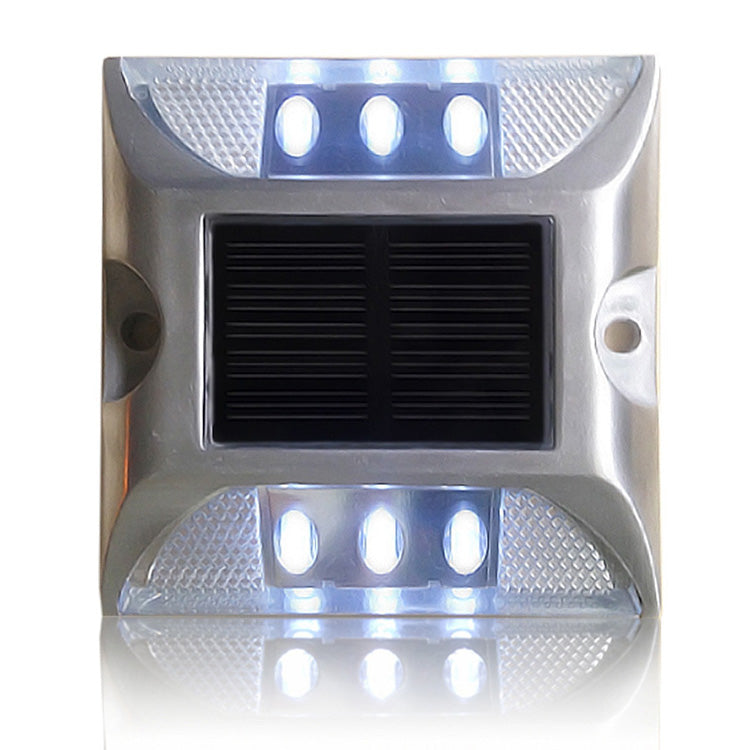

- 6 LEDs in red, green, blue, yellow or white, 620–650nm; visible >500m.

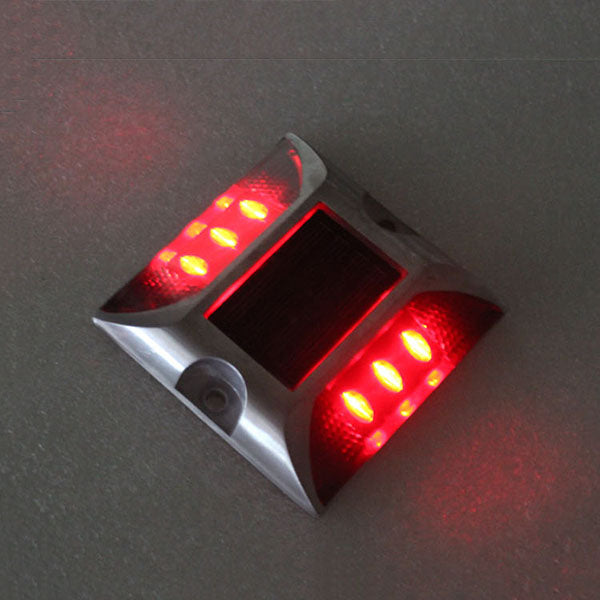

- Steady or flashing (120 times/min) at night under photocell control.
- 0.2W solar panel recharges the 800mAh Ni-MH battery in 6–8 hours.
- 7–10 days of operation per full charge.
- PC + aluminium shell, IP68 waterproof.
- -25°C to 60°C; 12-month warranty.
Installation and operation

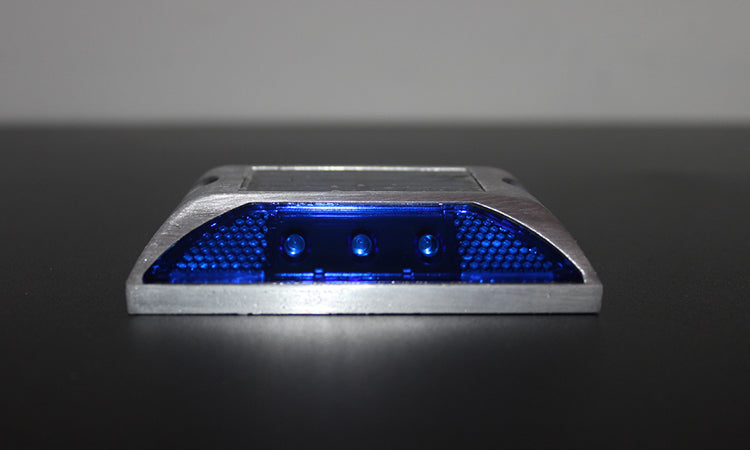

Fix the stud to the road or driveway surface with adhesive or anchor bolts and it is ready to go. The panel in the top charges the battery in daylight, the photocell switches the LEDs on at dusk and the unit runs 7–10 days per charge — so a week of poor weather makes no difference. The square profile suits lane lines and kerb edges. Choose the LED colour to match local marking conventions.
Specifications
| Shape | Square |
|---|---|
| Solar panel | 0.2W |
| LED | 6 LEDs, RGBYW, 620–650nm |
| Battery | Ni-MH 800mAh |
| Charging time | 6–8 hours |
| Lighting time | 7–10 days |
| Flash frequency | 120 times/min, visible >500m |
| Sensor | Photocell |
| Lighting mode | Steady or flashing at night |

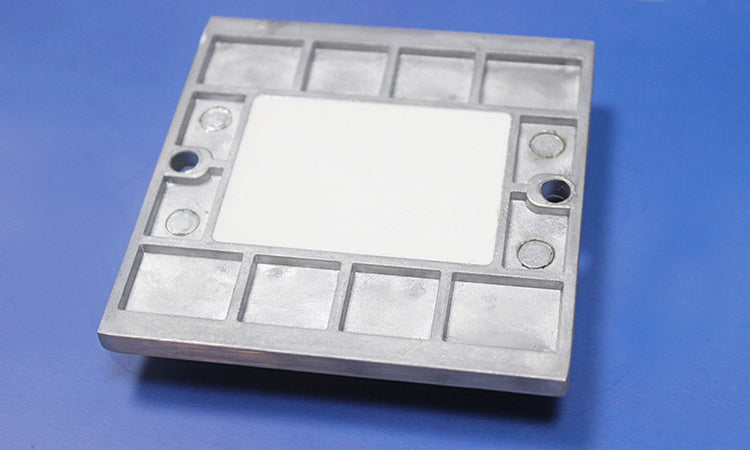

| Material | PC + aluminium |
| IP rating | IP68 |
| Working temperature | -25°C to 60°C |
| Warranty | 12 months |
Variants & SKUs
- Single
EV-RS-103 - 4-pack
EV-RS-103-4 - 8-pack
EV-RS-103-8
Ideal for
Road lane markings, driveway edges, car park aisles, cycle paths, marina walkways and private estate roads.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
