Solar Sign Light Kit 20W – Single Lamp Head
Regular price
$224.99
per
A split solar sign-lighting kit: a monocrystalline tempered-glass panel, a lithium battery and controller module, and adjustable die-cast aluminium LED lamp heads with a 150° × 80° optical lens. Everything mounts on adjustable ...
- 100% Green Energy
- Built to Last
- Easy Installation
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Solar Sign Light Kit 20W – Single Lamp Head
Overview
A split solar sign-lighting kit: a monocrystalline tempered-glass panel, a lithium battery and controller module, and adjustable die-cast aluminium LED lamp heads with a 150° × 80° optical lens. Everything mounts on adjustable brackets so the panel faces the sun and the heads face the sign.
Key features
- Monocrystalline solar panel, high-efficiency output

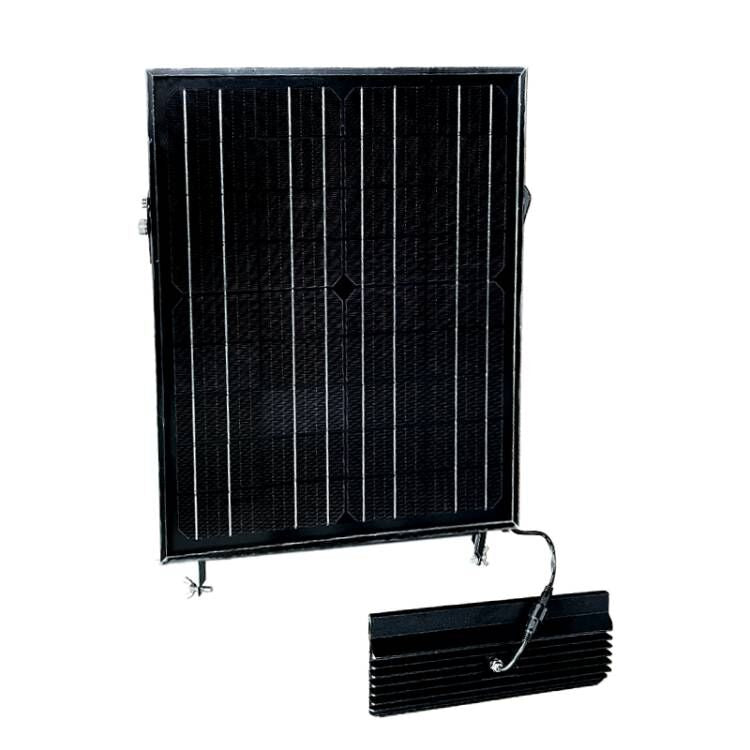

- Replaceable LiFePO4 battery and controller module
- Die-cast aluminium housing
- Optical lens with 150° × 80° beam
- Adjustable mounting bracket for panel and lamp
- Intelligent day/night controller with overcharge / over-discharge protection
- Each module designed independently for easy maintenance
Options
EV-SG-106 – 20W kit
| Solar panel | 28W monocrystalline, tempered glass |
|---|---|
| LED | 56 LEDs (>50,000 h), 1 adjustable lamp head, 20W peak output, 210 lm/W, 6000K |
| Battery | Li-ion 76.96Wh |
| Lamp size | 14.5 × 19 × 3 cm |
| Solar panel size | 35 × 40 × 4.8 cm |
| Packing | 40 × 48 × 20 cm, 6.2 kg |
Specifications
| Charging time | 6–8 hours in bright sunshine (MPPT) |
|---|---|
| Material | Aluminium alloy |
| Working temperature | -25°C to 65°C |
| Lighting time | 3–5 nights after full charge |
| Working mode | First 5 h full brightness, then 25% dim with motion sensor (other modes can be set at production) |
| Intelligent power management | Yes |
| Light-control threshold | 20 lux |
| Beam angle | 150° × 80° optical lens |
| IP / IK rating | IP65 / IK08 |
| Certificates | CE, RoHS, FCC; factory ISO 9001:2015 |
| Warranty | 3 years |
In the box
Lamp body 1 set, screws 1 set, bracket 1 set, solar panel 1 pc.
Ideal for

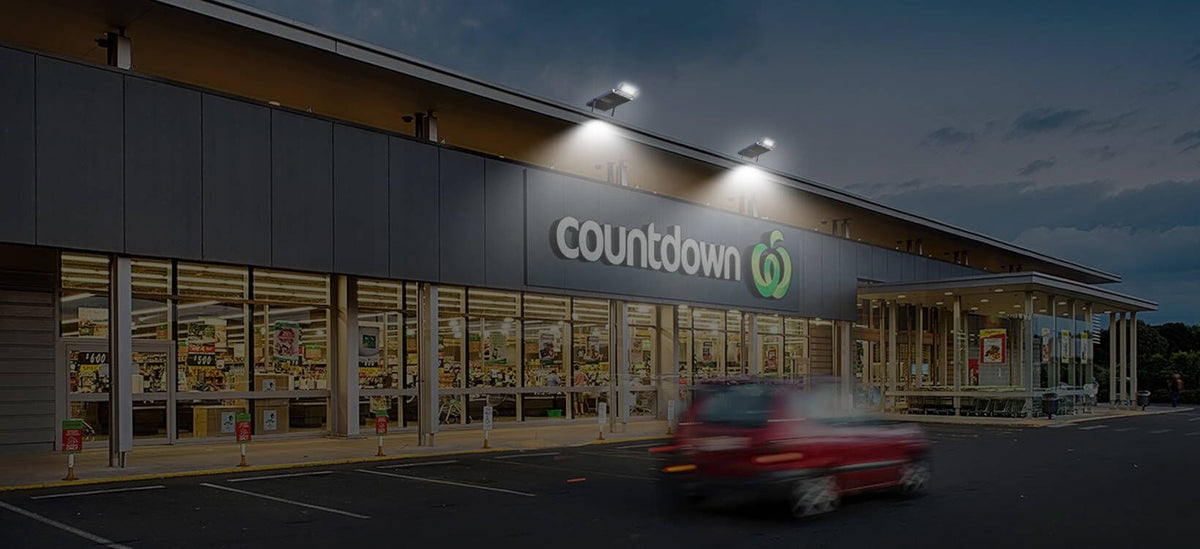

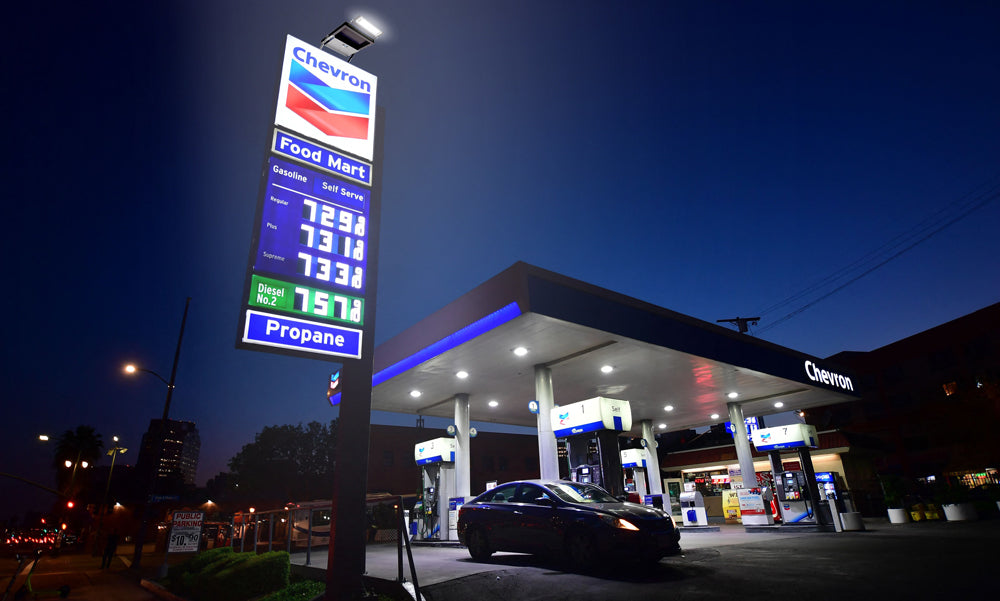

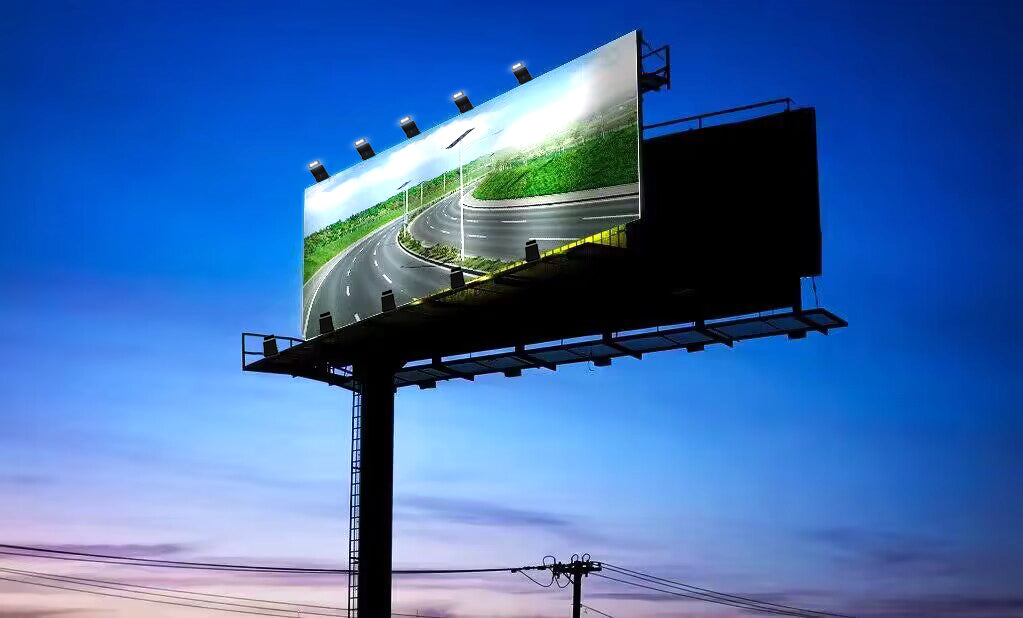

Commercial billboards and sign lighting (suggested sign sizes: 20W kit 6 × 4 m, 40W kit 12 × 3 m, 90W kit 18 × 6 m).
Specifications taken from the manufacturer's technical datasheet; EVIEKO model EV-SG-106.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
