PIR Solar Street Light 40W – LiFePO4
Request a quote
An all-in-one solar street light: Cree LEDs, a monocrystalline tempered-glass panel and a drawer-mounted LiFePO4 battery in a 100% anodised aluminium unibody. A smart remote sets timed or PIR modes before installation; the rota...
- 100% Green Energy
- Built to Last
- Easy Installation
Project & commercial product – pricing on application. Tell us the quantity, site and pole height; we reply within 1 business day with a delivered price to your address.
Request a Quoteor email info@evieko.com · +61 404 312 969
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
PIR Solar Street Light 40W – LiFePO4
Overview

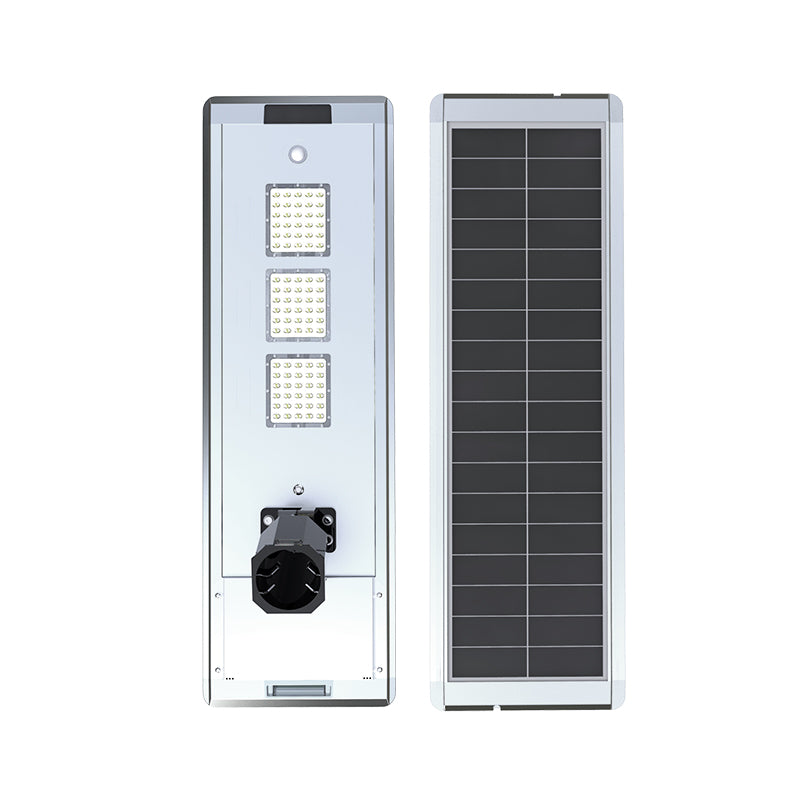

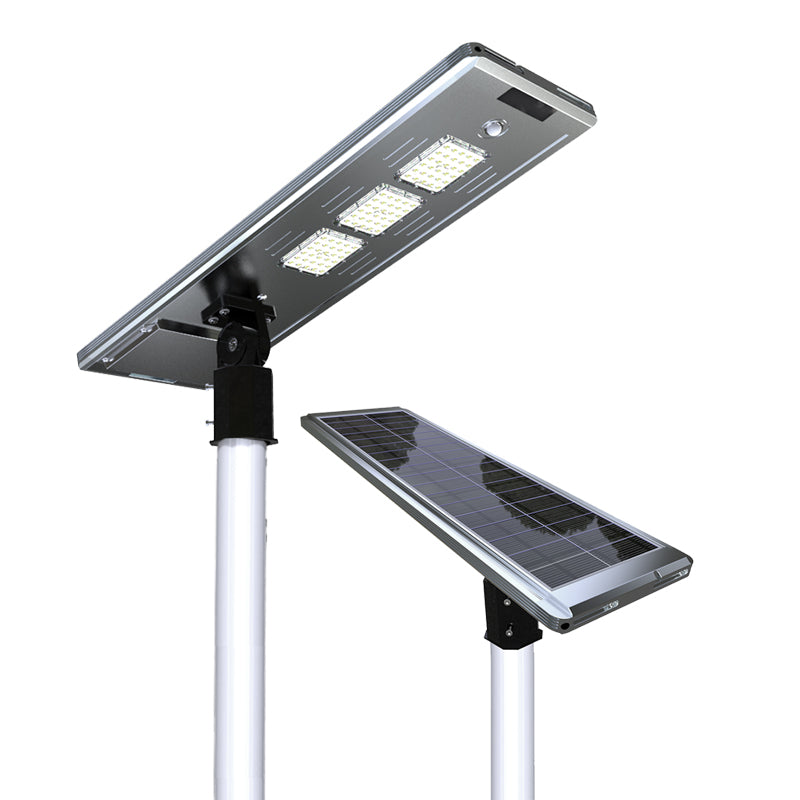

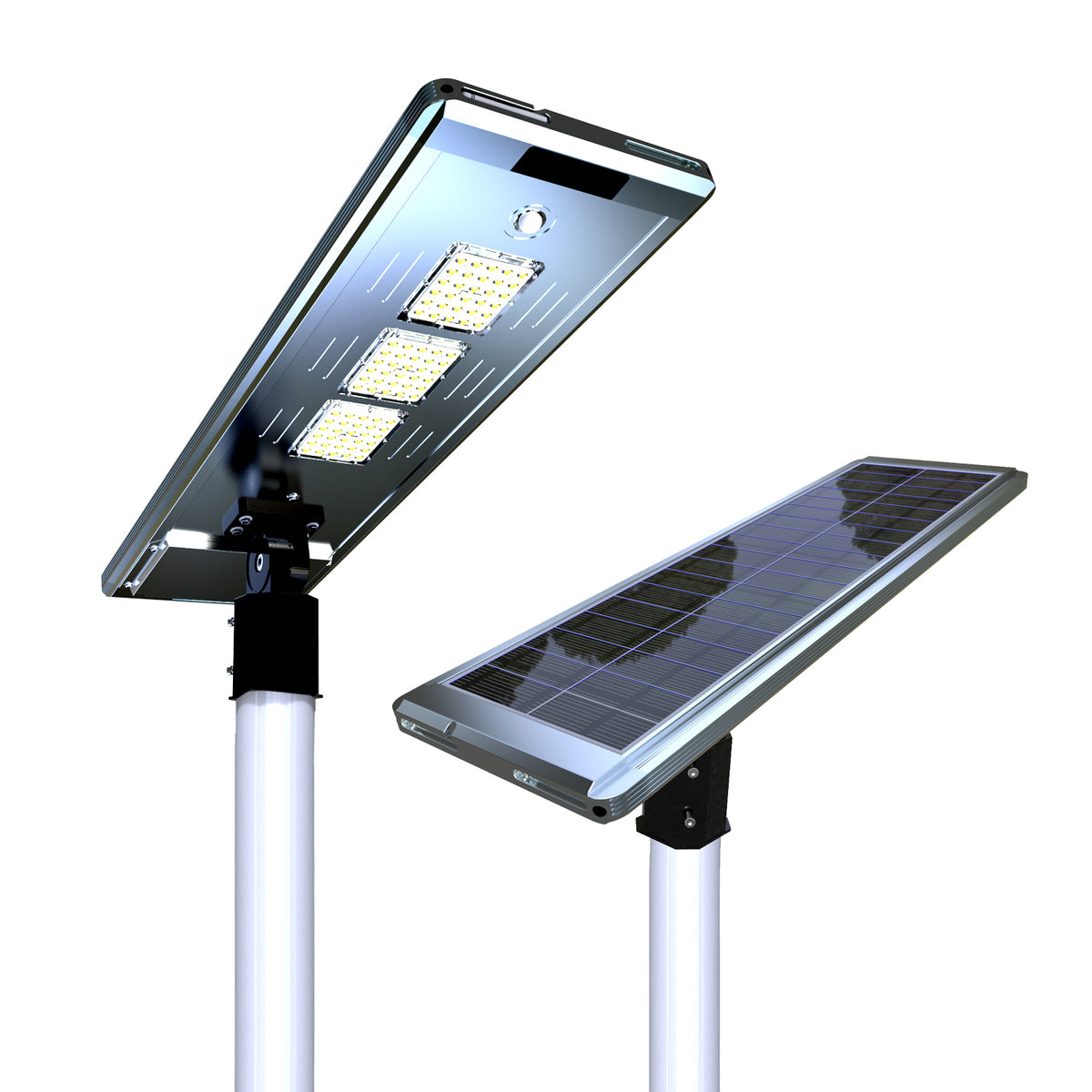

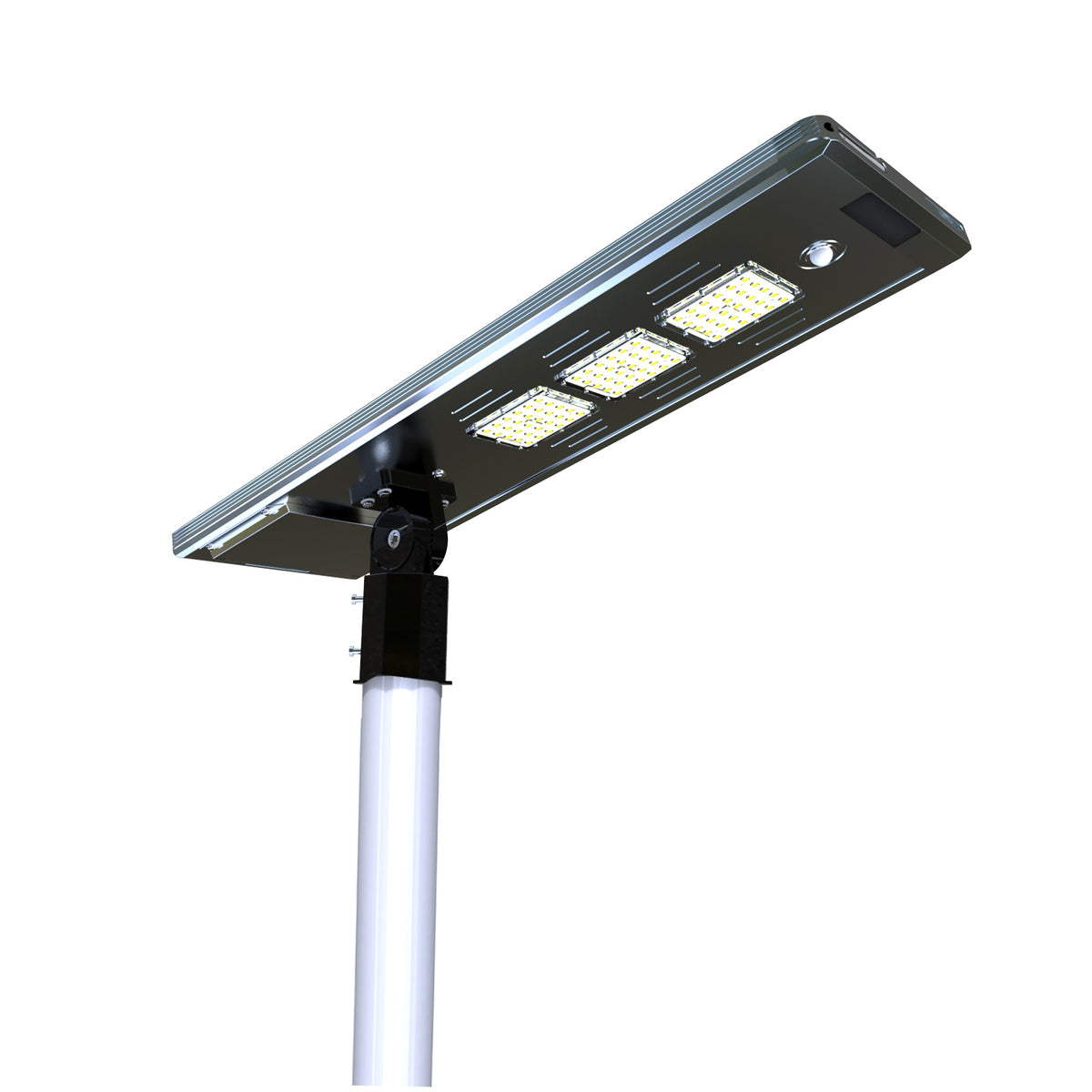

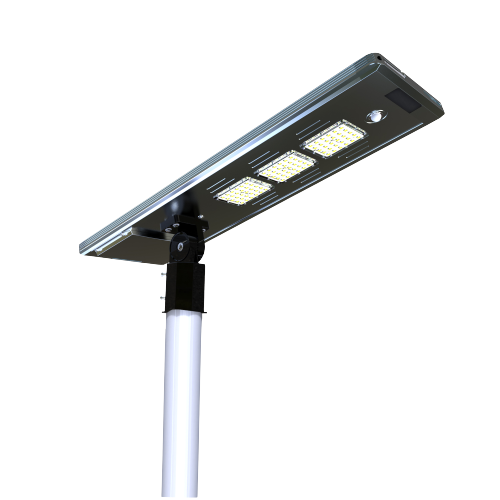

An all-in-one solar street light: Cree LEDs, a monocrystalline tempered-glass panel and a drawer-mounted LiFePO4 battery in a 100% anodised aluminium unibody. A smart remote sets timed or PIR modes before installation; the rotating bracket adjusts 0–80° on an 80 mm pole adaptor.
Key features
- Ultra-thin design with long autonomy (LiFePO4 battery)
- Smart remote control – select the lighting mode before installation
- Drawer push-pull battery design for easy replacement
- 100% anodised aluminium unibody – anti-corrosion, anti-rust
- All-in-one: panel, LEDs, battery, controller and remote in one enclosed unit
- Adjustable rotating bracket, strong and wind-resistant
- Cree LEDs
Specifications
| Solar panel | 50W |
|---|---|
| LED | 90 × Cree LED, 3 modules, 40W peak |
| Battery | LiFePO4 230.4Wh |
| Pole height / spacing | 4–6 m / 12–18 m |
| Light size | 1040 × 328 mm |

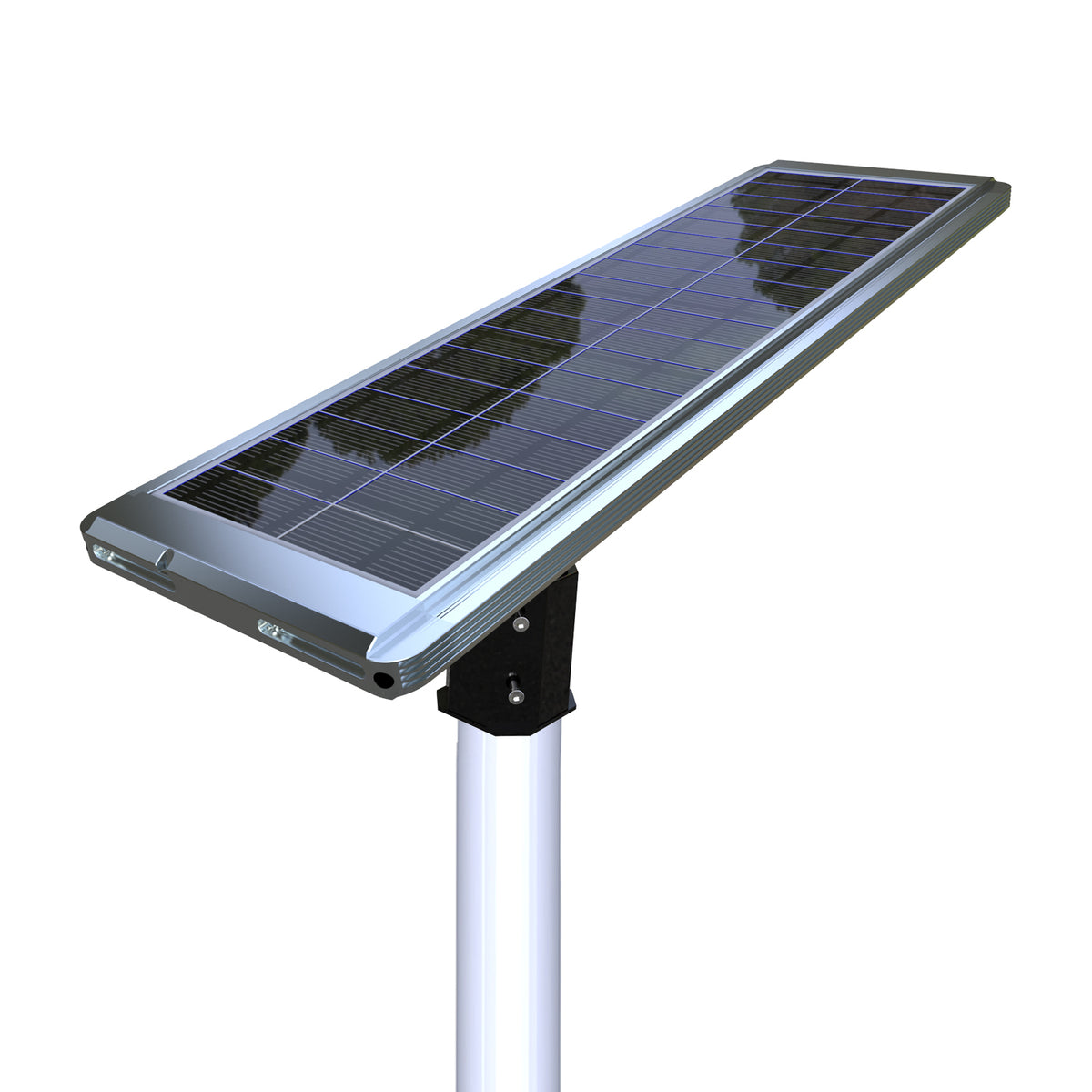

| Solar panel type | Monocrystalline, tempered glass |
| LED efficiency / CCT | 210 lm/W, 6000K, >50,000 h |
| Charging time | 6–8 hours in bright sunshine |
| Material | Aluminium alloy, anodised |
| Working temperature | -25°C to 65°C |
| PIR sensor coverage | 3–15 m |
| Lighting time | 3–5 nights after full charge |
| Working mode | Remote control selects the lighting mode (with or without motion sensor); default AUTO = 5 h 100% + 7 h 25% with PIR boost |
| Intelligent power management | Yes |

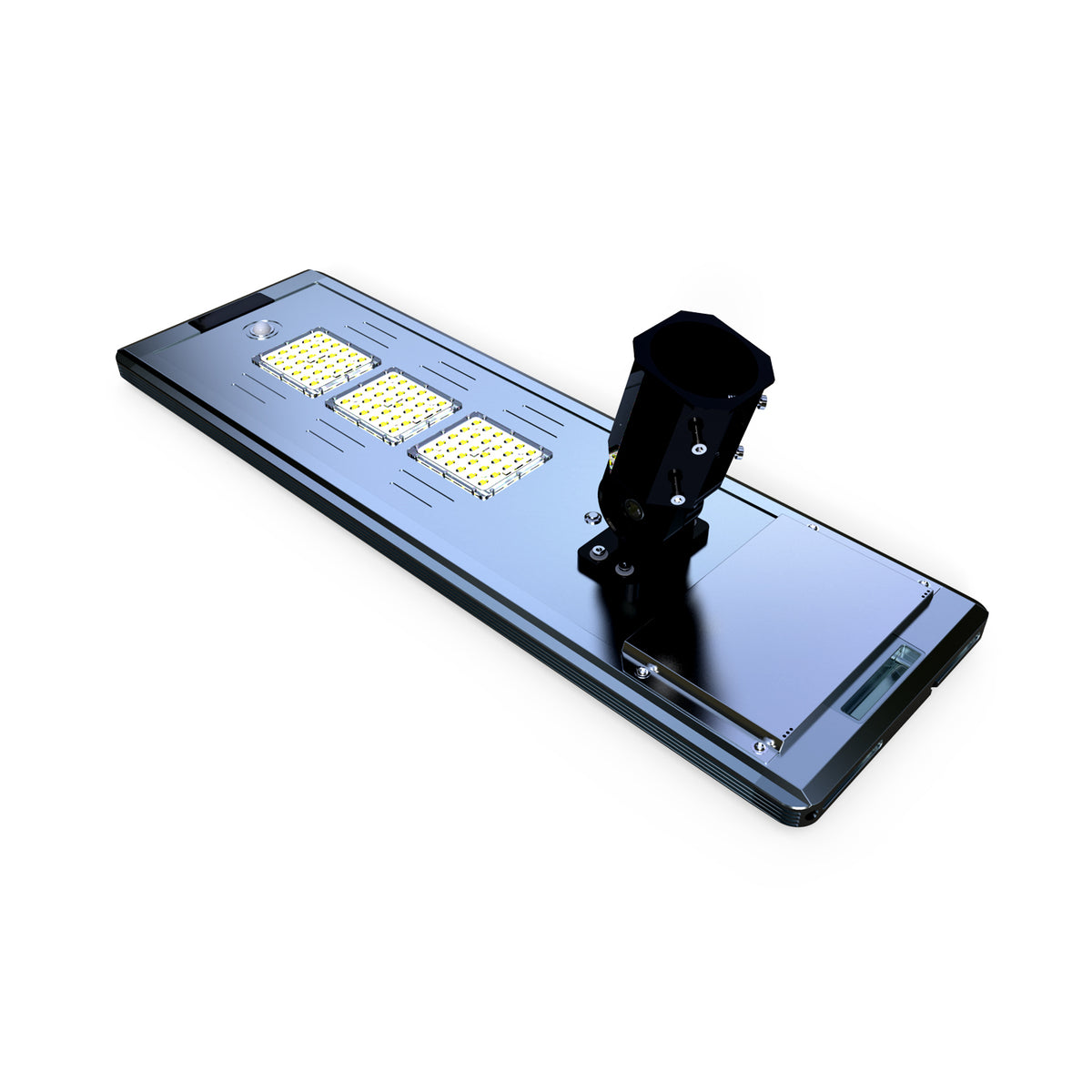

| Mounting adaptor | Inner diameter 80 mm, adjustable 0–80° |

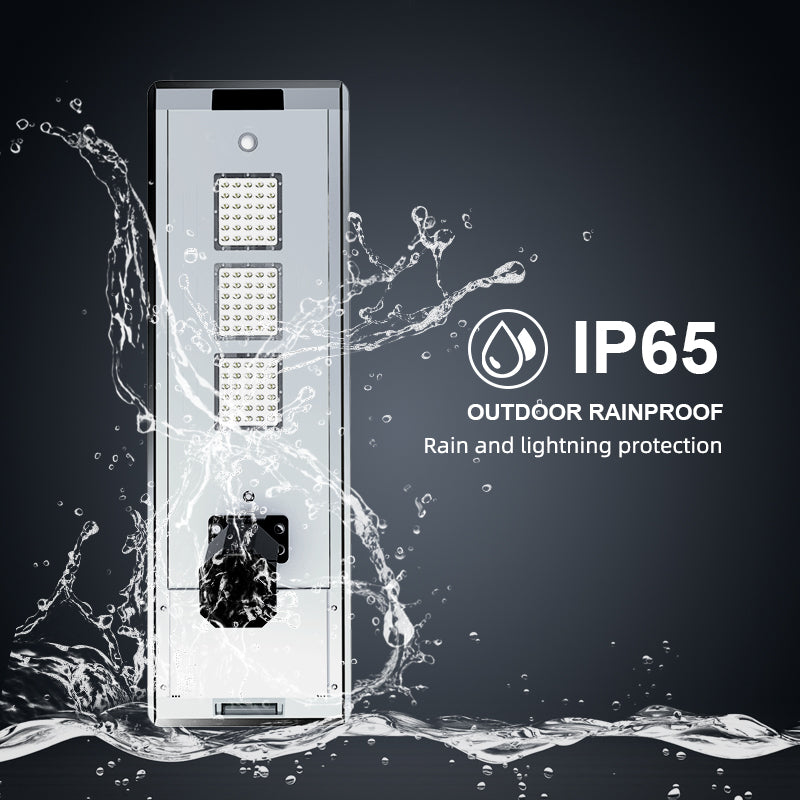

| IP / IK rating | IP65 / IK08 |
| Certificates | CE, RoHS, FCC; factory ISO 9001:2015 |
| Warranty | 3 years |
Lighting modes
Remote modes: 4H / 6H / 8H / 10H / 12H timed; 3+9, 4+8, 5+7, 6+6, 0+12 (hours full + hours 25% with PIR boost to 100%); AUTO; brightness ±10% in 10 steps.
Packaging
1 pc/carton 156 × 41 × 22 cm, 12 kg
Ideal for

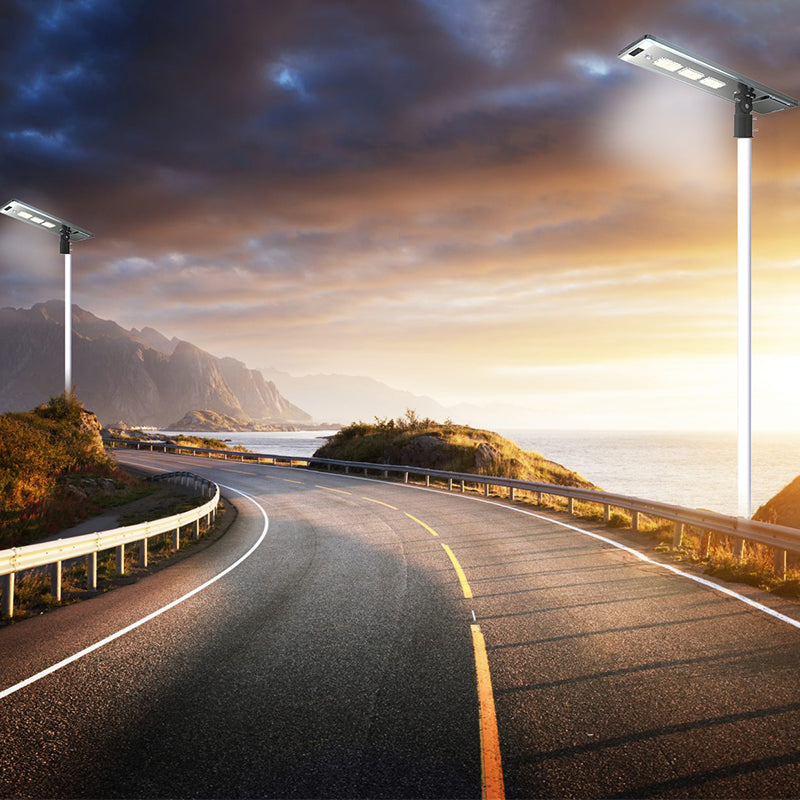

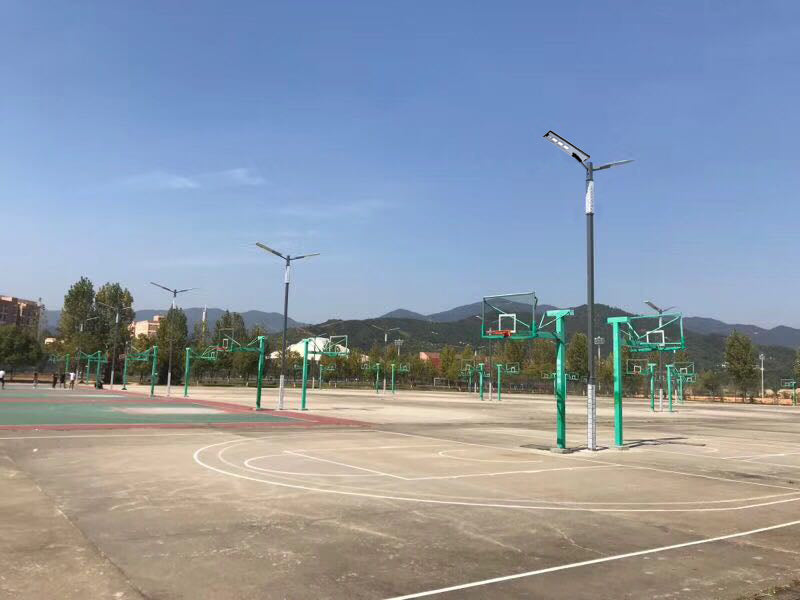

Streets, roads, car parks, campuses, rural roads, farms, remote areas.
Specifications taken from the manufacturer's technical datasheet; EVIEKO model EV-SL-109.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
