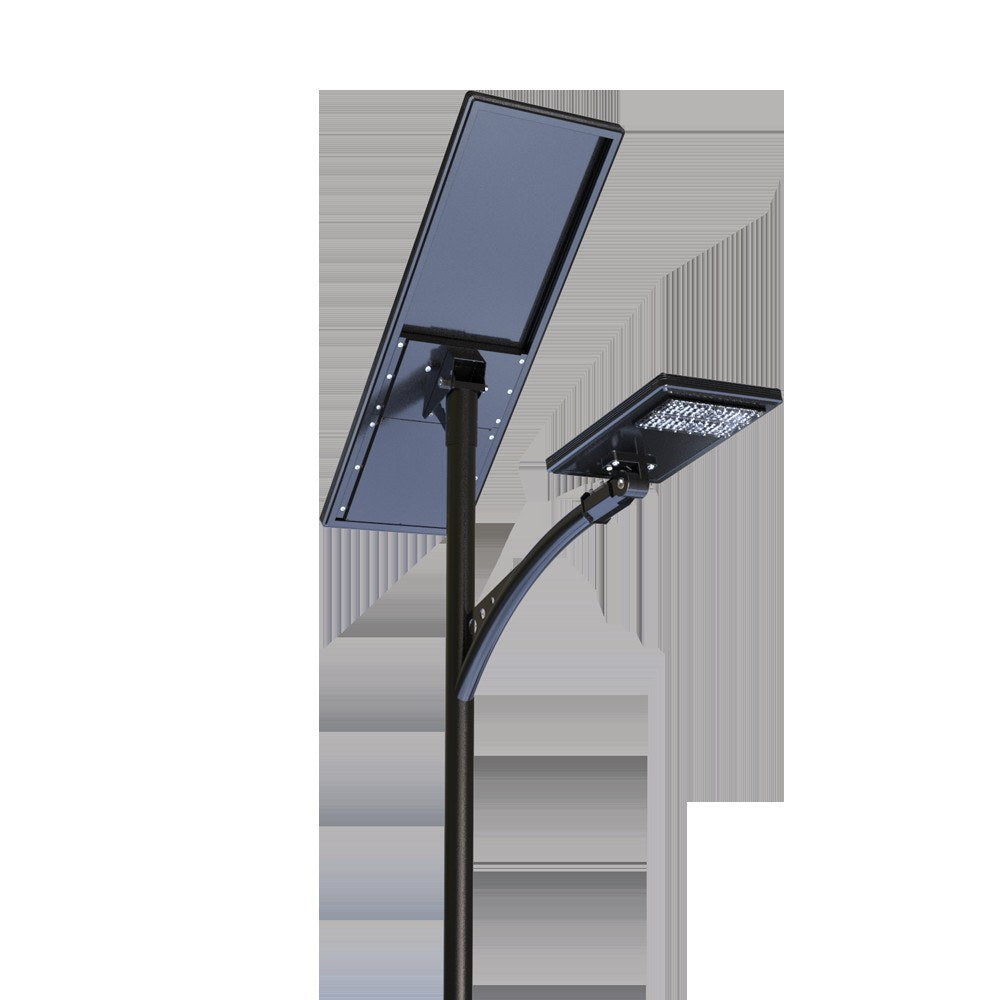

Split Solar Street Light 80W – 120W Panel
Request a quote
Light a public road, car park or site access route with no trenching, no cabling and no electricity bill. This all-in-one solar street light pairs a 120W monocrystalline panel with a 577Wh lithium battery and a 80W Cree LED eng...
- 100% Green Energy
- Built to Last
- Easy Installation
Project & commercial product – pricing on application. Tell us the quantity, site and pole height; we reply within 1 business day with a delivered price to your address.
Request a Quoteor email info@evieko.com · +61 404 312 969
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Split Solar Street Light 80W – 120W Panel
Overview

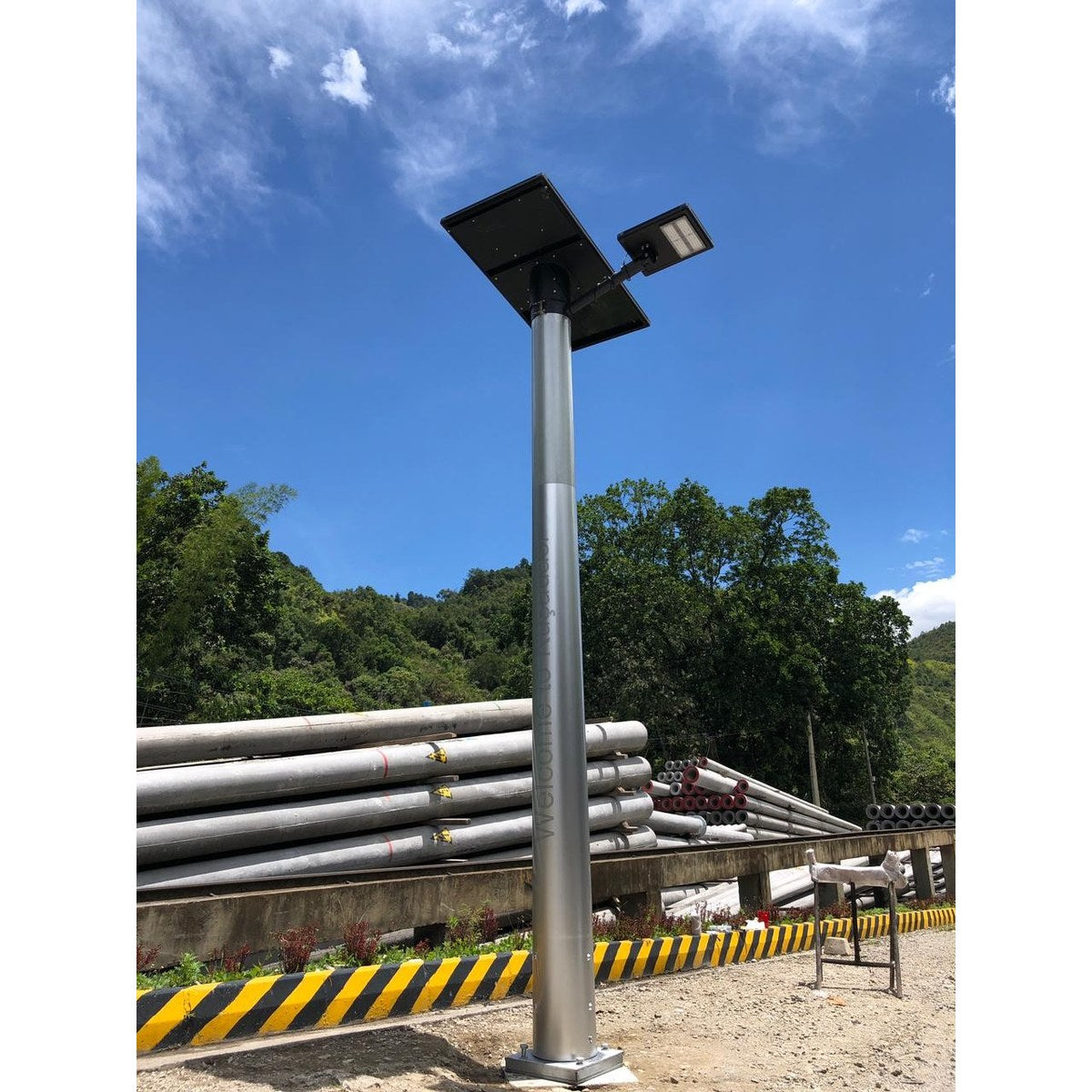

Light a public road, car park or site access route with no trenching, no cabling and no electricity bill. This all-in-one solar street light pairs a 120W monocrystalline panel with a 577Wh lithium battery and a 80W Cree LED engine running at 210 lm/W, giving clean white light with a 12-hour nightly duty and 3–5 days of autonomy for overcast weather. Mount it at 8–9 metres and space units 24–27 metres apart for even, glare-free coverage.
Key features
- 120W high-efficiency monocrystalline solar panel charges fully in 6–8 hours of bright sun.
- 577Wh lithium battery rated for a 5-year service life keeps the light running 3–5 nights without sun.
- 80W USA Cree LED at 210 lm/W for maximum light per watt of panel.
- Selectable colour temperature from 3000K warm white to 6500K daylight (OEM options available).
- Oxidised aluminium alloy housing, IP65 sealed, rated from -20°C to +65°C.
- Fits poles up to 80mm diameter at a 8–9m mounting height; recommended spacing 24–27m.
Installation and operation
Panel, battery, controller and LED array ship as a single sealed unit, so there is no separate battery box or controller to wire. Fix the bracket to a pole of 80mm or less, angle the panel to the sun and the light runs itself from dusk to dawn. At 8–9 metres this 80W head is a direct off-grid replacement for conventional secondary-road luminaires.
Specifications
| Solar panel | 120W high-efficiency monocrystalline silicon |
|---|---|
| Battery | Lithium, 577Wh, 5-year battery lifetime |
| LED | 80W USA Cree LED, 210 lm/W |
| Colour temperature | 3000K–6500K (OEM acceptable) |
| Charging time | 6–8 hours in bright sunlight |
| Lighting time | 12 hours per night, 3–5 days autonomy, constant lighting |
| Mounting height | 8–9m, pole diameter ≤80mm |
| Spacing between lights | 24–27m |
| Material | Aluminium alloy (oxidised) |
| IP rating | IP65 |
| Working temperature | -20°C to +65°C |
| Certification | CE / RoHS / IP65 / ISO |
| Warranty | 5 years |
Ideal for
Municipal roads, industrial estates, car parks, farm tracks, mining camps and remote communities where grid power is costly or unavailable. Contractors specify this 80W unit for 8–9m poles on secondary roads and large commercial perimeters.
Project pricing: This commercial-grade product is sold by quotation. Use the "Request a Quote" button or contact info@evieko.com with your quantity and delivery country.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
