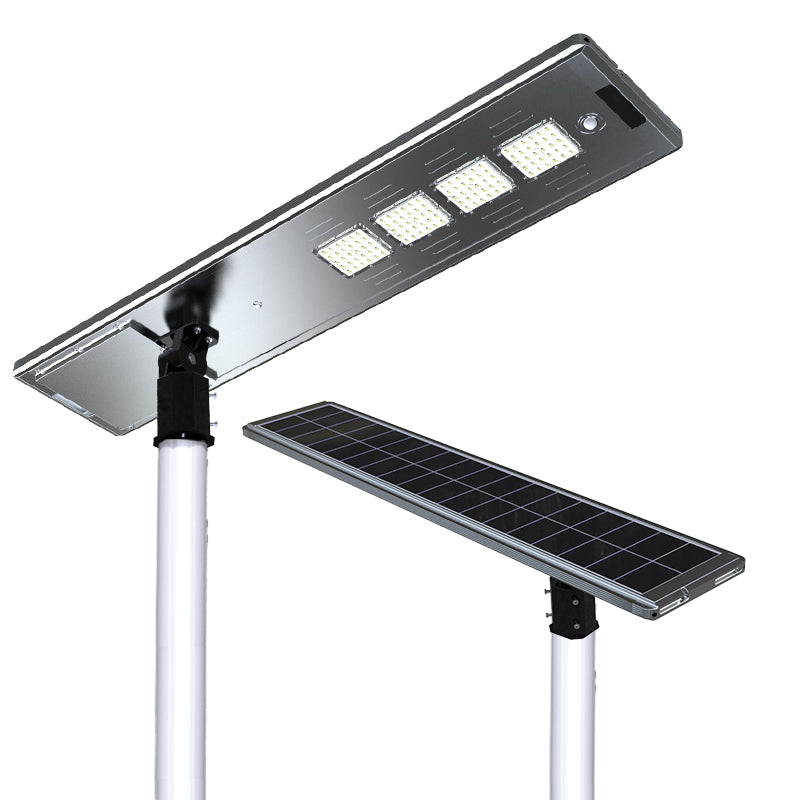

EVIEKO EV-SL-112 PIR Solar Street Light – four LED modules and solar panel side

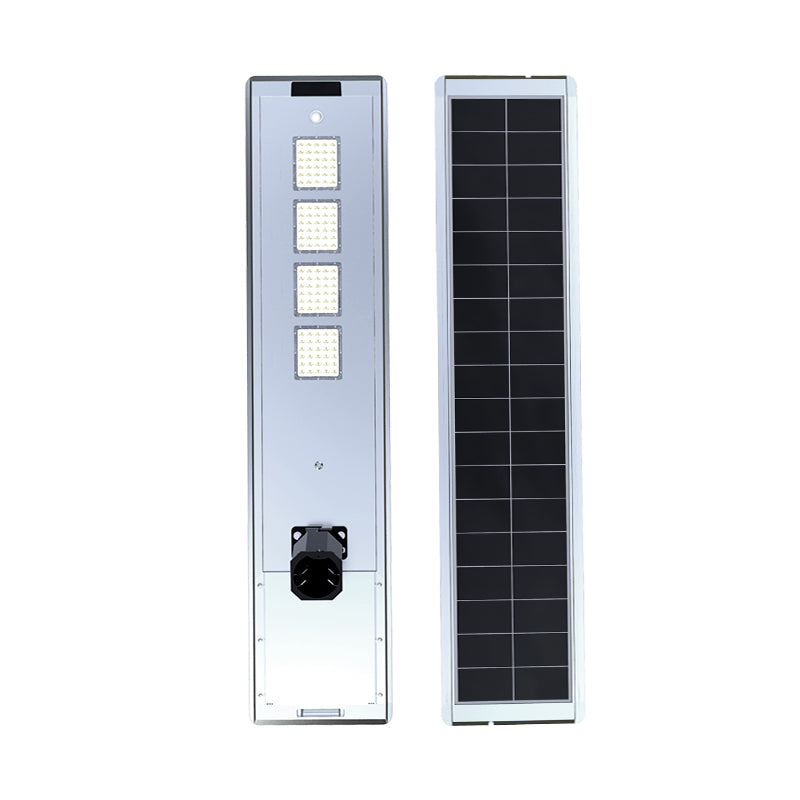

EVIEKO EV-SL-112 PIR Solar Street Light – LED side and panel side

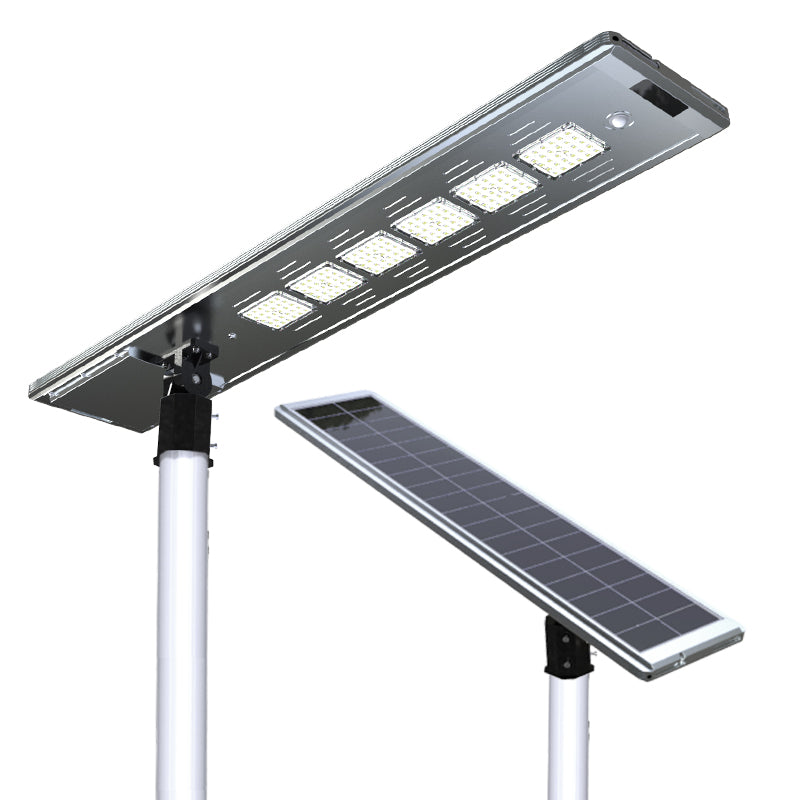

EVIEKO EV-SL-115 / EV-SL-103 PIR Solar Street Light – six LED modules and solar panel side

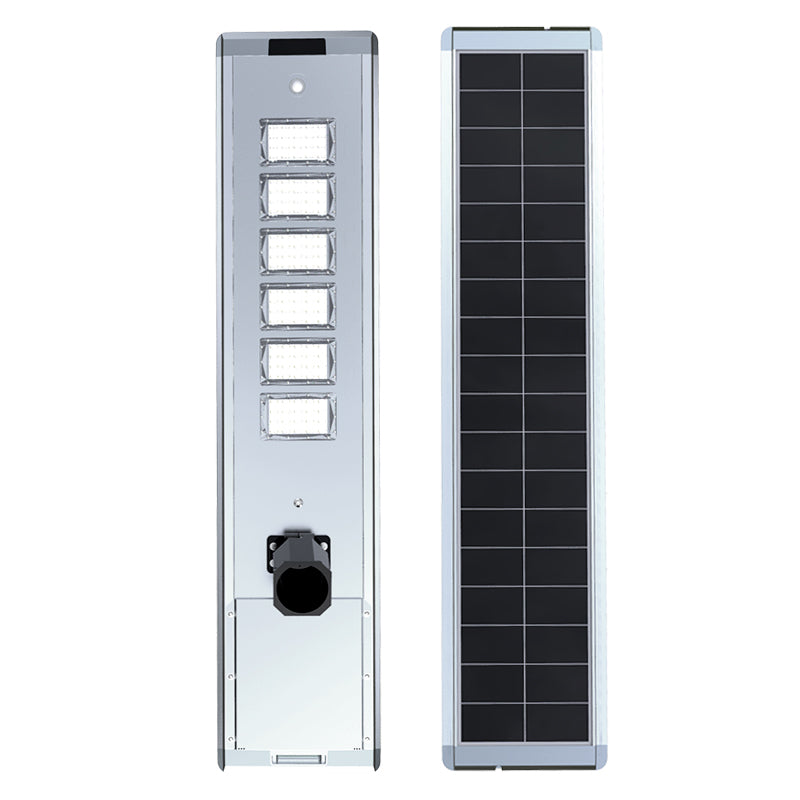

EVIEKO EV-SL-115 / EV-SL-103 PIR Solar Street Light – LED side and panel side
EVIEKO PIR solar street lights at a sports court
EVIEKO EV-SL-109 PIR Solar Street Light – three LED modules, on pole
EVIEKO PIR solar street light at night
EVIEKO EV-SL-109 PIR Solar Street Light – LED side
EVIEKO PIR solar street lights along a highway
EVIEKO PIR solar street light on a coastal road
Solar street lights at a sports court (example application)
EVIEKO EV-SL-109 PIR Solar Street Light – solar panel side
EVIEKO EV-SL-109 PIR Solar Street Light – adjustable bracket
EVIEKO EV-SL-109 PIR Solar Street Light – LED side and solar panel side
EVIEKO EV-SL-109 PIR Solar Street Light – LED side and panel side on poles
EVIEKO EV-SL-109 PIR Solar Street Light – front and back
EVIEKO EV-SL-112 PIR Solar Street Light – four LED modules and solar panel side
EVIEKO EV-SL-112 PIR Solar Street Light – LED side and panel side
EVIEKO EV-SL-115 / EV-SL-103 PIR Solar Street Light – six LED modules and solar panel side
EVIEKO EV-SL-115 / EV-SL-103 PIR Solar Street Light – LED side and panel side
EVIEKO PIR solar street lights at a sports court
EVIEKO EV-SL-109 PIR Solar Street Light – three LED modules, on pole
EVIEKO EV-SL-109 PIR Solar Street Light – LED side
EVIEKO PIR solar street lights along a highway
EVIEKO PIR solar street light on a coastal road
Solar street lights at a sports court (example application)
EVIEKO EV-SL-109 PIR Solar Street Light – solar panel side
EVIEKO EV-SL-109 PIR Solar Street Light – adjustable bracket
EVIEKO EV-SL-109 PIR Solar Street Light – LED side and solar panel side
EVIEKO EV-SL-109 PIR Solar Street Light – LED side and panel side on poles
EVIEKO EV-SL-109 PIR Solar Street Light – front and back
EVIEKO EV-SL-112 PIR Solar Street Light – four LED modules and solar panel side
EVIEKO EV-SL-112 PIR Solar Street Light – LED side and panel side
EVIEKO EV-SL-115 / EV-SL-103 PIR Solar Street Light – six LED modules and solar panel side
EVIEKO EV-SL-115 / EV-SL-103 PIR Solar Street Light – LED side and panel side
EVIEKO PIR solar street lights at a sports court
EVIEKO EV-SL-109 PIR Solar Street Light – three LED modules, on pole
EVIEKO PIR solar street light at night
EVIEKO EV-SL-109 PIR Solar Street Light – LED side
EVIEKO PIR solar street lights along a highway
EVIEKO PIR solar street light on a coastal road
Solar street lights at a sports court (example application)
EVIEKO EV-SL-109 PIR Solar Street Light – solar panel side
EVIEKO EV-SL-109 PIR Solar Street Light – adjustable bracket
EVIEKO EV-SL-109 PIR Solar Street Light – LED side and solar panel side
EVIEKO EV-SL-109 PIR Solar Street Light – LED side and panel side on poles
EVIEKO EV-SL-109 PIR Solar Street Light – front and back
EVIEKO EV-SL-112 PIR Solar Street Light – four LED modules and solar panel side
EVIEKO EV-SL-112 PIR Solar Street Light – LED side and panel side
EVIEKO EV-SL-115 / EV-SL-103 PIR Solar Street Light – six LED modules and solar panel side
EVIEKO EV-SL-115 / EV-SL-103 PIR Solar Street Light – LED side and panel side
EVIEKO PIR solar street lights at a sports court

PIR Solar Street Light – LiFePO4, 40–100W

Request a quote
Power: 40W

An all-in-one solar street light in four power ratings – 40W, 60W, 80W and 100W. High-efficiency LEDs, a monocrystalline tempered-glass panel and a drawer-mounted LiFePO4 battery sit in a 100% anodised aluminium unibody. A smar...

  • 100% Green Energy
  • Built to Last
  • Easy Installation

Project & commercial product – pricing on application. Tell us the quantity, site and pole height; we reply within 1–2 business days with a delivered price to your address.

Request a Quote

or email info@evieko.com · +61 404 312 969

Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.

Quoted products are supplied to order and cannot be returned for change of mind. Faulty or damaged items are replaced or refunded under the Australian Consumer Law.

Ask a Question
Ask a Question
Share
Project Support Icon

Project Configuration Presentation for Flawless Installation:

We offer product lists and layout planning support for your projects.


100% SOLAR POWERED

Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.

WEATHER-RATED

Every model carries an IP rating and a working-temperature range – see the specifications for the exact figures.

AUTOMATIC DUSK-TO-DAWN

Switches on automatically at dusk and off at dawn; motion-sensor and dimming modes on selected models stretch each charge further.

EVIEKO TECHNICAL DATASHEET

PIR Solar Street Light – LiFePO4, 40–100W

Model: EV-SL-109 Category: Solar Street Lights SKU: EV-SL-109

Overview

An all-in-one solar street light in four power ratings – 40W, 60W, 80W and 100W. High-efficiency LEDs, a monocrystalline tempered-glass panel and a drawer-mounted LiFePO4 battery sit in a 100% anodised aluminium unibody. A smart remote sets timed or PIR modes before installation; the rotating bracket adjusts 0–80° on an 80 mm pole adaptor. Choose the power that suits your pole height and road width.

Key features

  • Ultra-thin design with long autonomy (LiFePO4 battery)
  • Smart remote control – select the lighting mode before installation
  • PIR motion sensor with 25% standby and 100% boost
  • Drawer push-pull battery design for easy replacement
  • 100% anodised aluminium unibody – anti-corrosion, anti-rust
  • All-in-one: panel, LEDs, battery, controller and remote in one enclosed unit
  • Adjustable rotating bracket, strong and wind-resistant

Model comparison

Specification EV-SL-109
40W
EV-SL-112
60W
EV-SL-115
80W
EV-SL-103
100W
Solar panel 50W monocrystalline 75W monocrystalline 90W monocrystalline 90W monocrystalline
LED 90 × LED, 3 modules, 40W peak 120 × LED, 4 modules, 60W peak 180 × LED, 6 modules, 80W peak 180 × LED, 6 modules, 100W peak
Battery LiFePO4 230.4Wh LiFePO4 307.2Wh LiFePO4 384Wh LiFePO4 460.8Wh
Pole height / spacing 6–8 m / 18–20 m 8–10 m / 24–30 m 8–10 m / 24–30 m 8–10 m / 24–30 m
Light size 1040 × 328 mm 1490 × 328 mm 1640 × 328 mm 1640 × 328 mm
Packaging 1 pc/carton 111 × 41 × 22 cm, 12.9 kg 1 pc/carton 158 × 41 × 22 cm, 17.55 kg 2 cartons: 173 × 40 × 13 cm (17 kg) + 42 × 20 × 22 cm (2.5 kg) 1 pc/carton 173 × 41 × 22 cm, 19.85 kg

Common specifications (all models)

Solar panel type Monocrystalline, tempered glass
LED efficiency / CCT 210 lm/W, 6000K, >50,000 h
Beam angle 151° × 91.9°
Charging time 6–8 hours in bright sunshine
Material Aluminium alloy, anodised
Working temperature -25°C to 65°C
PIR sensor coverage 3–15 m
Rated lighting time 3–5 nights after full charge
Working mode Remote control selects the lighting mode (with or without motion sensor); default AUTO = 5 h 100% + 7 h 25% with PIR boost
Intelligent power management Yes
Mounting adaptor Inner diameter 80 mm, adjustable 0–80°
IP / IK rating IP65 / IK08
Certificates CE, RoHS, FCC; ISO 9001:2015 certified production
Warranty 3 years

Lighting modes

Remote modes: 4H / 6H / 8H / 10H / 12H timed; 3+9, 4+8, 5+7, 6+6, 0+12 (hours full + hours 25% with PIR boost to 100%); AUTO; brightness ±10% in 10 steps.

Ideal for

Streets, roads, car parks, campuses, rural roads, farms, remote areas.

Specifications per EVIEKO technical data.

About rated run times: rated lighting time is the manufacturer's figure for the light's normal operating mode – with automatic dimming or motion sensing where fitted – after a full charge in good sunlight. Continuous full-brightness run time is shorter, and real-world results depend on sunlight, season and temperature.

Warranty & compliance

Warranty period as stated in the specifications (for quoted products, in your quotation); faulty goods replaced or refunded under the Australian Consumer Law. Certifications and IP rating as listed in the specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.

PIR Solar Street Light – frequently asked questions

Does the PIR Solar Street Light need mains power or wiring?
No. It is solar powered: the solar panel (Monocrystalline, tempered glass) charges the built-in battery (EV-SL-109: LiFePO4 230.4Wh; EV-SL-112: LiFePO4 307.2Wh; EV-SL-115: LiFePO4 384Wh; EV-SL-103: LiFePO4 460.8Wh) during the day, so no mains cable or power bill is involved.
How long does it stay lit on a full charge?
3–5 nights after full charge.
How long does it take to charge?
6–8 hours in bright sunshine.
Is it waterproof?
It is rated IP65 / IK08 – dust-tight and protected against water jets from any direction.
What lighting modes does it have?
Remote control selects the lighting mode (with or without motion sensor); default AUTO = 5 h 100% + 7 h 25% with PIR boost.
What warranty does it come with?
3 years, in addition to your rights under the Australian Consumer Law.
Where can I use it?
Streets, roads, car parks, campuses, rural roads, farms, remote areas.
How do I order it?
It is supplied by quotation. Use Request a Quote or email info@evieko.com with the quantity and site details; we reply within 1–2 business days with a delivered price.
