Split Solar Street Light – Separate Panel, 40–120W
Request a quote
Power:
40W
A split-type solar street light in five power ratings – 40W, 60W, 80W, 100W and 120W. A large monocrystalline panel sits at the top of the pole, angled to the sun, while a separate high-efficiency LED lamp head on the arm below...
- 100% Green Energy
- Built to Last
- Easy Installation
Project & commercial product – pricing on application. Tell us the quantity, site and pole height; we reply within 1 business day with a delivered price to your address.
Request a Quoteor email info@evieko.com · +61 404 312 969
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Split Solar Street Light – Separate Panel, 40–120W
Overview
A split-type solar street light in five power ratings – 40W, 60W, 80W, 100W and 120W. A large monocrystalline panel sits at the top of the pole, angled to the sun, while a separate high-efficiency LED lamp head on the arm below lights the road with constant output from dusk to dawn. The lithium battery and controller slide out on a drawer for easy servicing. No trenching, no cabling and no electricity bill.
Key features
- Split (semi) design – separate solar panel for more panel area and better sun orientation
- High-efficiency monocrystalline panels from 80W to 200W, fully charged in 6–8 hours of bright sun
- High-efficiency LEDs at 210 lm/W, 6000–6500K daylight white
- Lithium battery from 289Wh to 808Wh – 12 hours a night, 3–5 days autonomy
- Drawer push-pull design – easy to replace the battery or controller
- Oxidised aluminium alloy case, IP65, -25°C to 65°C
Model comparison
| Specification | EV-SL-110 40W |

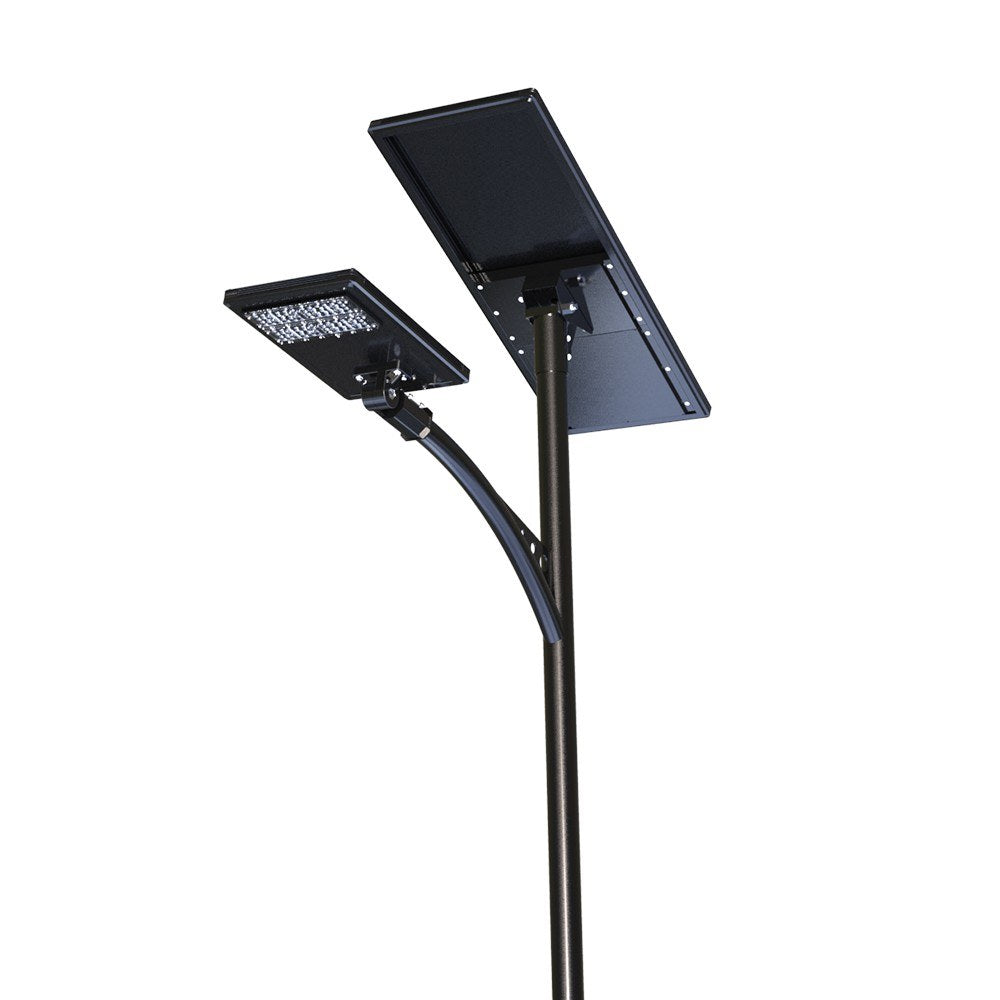

EV-SL-113 60W |
EV-SL-116 80W |
EV-SL-104 100W |

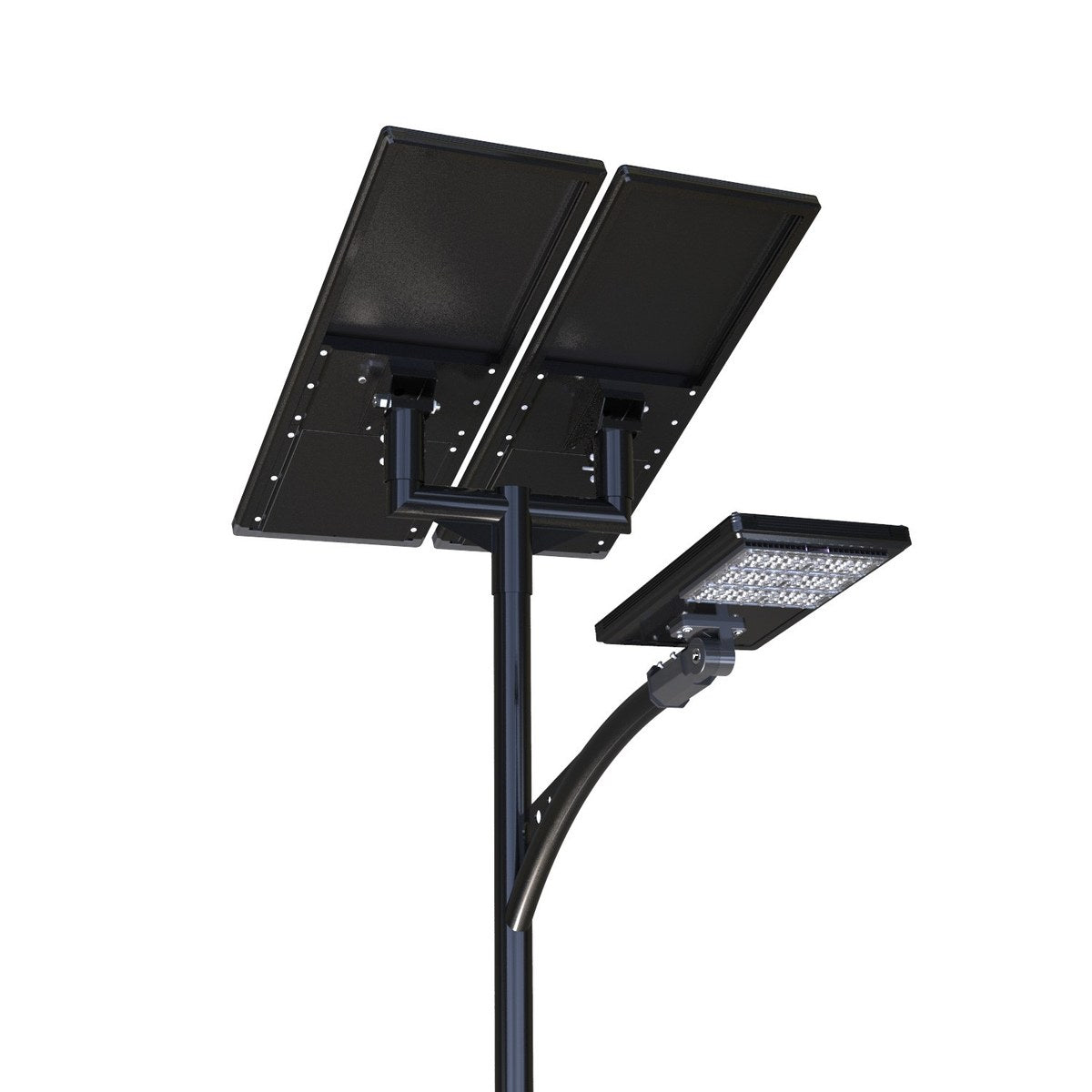

EV-SL-106 120W |
|---|---|---|---|---|---|
| Solar panel | 80W monocrystalline | 100W monocrystalline | 120W monocrystalline | 160W (2 × 80W) monocrystalline | 200W (2 × 100W) monocrystalline |
| LED | 40W LED, 210 lm/W | 60W LED, 210 lm/W | 80W LED, 210 lm/W | 100W LED, 210 lm/W | 120W LED, 210 lm/W |
| Battery | Lithium 289Wh | Lithium 404Wh | Lithium 577Wh | Lithium 693Wh | Lithium 808Wh |
| Lamp size | 435 × 226 mm, optical lens | 435 × 226 mm, optical lens | 500 × 328 mm, optical lens | 435 × 226 mm, PC lens | 435 × 226 mm, PC lens |
| Mounting height | 5–6 m, pole diameter ≤70 mm | 6–8 m, pole diameter ≤70 mm | 8–10 m, pole diameter ≤80 mm | 9–10 m, pole diameter ≤80 mm | 10–12 m, pole diameter ≤80 mm |
| Spacing between lights | 15–18 m | 21–24 m | 24–27 m | 27–30 m | 27–30 m |
Common specifications (all models)
| Design | Split (semi) type – pole-top solar panel with separate LED lamp head on an arm |
|---|---|
| Battery / controller | Drawer push-pull design – easy to replace the battery or controller; 5-year battery lifetime |
| Colour temperature | 6000–6500K (other colour temperatures on request) |
| Charging time | 6–8 hours in bright sunlight |
| Lighting mode | Constant lighting the entire night |
| Lighting time | 12 hours per night, 3–5 days autonomy |
| Material | Aluminium alloy case (oxidised) |
| IP rating | IP65 |
| Working temperature | -25°C to 65°C |
| Certification | CE / RoHS / IP65 / ISO 9001:2015 |
| Warranty | 5 years |
Ideal for
Municipal roads, streets, industrial estates, car parks, campuses, parks, farm tracks, mining camps and remote communities where grid power is costly or unavailable.
Project pricing: This commercial-grade product is sold by quotation. Use the "Request a Quote" button or contact info@evieko.com with your model, quantity and delivery country.
Specifications per EVIEKO technical data.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
Product details
Why Choose Evieko Solar Solutions?
No Mains Wiring
Solar lights need no mains cabling or trenching. Most models fix with the spike, bracket or screws supplied; street and car-park lights mount on a pole.
Modern Aesthetics
Sleek, contemporary designs that complement any architectural style while providing superior illumination.
Dedicated Support
The warranty term of each model is stated on its product page, and our team answers technical questions by email, Mon–Fri 9am–6pm AEST.
