Post-Top Solar Plaza Light – Square 20W / Oval 40W
Request a quote
Model:
Square 20W
EVIEKO post-top solar plaza lights put the solar panel, LiFePO4 battery and LEDs into one die-cast aluminium head that mounts on top of a pole. Choose the compact square 20W head for paths and courtyards, or the larger oval 40W...
- 100% Green Energy
- Built to Last
- Easy Installation
Project & commercial product – pricing on application. Tell us the quantity, site and pole height; we reply within 1 business day with a delivered price to your address.
Request a Quoteor email info@evieko.com · +61 404 312 969
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Post-Top Solar Plaza Light – Square 20W / Oval 40W
Overview

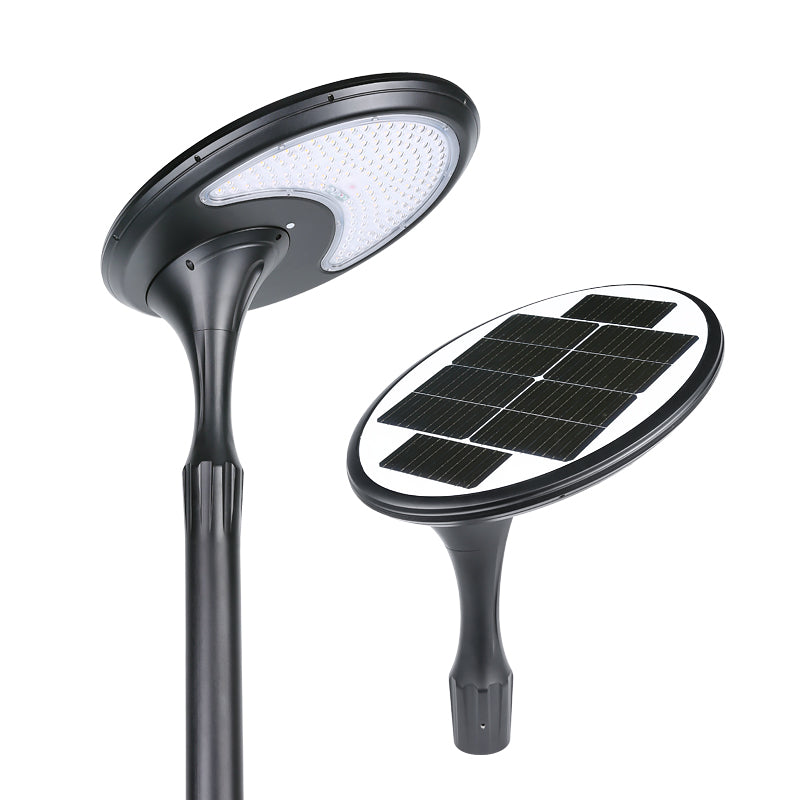

EVIEKO post-top solar plaza lights put the solar panel, LiFePO4 battery and LEDs into one die-cast aluminium head that mounts on top of a pole. Choose the compact square 20W head for paths and courtyards, or the larger oval 40W head for walkways, parks and promenades. Both open up for battery and controller replacement.
Key features

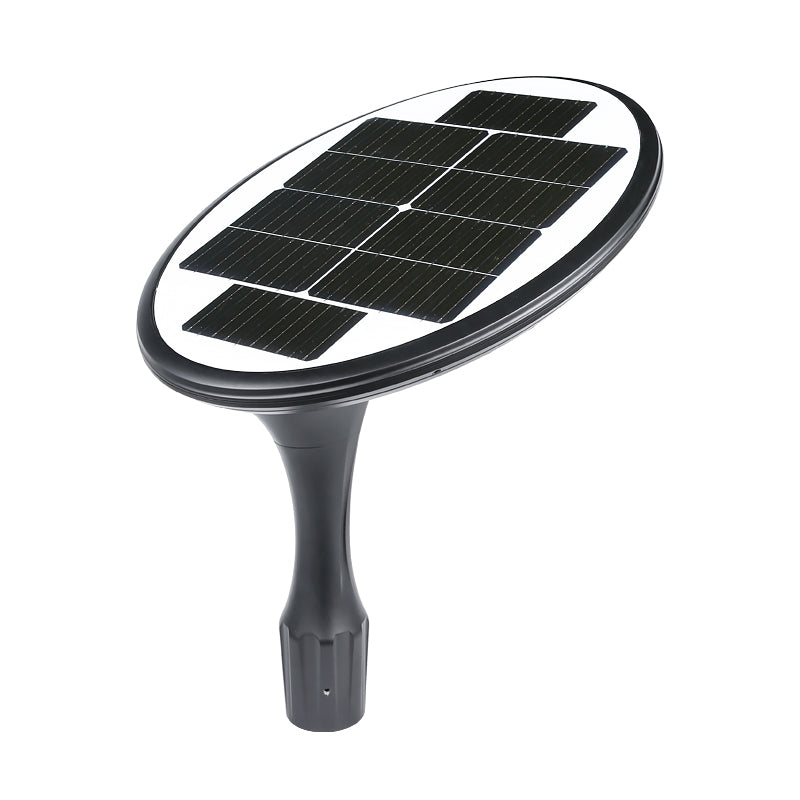

- Integrated monocrystalline solar panel on top of the light head
- LiFePO4 3.2V battery
- Die-cast aluminium housing in sand black, IP65

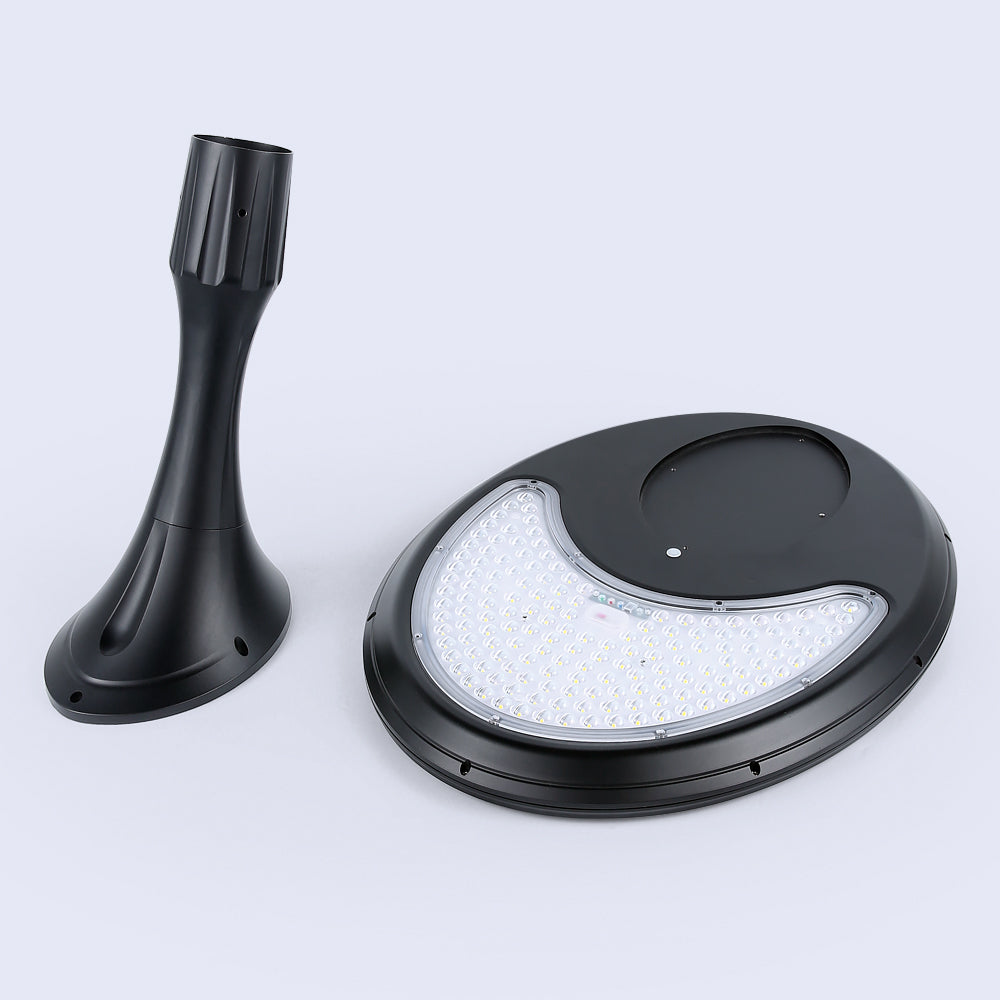

- Openable design for battery and controller replacement
- Charges in 6–8 hours of sun
Model comparison
| Specification | EV-PZ-101 Square 20W, 4000K |
EV-PZ-102 Oval 40W, 6000K |
|---|---|---|
| Power | 20W | 40W |
| Solar panel | Monocrystalline silicon, 20W / 5V | Monocrystalline silicon, 38W / 5V |
| Light colour / LEDs | 4000K, 80 beads | – |
| Battery | LiFePO4 3.2V / 20Ah | LiFePO4 3.2V / 60Ah |
| Lighting mode | Constant lighting with night profile: 1 h 100% + 1 h 80% + 1 h 60% + 4 h 40% + 5 h 20% | Constant lighting |
| Housing | Die-cast aluminium, sand black | Die-cast aluminium + PC, sand black |
| Bracket | Inner size 78 mm | Inner diameter 86 mm |
| Lamp size | 400 × 400 × H420 mm | – |
| Installation height | 3–4 m | 4–5 m |
| Ambient temperature | -20°C to 50°C | – |
| Warranty | 2 years | 2 years |
| Packaging | Carton 42 × 42 × 21 cm, 5.6 kg | Carton 93 × 59 × 28 cm |
| Light colour | – | 6000K |
| Lamp cap size | – | 700 × 520 × H665 mm |
| Working temperature | – | -25°C to 65°C |
Specifications (all models)
| Charging time | 6–8 hours |
|---|---|
| Material | Die-cast aluminium + PC |
| IP rating | IP65 |
| Certificates | CE, RoHS, FCC |
In the box
Solar plaza light head with integrated panel and battery, and installation parts (pole not included).
Ideal for
Plazas, parks, park walkways, riverside and seaside promenades, campuses, hotel grounds, courtyards and residential estates.
Specifications per EVIEKO technical data.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
