Rotatable Solar Wall Light – 500lm Motion / 800lm External Panel
Regular price
$64.00 AUD
per
Model:
500lm PIR, built-in panel
Pack:
Single
Colour:
Black
A rotatable solar motion wall light with a PIR human sensor, in two models. The 500lm model (EV-WL-103) has its 3W solar panel built into the top of the lamp. The 800lm model (EV-WL-104) puts the 3W panel on a 3-metre cable, so...
- 100% Green Energy
- Built to Last
- Easy Installation
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Rotatable Solar Wall Light – 500lm Motion / 800lm External Panel
Overview

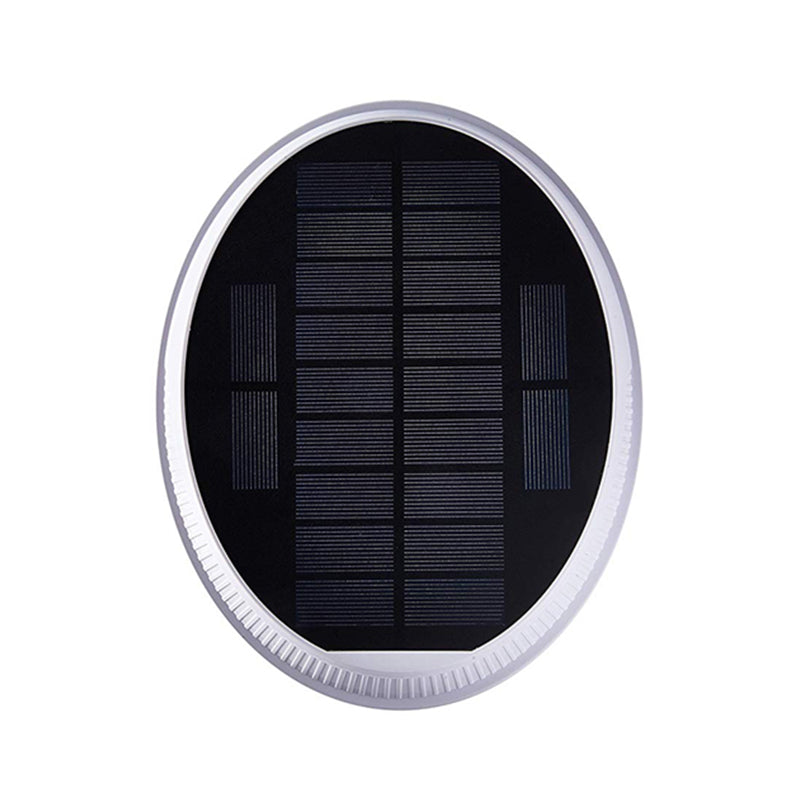

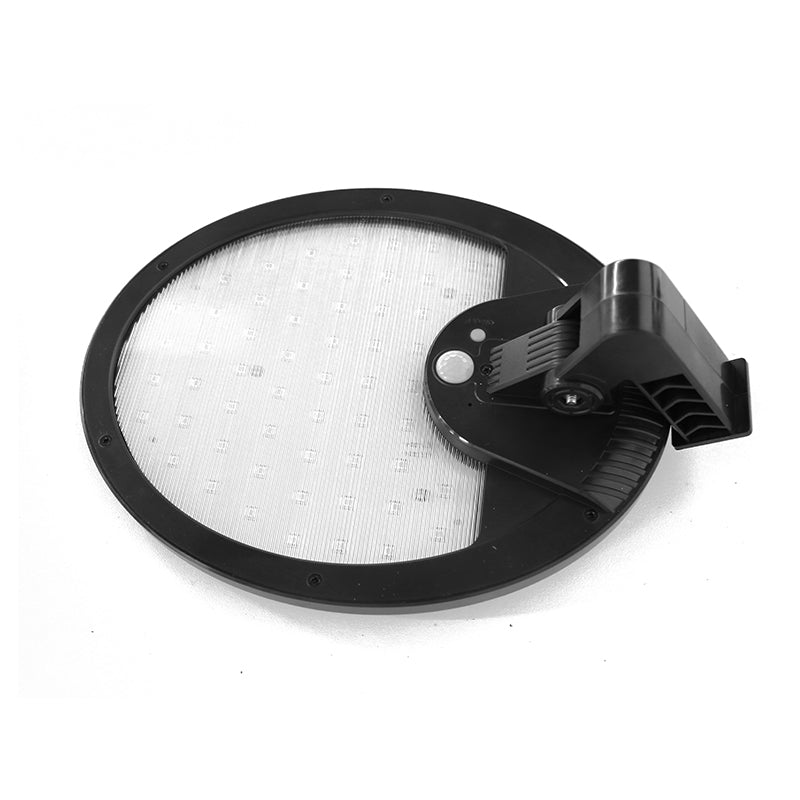

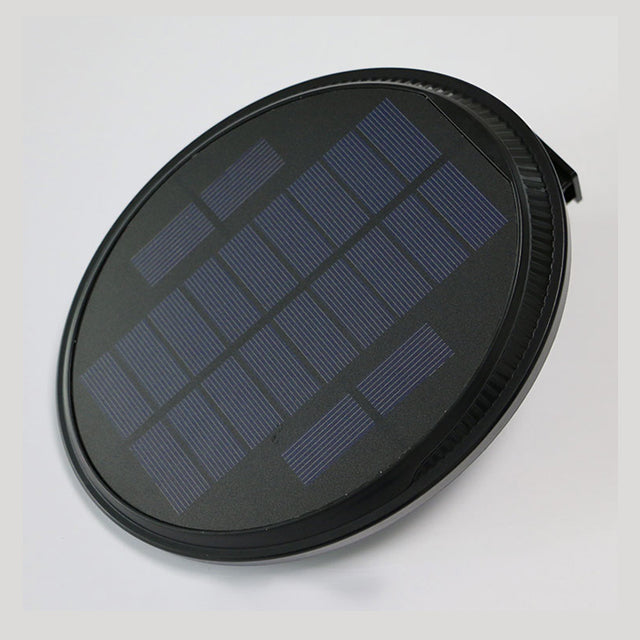

A rotatable solar motion wall light with a PIR human sensor, in two models. The 500lm model (EV-WL-103) has its 3W solar panel built into the top of the lamp. The 800lm model (EV-WL-104) puts the 3W panel on a 3-metre cable, so the lamp can go on a shaded wall while the panel sits in full sun, and doubles the battery to 4400mAh. On both, the head rotates so you can aim the beam down a path, over a door or across a driveway.

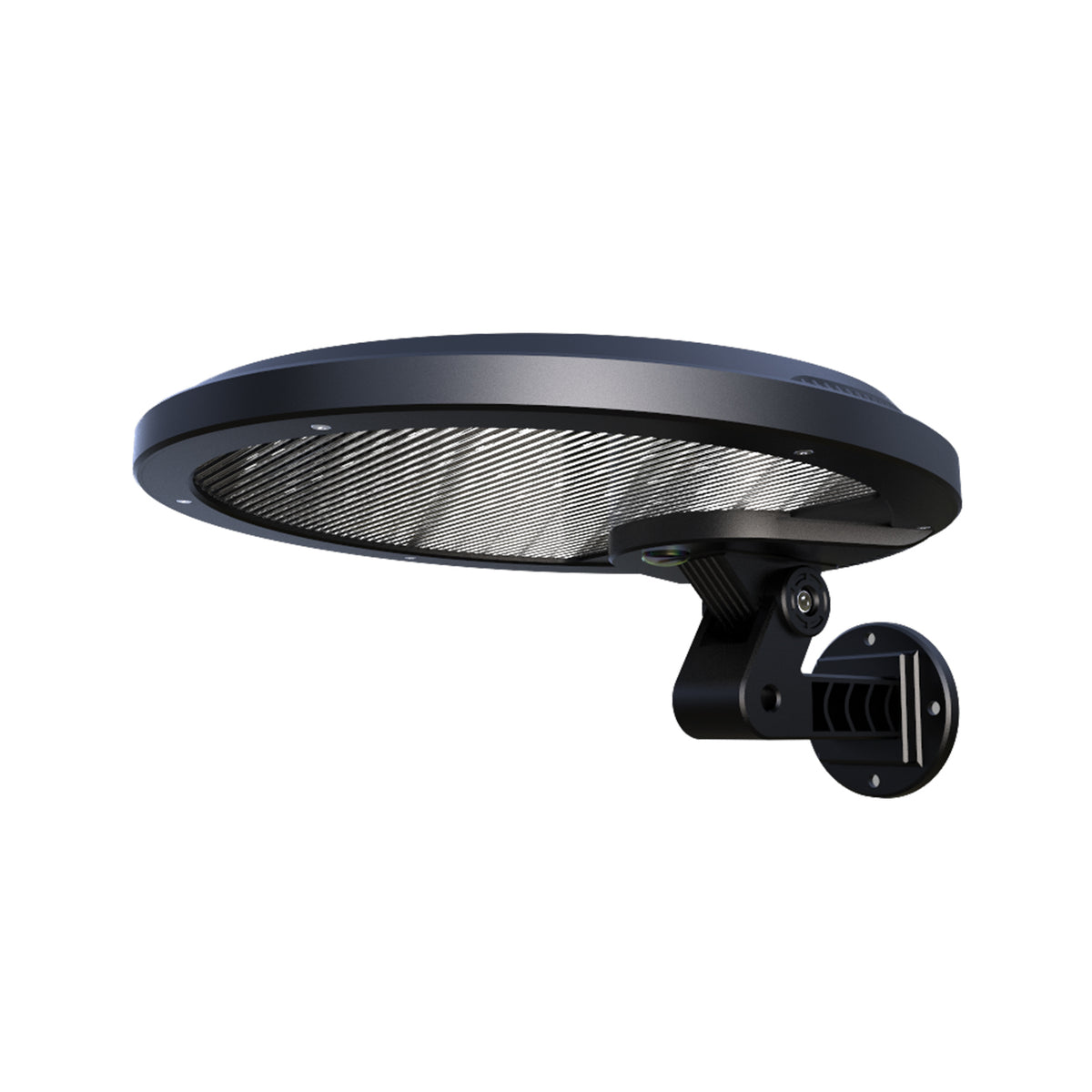

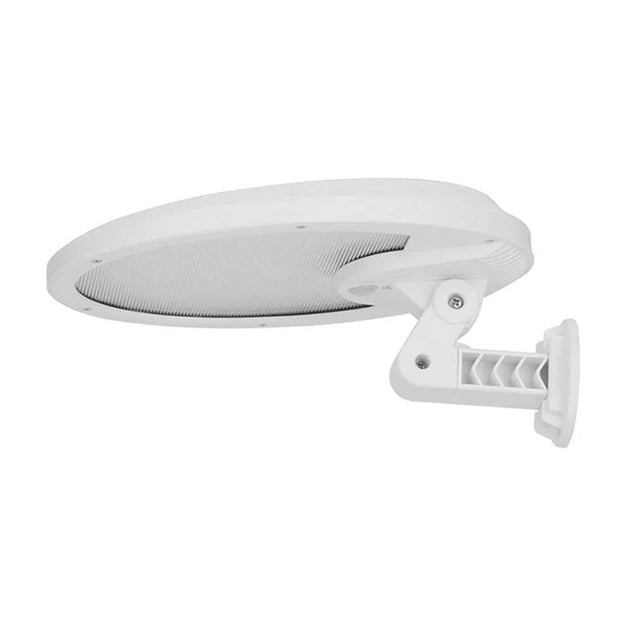

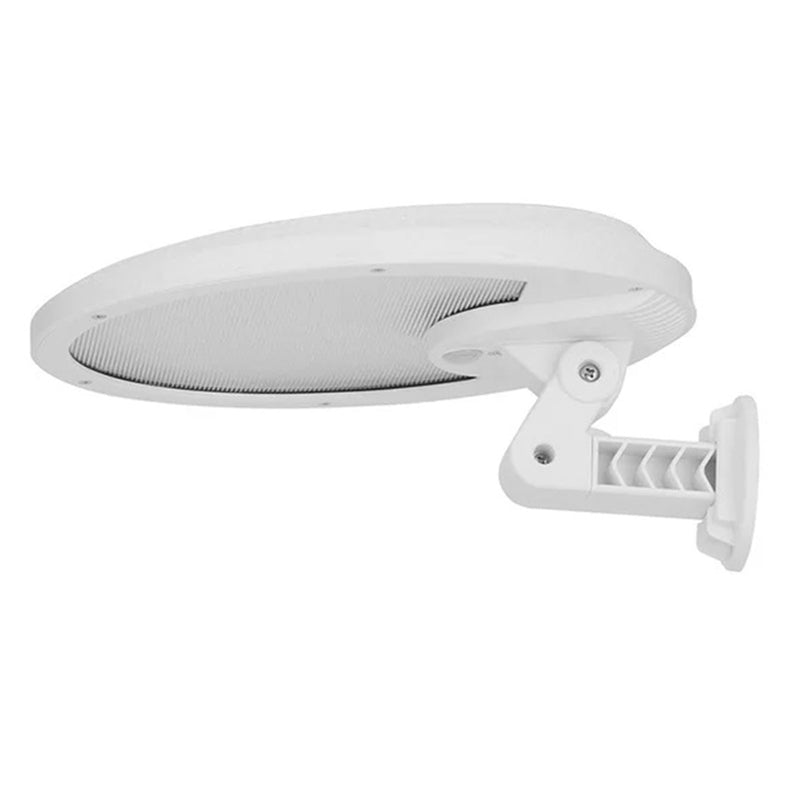

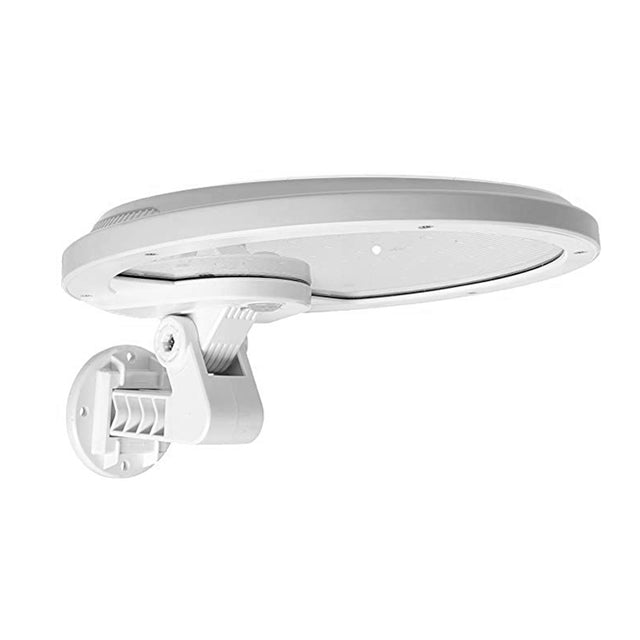

The 500lm model comes in black or white, the 800lm external-panel model in black. Available in 1, 4 and 8 packs — multi-packs cut the per-unit shipping cost.
Key features

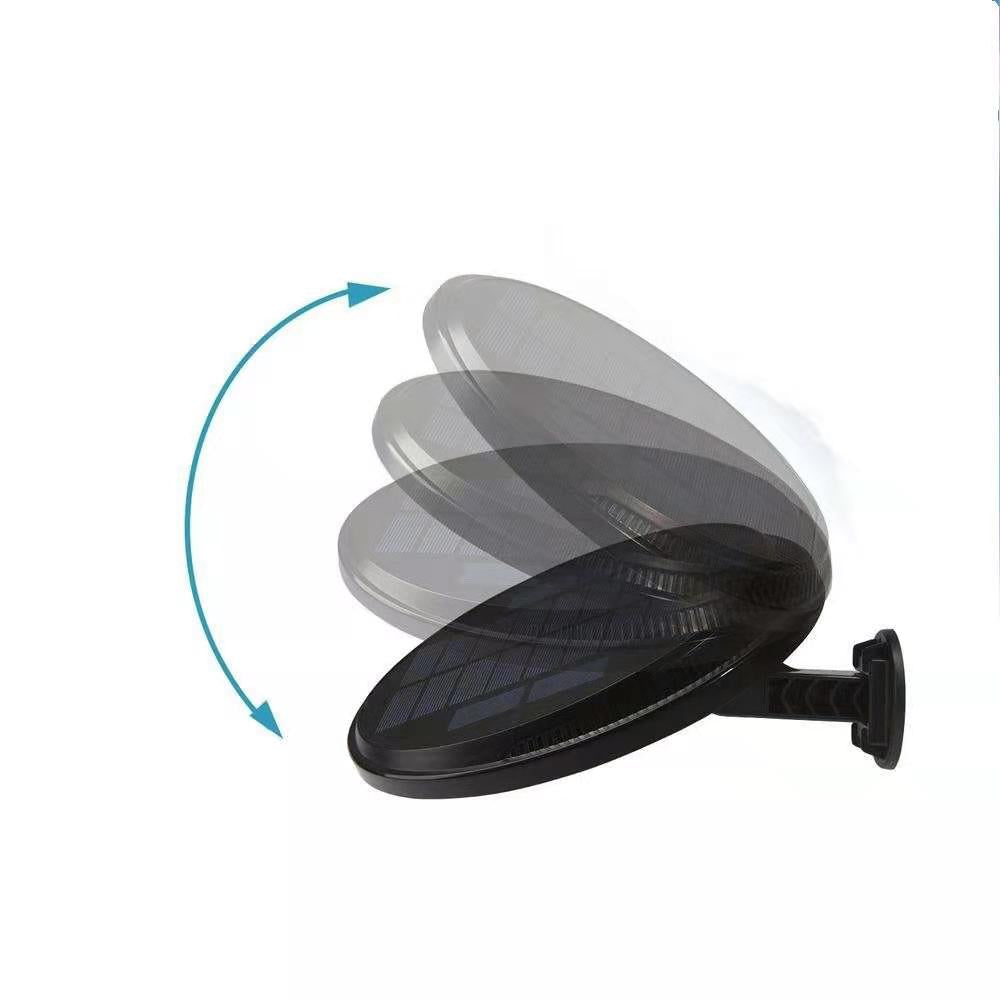

- Rotatable head – aim the beam where it is needed
- 56 LEDs, light sensor + PIR motion sensor
- ABS + PC housing that will not fade, IP65
- Automatic on at night, off during the day
- Wall or cable-tie installation; lamp 228 × 185 × 108 mm
Model comparison
| Specification | EV-WL-103 500lm, built-in 3W panel |
EV-WL-104 800lm, external 3W panel |
|---|---|---|
| Solar panel | 3W PET laminated, built into the lamp | External 3W, 3 m cable |
| LED | 56 × SMD LED, 5W, 500lm, 160 lm/W, 6000–6500K, 50,000h+ | 56 LEDs, 6W, 800lm, 50,000h+ |
| Battery | Li-ion 3.7V 2200mAh | Li-ion 4400mAh |
| Charging | Solar; 6–8 hours in bright sunshine | Solar; 6–8 hours in bright sunshine |
| Lighting time | 3–5 nights after full charge | 3–5 nights after full charge |
| Sensor | Light sensor + PIR motion sensor | Light sensor + PIR motion sensor |
| Lighting mode | Auto on at dusk / off at dawn. On motion: full brightness for 30 s; no motion: 10% dim until dawn | Dual mode: PIR motion sensing or steady light all night |
| Material | ABS + PC | ABS + PC |
| IP rating | IP65 | IP65 |
| Working temperature | -25°C to 60°C | -25°C to 65°C |
| Size | 228 × 185 × 108 mm | 228 × 185 × 108 mm (lamp) |
| Installation height | 2–3 m | – |
| Colours | Black, white | – |
| Colour | – | Black |

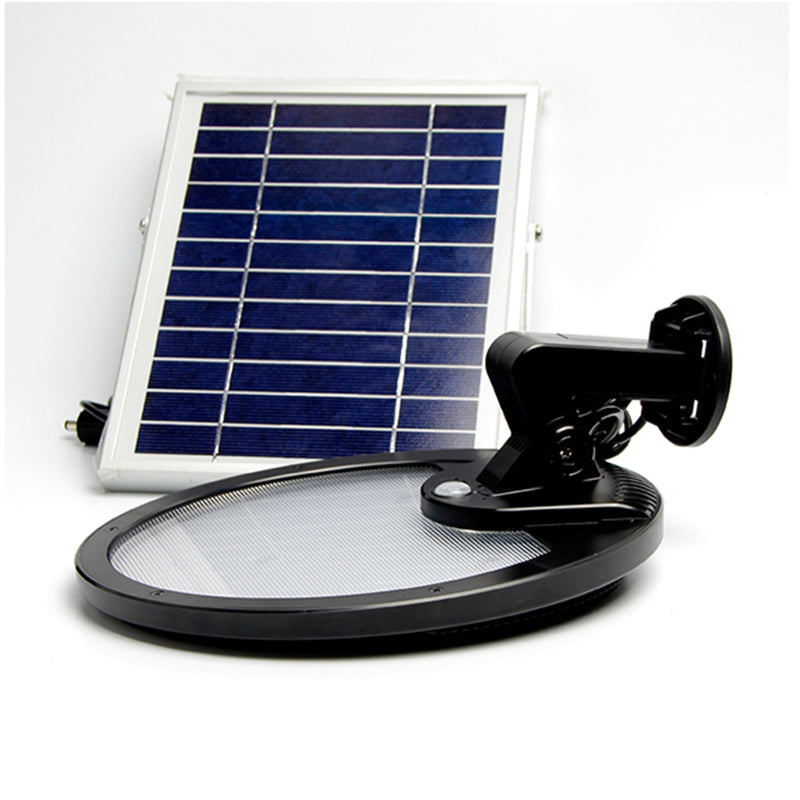

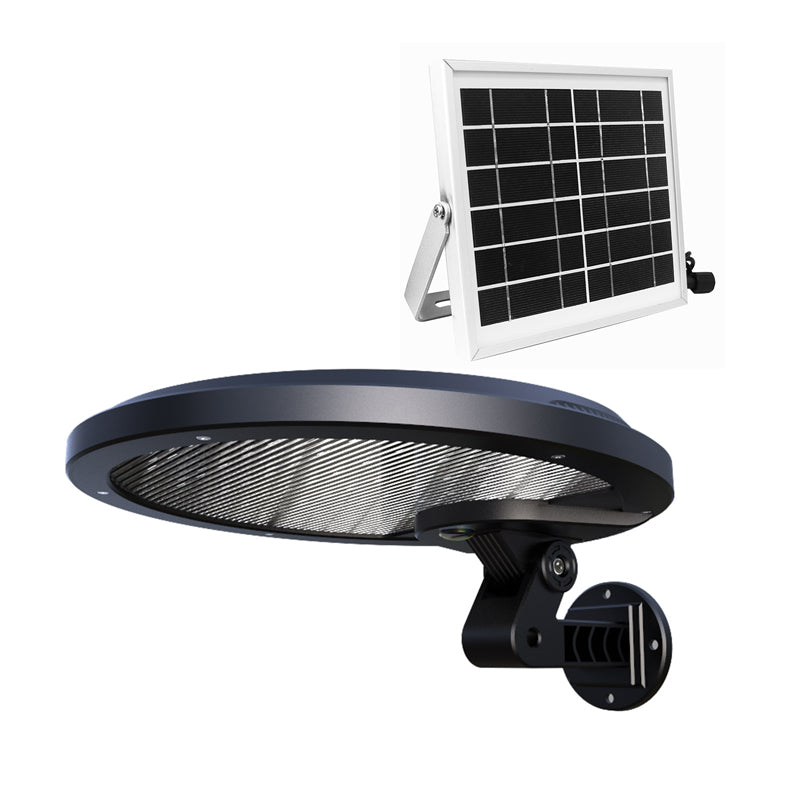

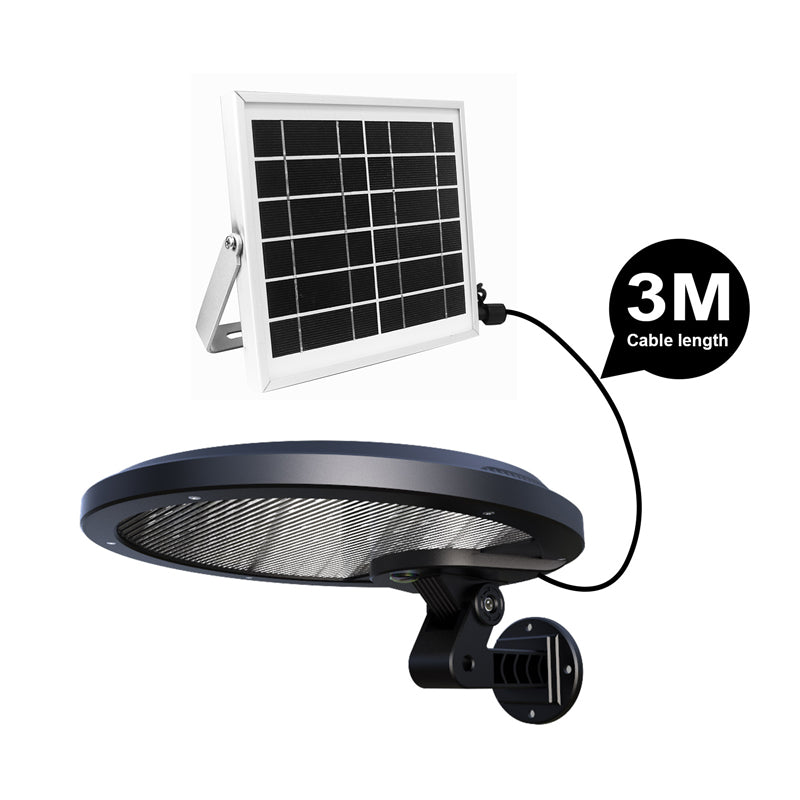

Installing the external-panel model
Mount the lamp where you need light, fix the 3W panel somewhere sunny within 3 metres and connect the cable. Choose PIR mode for security and maximum battery life, or steady mode for constant light through the night.
Both models
| Installation | Wall mounting or cable tie (posts, fences, railings) |
|---|---|
| Certificates | CE, RoHS, FCC; ISO 9001:2015 certified production |
| Warranty | 12 months |
Packaging (EV-WL-103)
Colour box 230 × 230 × 60 mm, 0.65 kg per unit. Master carton 480 × 490 × 490 mm, 28 pcs, 20 kg.
Ideal for
Houses, garages, driveways, gardens, patios, side and back yards, paths, entrances and fences – and, with the external-panel model, shaded porches, under-eave entrances, sheds and carports.
Specifications per EVIEKO technical data.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
