Solar Batten Light 2600lm – 20W Split Panel
Regular price
$124.99
per
Control:
Standard
A 2600-lumen solar batten light for carports, bike shelters and sheds. The 20W monocrystalline panel sits outside on a 5 m waterproof cable while the lamp tube mounts under the roof; a 76.96Wh lithium pack with a 3-bar battery ...
- 100% Green Energy
- Built to Last
- Easy Installation
Stocked items: dispatched in 1–3 business days by tracked express courier – 5–10 business days Australia, 7–15 Europe/UK/US/Canada, 10–25 rest of world.
Project / quote-only items: air or sea freight, lead time stated in your quotation.
30-day change-of-mind returns. Faulty or damaged items replaced or refunded under the Australian Consumer Law.
Project Configuration Presentation for Flawless Installation:
We offer product lists and layout planning support for your projects.
100% SOLAR POWERED
Zero electricity bills and zero wiring. Harness the sun's energy for sustainable, high-performance lighting.
ALL-WEATHER DURABILITY
Engineered with premium IP-rated protection to withstand rain, snow, and extreme outdoor conditions year-round.
SMART ENERGY CONTROL
Advanced built-in sensors automatically manage brightness to maximize battery life and provide light exactly when needed.
EVIEKO TECHNICAL DATASHEET
Solar Batten Light 2600lm – 20W Split Panel
Overview

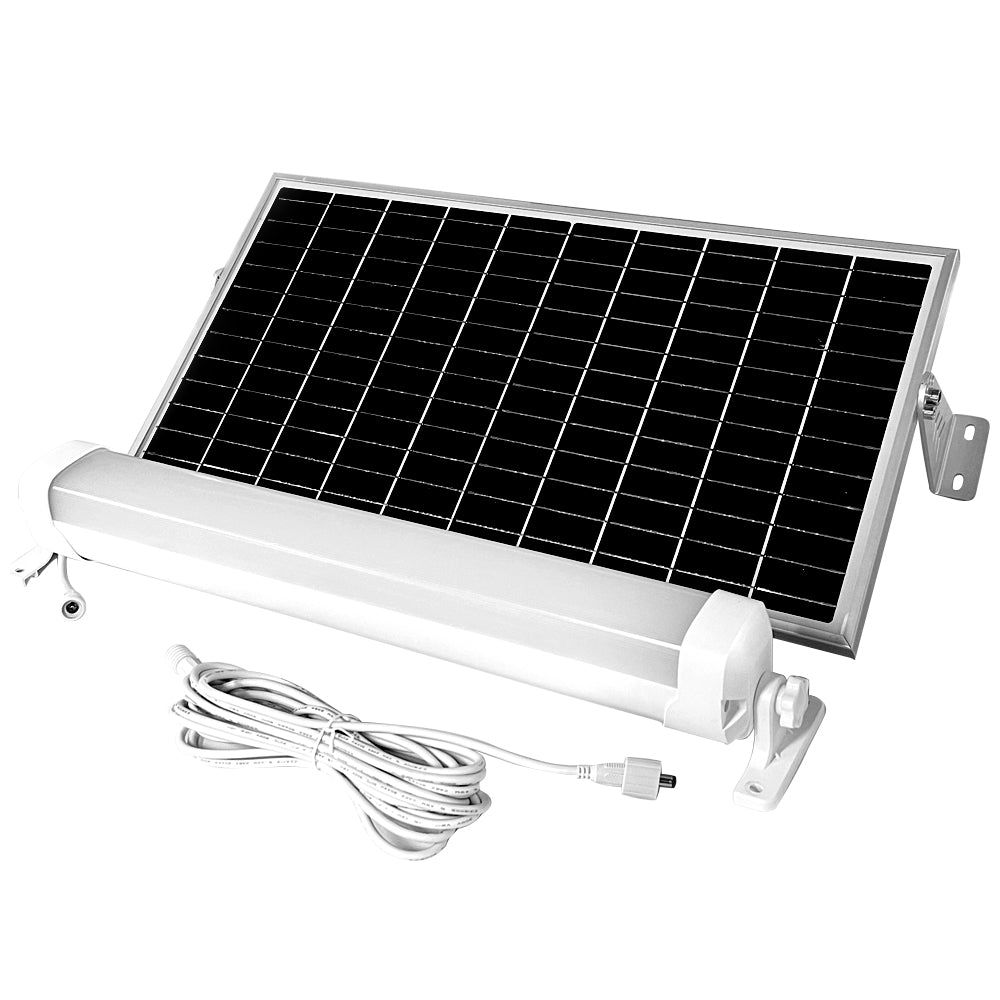

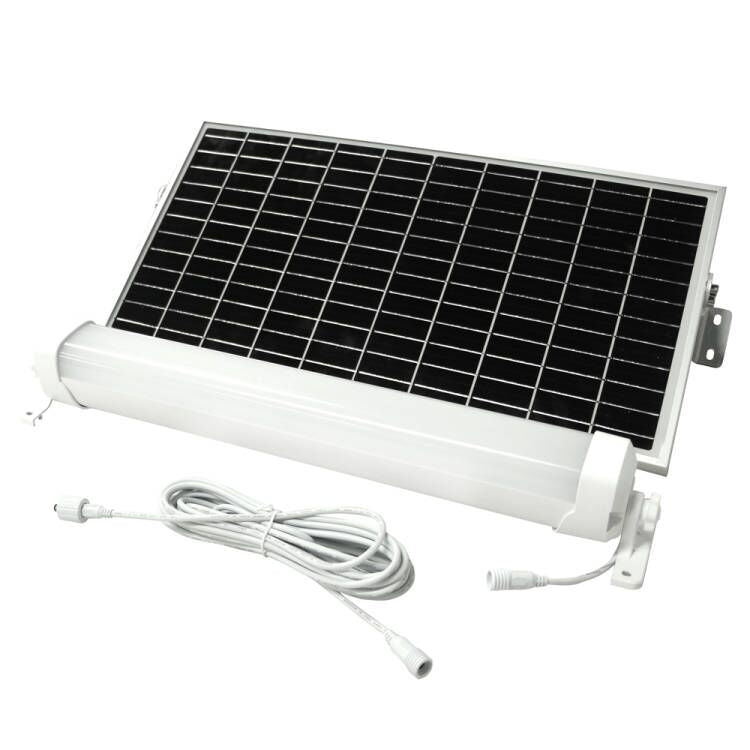

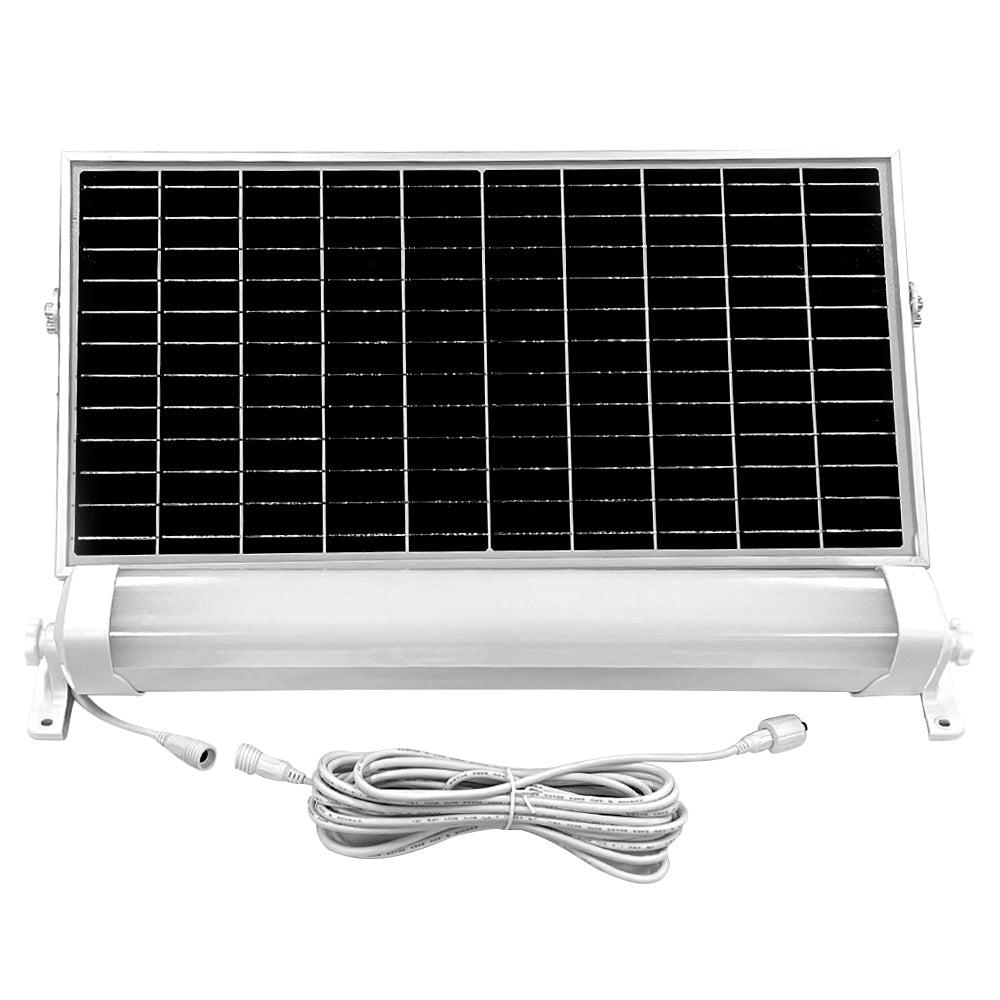

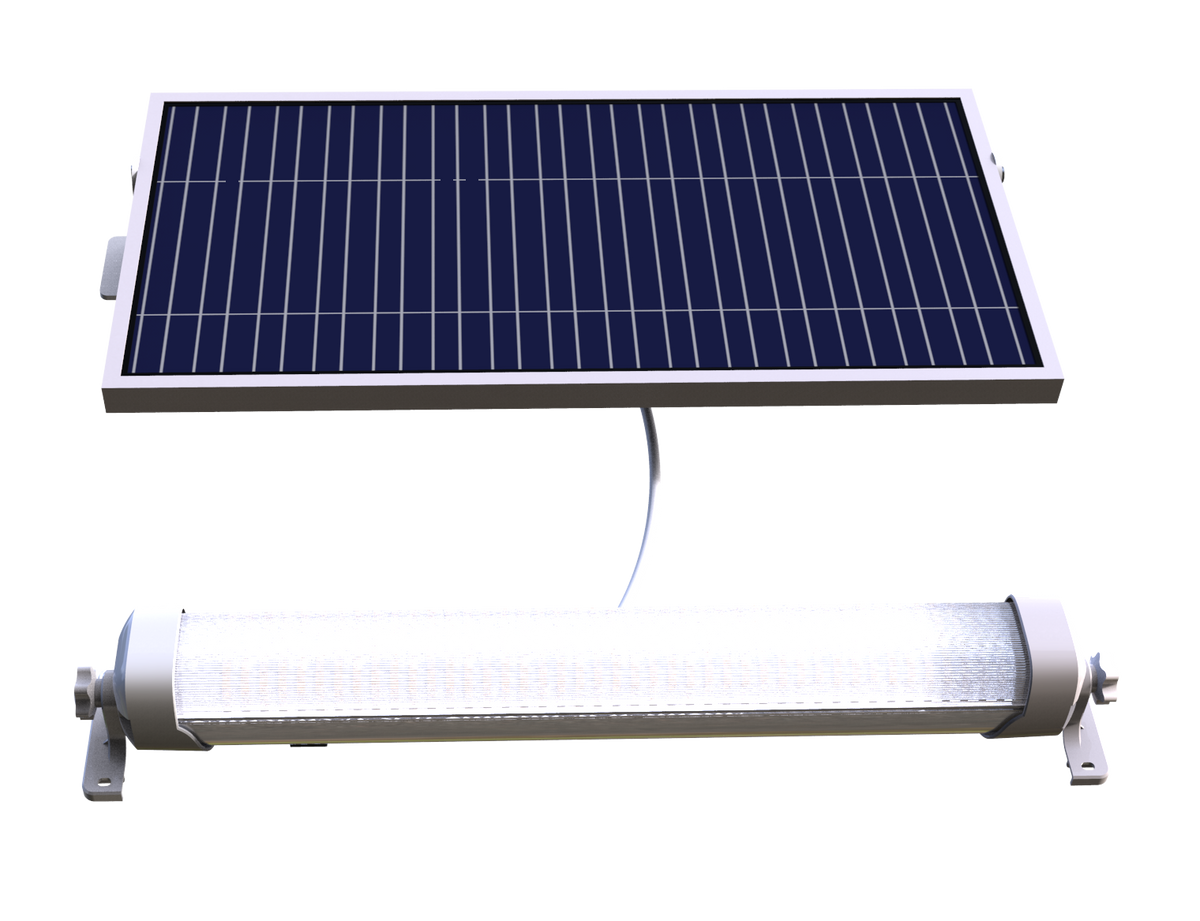

A 2600-lumen solar batten light for carports, bike shelters and sheds. The 20W monocrystalline panel sits outside on a 5 m waterproof cable while the lamp tube mounts under the roof; a 76.96Wh lithium pack with a 3-bar battery indicator runs it 3–5 nights per charge.
Key features
- Adjustable solar panel and lamp head
- External panel with 5 m cable – lamp can be used indoors
- 120° beam angle
- Auto on at dark, off in daytime
- Complete kit: lithium battery, controller and panel; installs in minutes
Specifications
| Solar panel | 20W monocrystalline, tempered glass with aluminium frame, 5 m waterproof cable |
|---|---|
| LED | 112 LEDs, >50,000 h, 2600lm peak; 3000K or 6000K |
| Beam angle | 120° |
| Battery | Lithium-ion pack 76.96Wh |

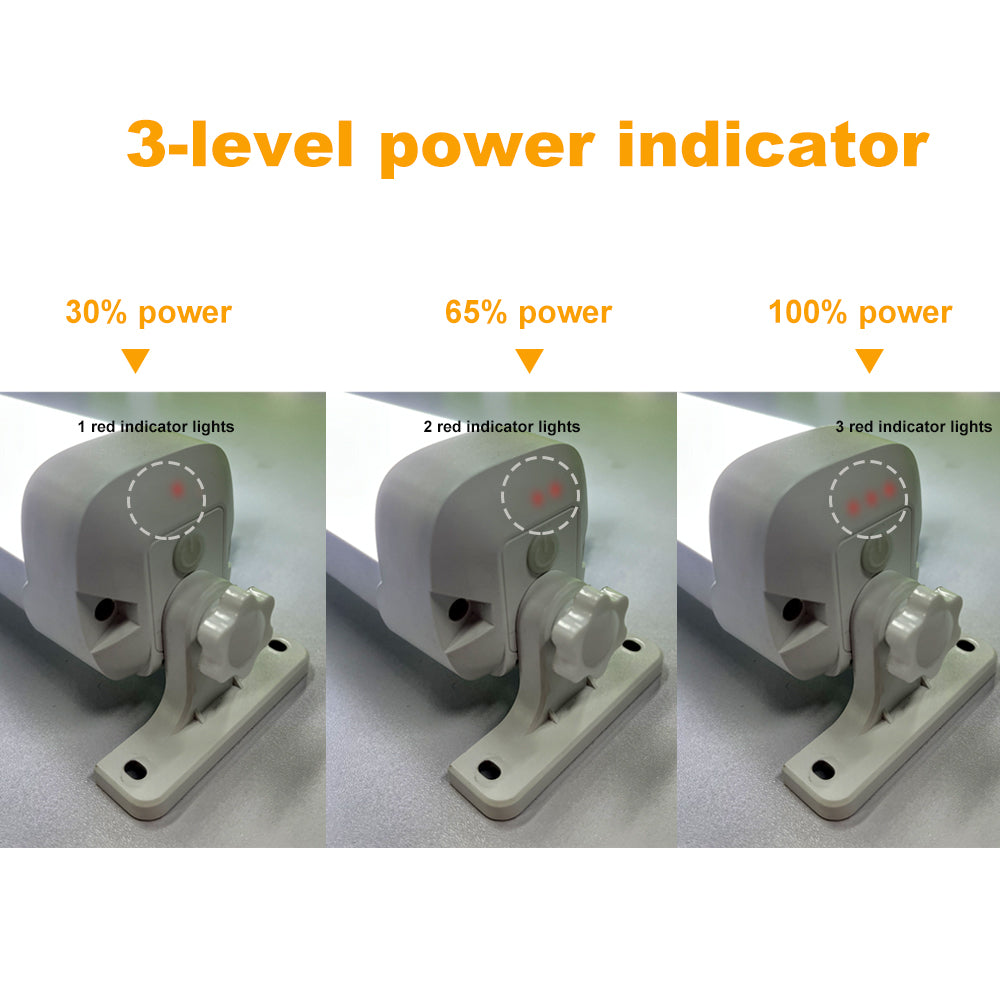

| Battery indicator | 1 bar ≥30%, 2 bars ≥65%, 3 bars 100% |
| Charging time | 6–8 hours in bright sunshine |

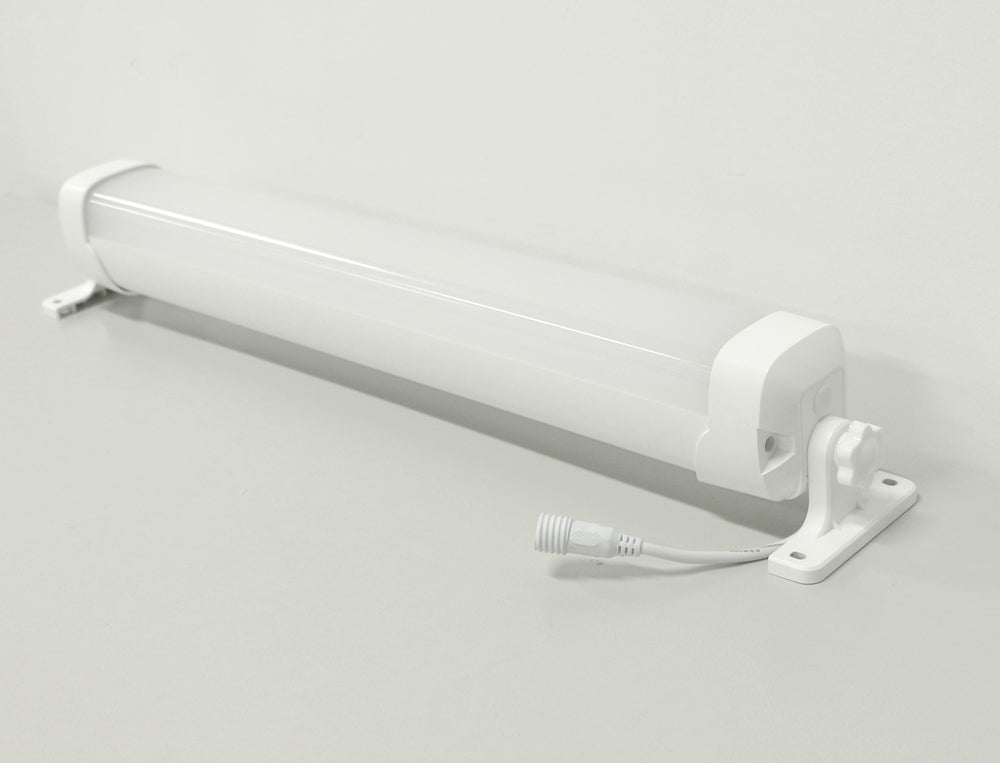

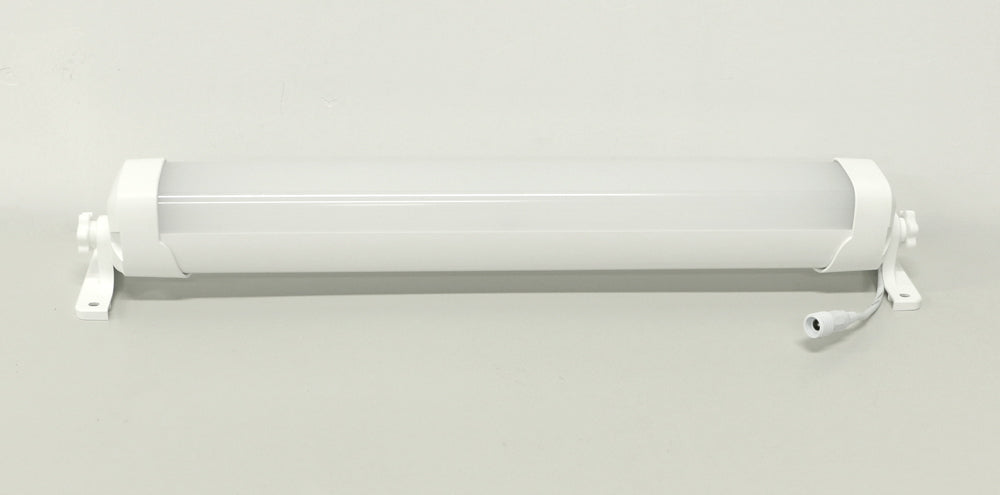

| Lamp tube | PC + ABS, 464 × 70 mm |
| Working temperature | -25°C to 65°C |
| Back-up time | 3–5 nights after full charge |

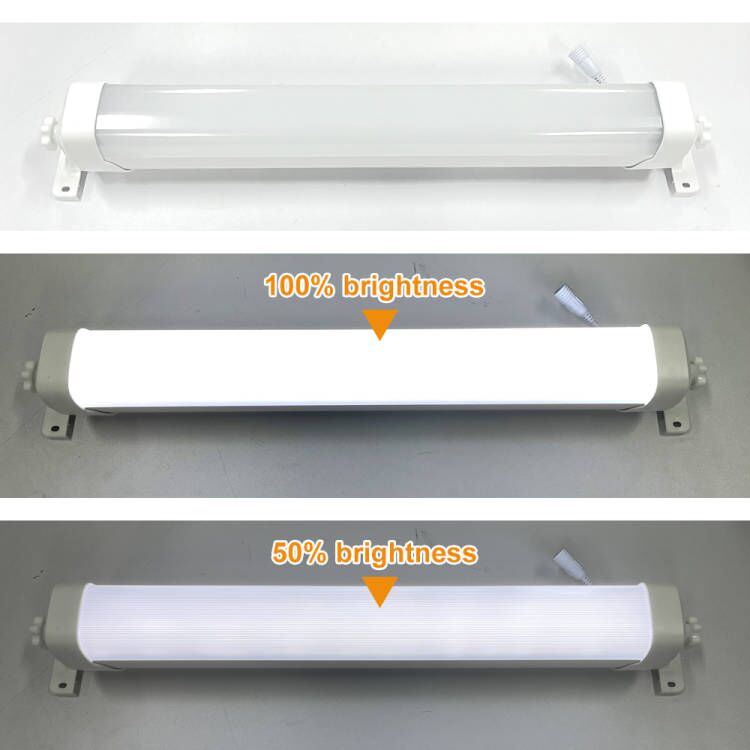

| Working modes | Mode 1: 100% for 5 h, then 50% for 7 h until dawn. Mode 2: 50% for 5 h, then 25% for 7 h until dawn |
| IP rating | IP65 |
| Certificates | CE, RoHS, FCC |
| Warranty | 2 years |
Variants & SKUs
- Standard
EV-HL-102 - With remote
EV-HL-102RC
Packaging
6 pcs per carton, 62 × 51 × 28 cm, 19.2 kg.
Ideal for
Bike and bus shelters, garages, caravans, carports, warehouses, camping and farm tents, walkways, emergency camps.
Specifications taken from the manufacturer's technical datasheet; EVIEKO model EV-HL-102.
Warranty & compliance
Warranty period as stated in the specifications; faulty goods replaced or refunded under the Australian Consumer Law. CE / RoHS; IP rating per specifications. Certificates and photometric (IES) files for this model are supplied with project quotations or on request.
